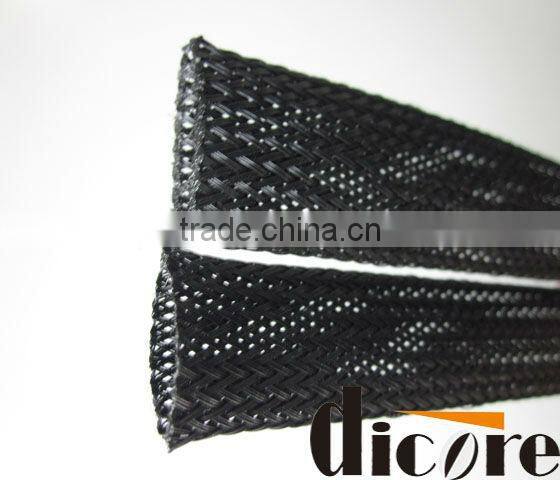

Cable Assemblies Expandable Braided Sleeving
Model |
FPETS |
Material |
PET |
Tubing diameter |
3.2mm to 50mm |
Colors |
Black, Red, Blue, White, Yellow, Green,Clear |
Retains shape & rigidity throughout operating temperature range |
-40 to 125°C |
Melt temp |
250°C |
Approval |
ROHS compliant, UV resistant |
Type |
Flame retardant |
Flame-retardant PET Expandable Braided Sleeving(FPETS) is designed from durable environment friendly PET monofilament yarns and the unique braided construction enables quick and easy installation over large connectors. These sleevings are used in wire harnessing in industries, hose and cable protection for the automotive, heavy equipment and marine industries. And generally commercial applications such as personal computers, automotive, motorcycling, bicycling, flyfishing and scuba diving. | |
Specification:
Size |
Bundle Diameter |
Description |
||
Inch |
mm |
Min. |
Max. |
X * Y * Z |
1/8" |
3.2 |
3/32" |
1/4" |
40*1*0.25 |
1/4" |
6.4 |
1/8" |
7/16" |
32*3*0.20 |
3/8" |
9.5 |
3/16" |
5/8" |
48*3*0.20 |
1/2" |
12.7 |
1/4" |
3/4" |
56*3*0.20 |
3/4" |
19.1 |
1/2" |
1-1/4" |
72*3*0.20 |
1" |
25.4 |
1" |
2" |
96*3*0.20 |
1-1/4" |
29.0 |
3/4" |
1-3/4" |
96*3*0.25 |
1-1/2" |
40.0 |
1" |
2-1/2" |
96*4*0.25 |
1-3/4" |
45.0 |
1-1/4" |
2-3/4" |
120*3*0.25 |
2" |
50.0 |
1-1/2" |
3-1/2" |
120*4*0.25 |
Remarks:
X * Y * Z : “X” means total quantity of the Carriers, “Y” means the quantity of the ends in one carrier, “Z” means the diameter(mm) of the end.
Technical Data
Property |
Test Method |
Typical Value |
Tensile Strength |
ASTM D-876 |
100,000 psi |
Elongation |
ASTM D-876 |
20% |
Specific Gravity |
ASTM D-876 |
1.31 |
Moisture Absorption(24 hours) |
ASTM D-570 |
0.08% |
Max.Operating Temperature |
UL 224 |
125°C |
Melt Temperature |
ASTM D-2117 |
250°C |
Low Temperature Flexibility |
MIL I 23053/5 |
-70°C |
Flexural Modulus |
ASTM D-790 |
400 |
Fungus Resistance |
MIL STD 810 (508) |
No Growth |
Copper Corrosivity |
MIL I 23053 |
No Effect |
