flame retardant braided woven fabric sleeve
- 1000000000 Meter / Meters per Month
- Shenzhen
- Credit Card
- Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
- 3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
- Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
- 4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
- Factory Price Bakelite Decorative HPL Press plates bakelite sheet
- Black G10 Sheet - High Quality Carbon Fiber G10 FR4 Sheets - Precision-made PCB Materials
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Dicore | Model Number: | PETS |
Type: | Insulation Sleeving | Material: | Other, PET, PET | Application: | Other, Low Voltage, Wire Harness |
Rated Voltage: | 600V | Tensile Strength: | 10.4Mpa, 100000psi |
Product Description

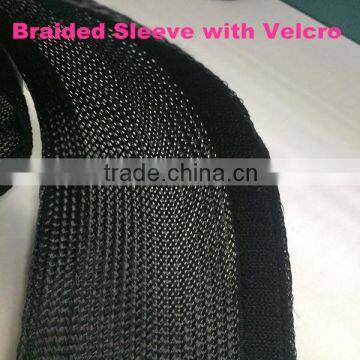

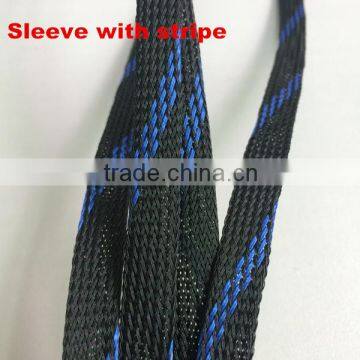

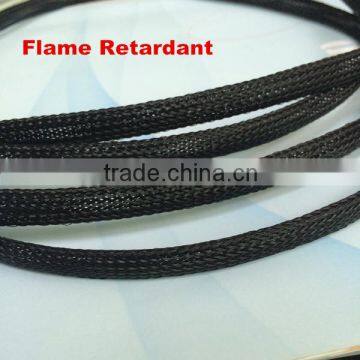

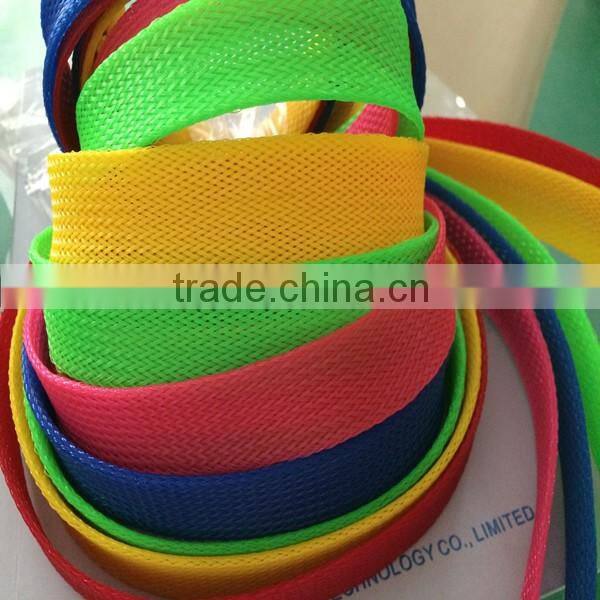

flame retardant braided woven fabric sleeve
Applications:
Flame-retardant PET Expandable Braided Sleeving(FPETS) is designed from durable environment friendly PET monofilament yarns and the unique braided construction enables quick and easy installation over large connectors. These sleevings are used in wire harnessing in industries, hose and cable protection for the automotive, heavy equipment and marine industries. And generally commercial applications such as personal computers, automotive, motorcycling, bicycling, flyfishing and scuba diving.
Features
>Flame-retardant
>Easy, Cost & Labor Effective Installation
>More Flexible Than Split Convoluted or Spiral Wrap
>Cuts easily with hot knife or scissor
>Cut & abrasion resistant
>25% Edge Overlap
>Chemical inert
>ROHS compliant
>UV resistant
>Cost effective wrap around solution
>Retains shape & rigidity throughout operating temperature range
(-40°C to 125°C)
>Melt Temp 230°C
Technical Data
Property | Test Method | Typical Value |
Tensile Strength | ASTM D-876 | 100,000 psi |
Elongation | ASTM D-876 | 20% |
Specific Gravity | ASTM D-876 | 1.31 |
Moisture Absorption(24 hours) | ASTM D-570 | 0.08% |
Max.Operating Temperature | UL 224 | 125°C |
Melt Temperature | ASTM D-2117 | 250°C |
Low Temperature Flexibility | MIL I 23053/5 | -70°C |
Flexural Modulus | ASTM D-790 | 400 |
Fungus Resistance | MIL STD 810 (508) | No Growth |
Copper Corrosivity | MIL I 23053 | No Effect |
Specification:
Size | Bundle Diameter | Description | ||
Inch | mm | Min. | Max. | X * Y * Z |
1/8" | 3.2 | 3/32" | 1/4" | 40*1*0.25 |
1/4" | 6.4 | 1/8" | 7/16" | 32*3*0.20 |
3/8" | 9.5 | 3/16" | 5/8" | 48*3*0.20 |
1/2" | 12.7 | 1/4" | 3/4" | 56*3*0.20 |
3/4" | 19.1 | 1/2" | 1-1/4" | 72*3*0.20 |
1" | 25.4 | 1" | 2" | 96*3*0.20 |
1-1/4" | 29.0 | 3/4" | 1-3/4" | 96*3*0.25 |
1-1/2" | 40.0 | 1" | 2-1/2" | 96*4*0.25 |
1-3/4" | 45.0 | 1-1/4" | 2-3/4" | 120*3*0.25 |
2" | 50.0 | 1-1/2" | 3-1/2" | 120*4*0.25 |
Remarks:
X * Y * Z : “X” means total quantity of the Carriers, “Y” means the quantity of the ends in one carrier, “Z” means the diameter(mm) of the end

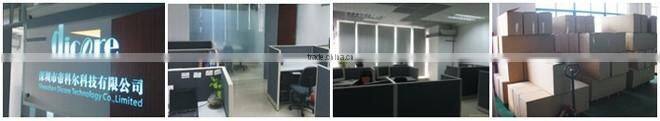

Compay Profile
Dicore is a professional supplier of various heat shrinkable products, including Different kinds of Heat Shrinkable Tubing/Sleevings, Heat Shrinkable Moulded Shapes products from kinds of material like Polyolefin, Silicone Rubber, PTFE, Polyvinylidene Fluoride(PVDF), Fluoroelastomer(Viton),etc. They are widely used in the field of Energy, Electronic, Automotive, Communications, Military, and Building & ship building to provide effective insulation and protection the functional parts, components and systems.

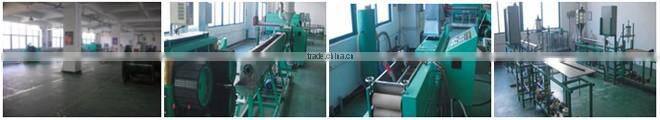

Dicore has been dedicated to this field since 2003 as an exporter and distributor, and set up our own factory and technical engineering team in the year of 2007. All products presented to our clients have already passed our interior strict quality control examination, which enable our clients to easily choose suitable products with exceptional quality.
Dicore draws upon its powerful Technology team, big producing capacity, well-known purchasing ability and close relationship with manufactures to offer full line products with exceptional quality, and bring productivity improvements to our clients. As an One-Stop supplier, we have our special advantages in this field as following:
- One-Stop Supply of Heat Shrinkable Products and Wiring Harness.
- Competitive price and flexible payment terms.
- Abundant stocks and short delivery time.
- Professional exporting experience and best service quality.
