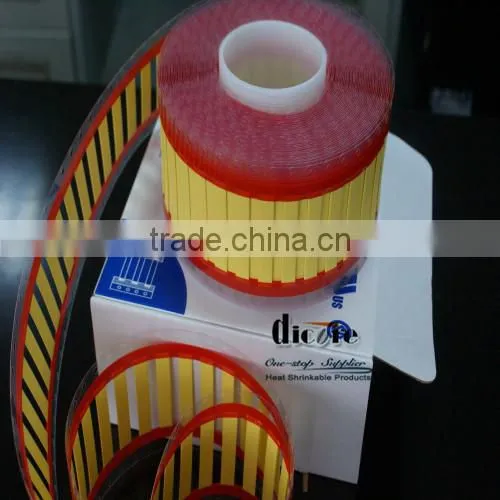

Dicore marine heat shrink tubing /heat shrink identification tubing
Features :
- Permanent identification sleeves
- T type , with kiss-cut
- Computer-printable
- Lightweight for aerospace applications
- Choice of military grade
- Material or halogen free PE material
Marine heat shrink tubing designed to meet the wire and cable marking needs of manifacturers with high performmance requirements .
Heat shrink identification tubing made from permanent ,flame retarded ,radiation cross-linked heat shrinkable polyolefin .
Temperature rating:
>Operating temperature range: –55°C to +125°C –67°F to +257°F
>Minimum recovery temperature: +85°C/ +185°F
>Totally shrink temperature: +115°C/+239°F
>Maximum storage temperature +50°C /+122°F
Specifications :
HSID-2X
| Product Number | Expanded As Supplied(mm) | Recovered After Heating(mm) | |||
| Inside Diameter | Flat Width | Double Wall Thickness | Inside Diameter | Single Wall Thicknes | |
| HSID-2X-1.6 | 2.00±0.20 | 3.7±0.3 | 0.48±0.10 | ≤0.79 | 0.45±0.06 |
| HSID-2X-2.4 | 2.79±0.20 | 5.0±0.3 | 0.48±0.10 | ≤1.18 | 0.49±0.06 |
| HSID-2X-3.2 | 3.64±0.23 | 6.3±0.4 | 0.48±0.10 | ≤1.59 | 0.51±0.06 |
| HSID-2X-4.8 | 5.26±0.25 | 8.9±0.4 | 0.49±0.10 | ≤2.36 | 0.54±0.06 |
| HSID-2X-6.4 | 6.92±0.28 | 11.5±0.4 | 0.50±0.10 | ≤3.18 | 0.56±0.06 |
| HSID-2X-9.5 | 10.2±0.32 | 16.7±0.5 | 0.51±0.11 | ≤4.75 | 0.59±0.06 |
| HSID-2X-12.7 | 13.5±0.36 | 21.8±0.6 | 0.52±0.11 | ≤6.35 | 0.60±0.07 |
| HSID-2X-19.1 | 20.1±0.40 | 32.2±0.6 | 0.53±0.11 | ≤9.53 | 0.62±0.07 |
| HSID-2X-25.4 | 26.7±0.45 | 42.5±0.7 | 0.55±0.12 | ≤12.7 | 0.63±0.07 |
| HSID-2X-38.0 | 39.8±0.51 | 63.2±0.8 | 0.57±0.12 | ≤19.1 | 0.64±0.07 |
| HSID-2X-51.0 | 53.0±0.56 | 83.9±0.9 | 0.58±0.13 | ≤25.4 | 0.64±0.08 |
| HSID-2X-76.0 | 79.4±0.56 | 125.3±1.0 | 0.59±0.13 | ≤38.1 | 0.64±0.09 |
HSID-3X
| Product Number | Expanded As Supplied(mm) | Recovered After Heating(mm) | |||
| Inside Diameter | Flat Width | Double Wall Thickness | Inside Diameter | Single Wall Thickness | |
| HSID-3X-1.6 | 2.00±0.20 | 3.7±0.3 | 0.47±0.10 | ≤0.53 | 0.52±0.06 |
| HSID-3X-2.4 | 2.79±0.20 | 5.0±0.3 | 0.47±0.10 | ≤0.79 | 0.57±0.06 |
| HSID-3X-3.2 | 3.64±0.23 | 6.3±0.4 | 0.48±0.10 | ≤1.06 | 0.61±0.06 |
| HSID-3X-4.8 | 5.26±0.25 | 8.9±0.4 | 0.49±0.10 | ≤1.59 | 0.67±0.06 |
| HSID-3X-6.4 | 6.92±0.28 | 11.5±0.4 | 0.50±0.10 | ≤2.36 | 0.71±0.06 |
| HSID-3X-9.5 | 10.2±0.32 | 16.7±0.5 | 0.52±0.11 | ≤3.18 | 0.77±0.06 |
| HSID-3X-12.7 | 13.5±0.36 | 21.8±0.6 | 0.53±0.11 | ≤4.75 | 0.80±0.07 |
| HSID-3X-19.1 | 20.1±0.40 | 32.2±0.6 | 0.55±0.11 | ≤6.35 | 0.84±0.07 |
| HSID-3X-25.4 | 26.7±0.45 | 42.5±0.7 | 0.56±0.12 | ≤8.47 | 0.86±0.07 |
| HSID-3X-38.0 | 39.8±0.51 | 63.2±0.8 | 0.57±0.12 | ≤12.9 | 0.89±0.07 |
| HSID-3X-51.0 | 53.0±0.56 | 83.9±0.9 | 0.57±0.1 | ≤17.2 | 0.90±0.08 |
| HSID-3X-76.0 | 79.4±0.56 | 125.3±1.0 | 0.57±0.13 | ≤25.8 | 0.92±0.09 |

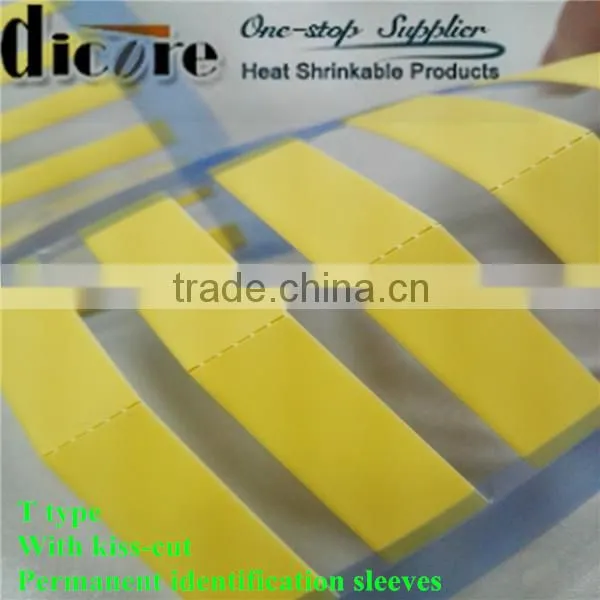

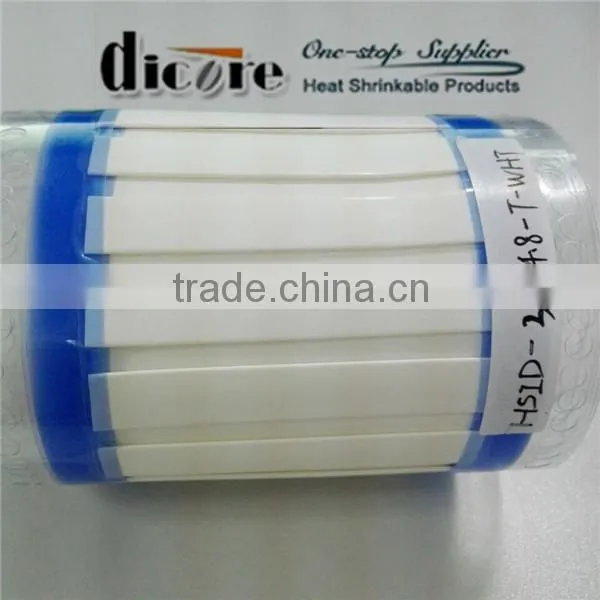

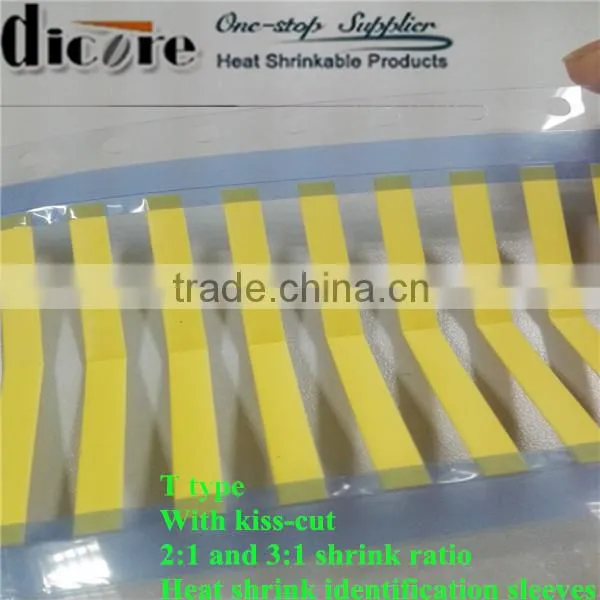

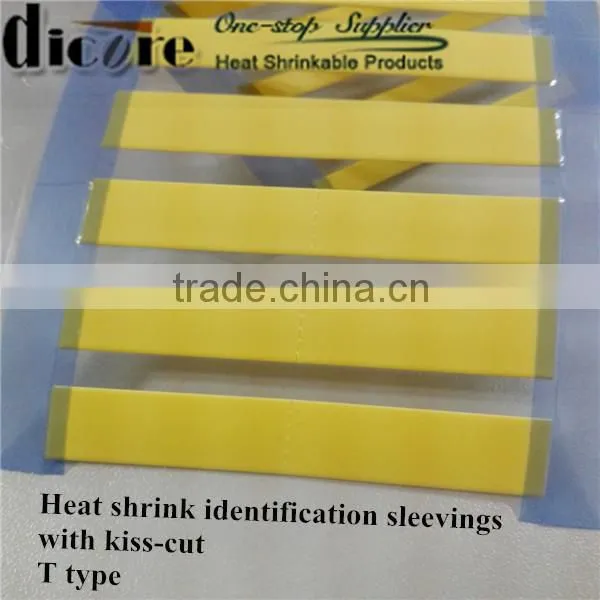

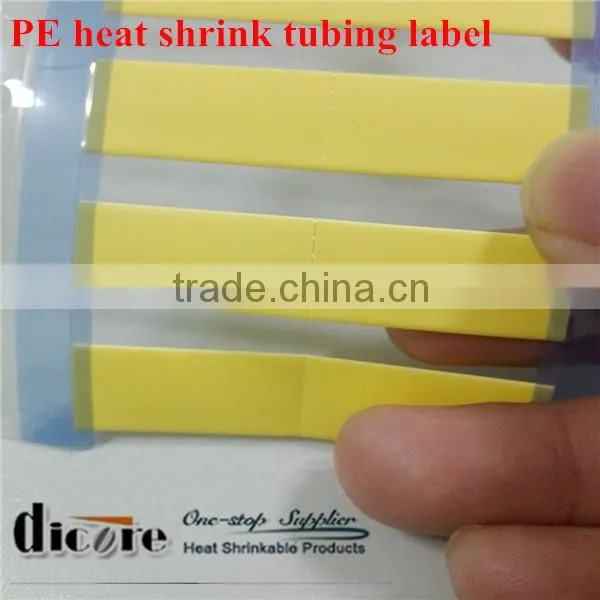

Marine heat shrink tubings label picture show :

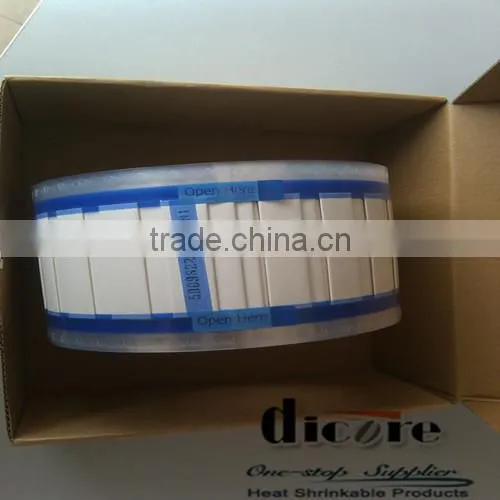

Package :

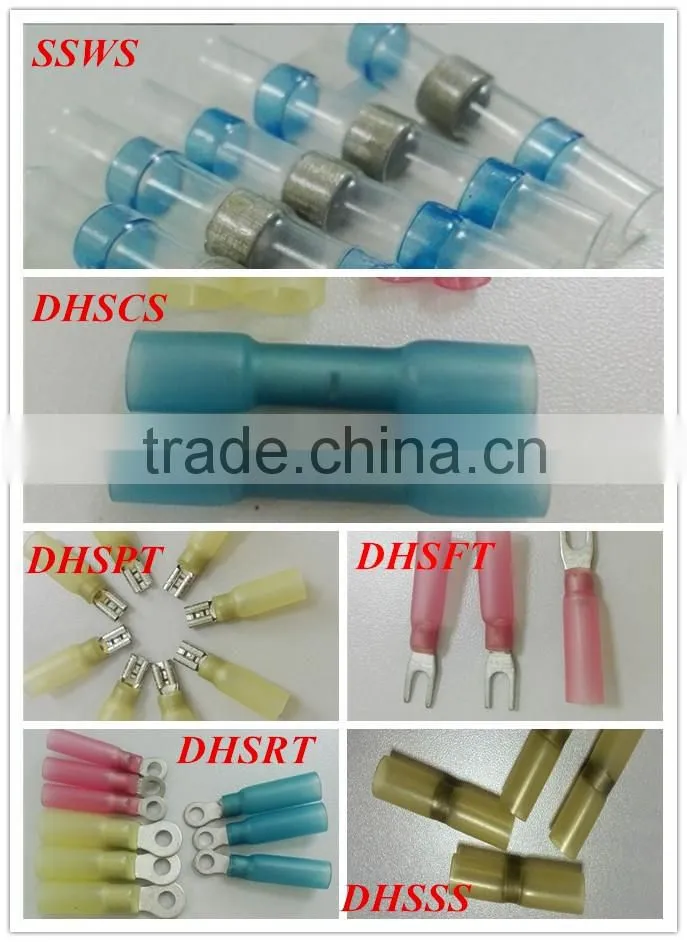

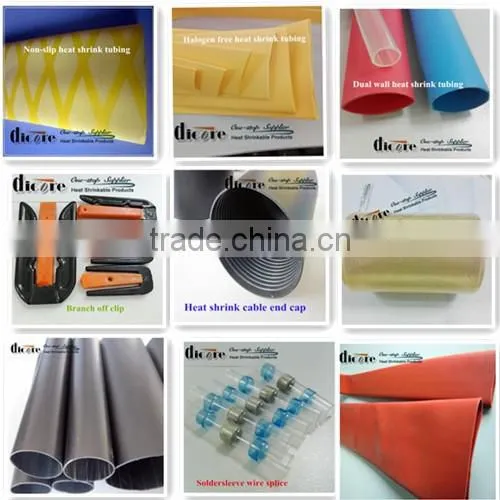

Other products :

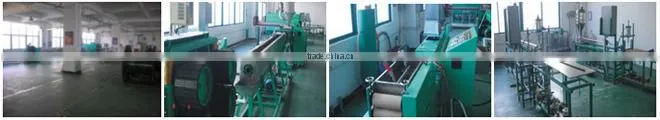

Company Profile
Dicore is a professional supplier of various heat shrinkable products, including Different kinds of Heat Shrinkable Tubing/Sleevings, Heat Shrinkable Moulded Shapes products from kinds of material like Polyolefin, Silicone Rubber, PTFE, Polyvinylidene Fluoride(PVDF), Fluoroelastomer(Viton),etc. They are widely used in the field of Energy, Electronic, Automotive, Communications, Military, and Building&shipbuilding to provide effective insulation and protection the functional parts, components and systems.
Dicore has been dedicated to this field since 2003 as an exporter and distributor, and set up our own factory and technical engineering team in the year of 2007. All products presented to our clients have already passed our interior strict quality control examination, which enable our clients to easily choose suitable products with exceptional quality.
Dicore draws upon its powerful Technology team, big producing capacity, well-known purchasing ability and close relationship with manufactures to offer full line products with exceptional quality, and bring productivity improvements to our clients. As an One-Stop supplier, we have our special advantages in this field as following:
- One-Stop Supply of Heat Shrinkable Products and Wiring Harness.
- Competitive price and flexible payment terms.
- Abundant stocks and short delivery time.
- Professional exporting experience and best service quality.
