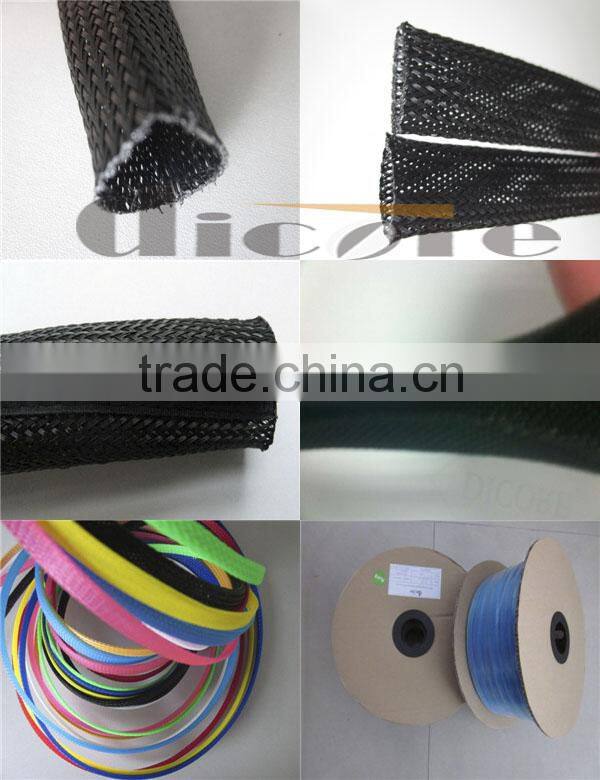

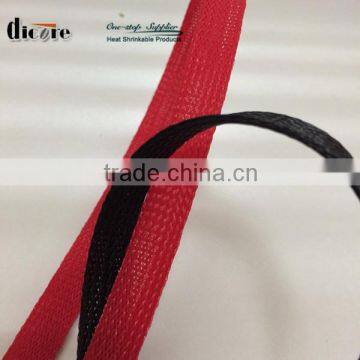

pet colorful expandable braided cable sleeving

Name: pet colorful expandable braided cable sleeving
Brand: DICORE
Availability: InStock

FOB Price

USD $0.001 - $5 / Roll

1 Roll(Min.Order)

Port shenzhen

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	DICORE
Model Number	FPETS	Conductor Material	Other
Insulation Material	Other, PET	Jacket	Other, PET
Number of Conductors	3*3	Application	Construction

Product Description

pet colorful expandable braided cable sleeving

Material	PET
Tubing diameter	3.2mm to 50mm
Colors	Black, Red, Blue, White, Yellow, Green,Clear
Retains shape & rigidity throughout operating temperature range	-40 to 125°C
Melt temp	250°C
Approval	ROHS compliant, UV resistant

Technical Data

Property	Test Method	Typical Value
Tensile Strength	ASTM D-876	100,000 psi
Elongation	ASTM D-876	20%
Specific Gravity	ASTM D-876	1.31
Moisture Absorption(24 hours)	ASTM D-570	0.08%
Max.Operating Temperature	UL 224	125°C
Melt Temperature	ASTM D-2117	250°C
Low Temperature Flexibility	MIL I 23053/5	-70°C
Flexural Modulus	ASTM D-790	400
Fungus Resistance	MIL STD 810 (508)	No Growth
Copper Corrosivity	MIL I 23053	No Effect

Specification:

Size		Bundle Diameter		Description
Inch	mm	Min.	Max.	*X Y * Z**
1/8"	3.2	3/32"	1/4"	4010.25
1/4"	6.4	1/8"	7/16"	3230.20
3/8"	9.5	3/16"	5/8"	4830.20
1/2"	12.7	1/4"	3/4"	5630.20
3/4"	19.1	1/2"	1-1/4"	7230.20
1"	25.4	1"	2"	9630.20
1-1/4"	29.0	3/4"	1-3/4"	9630.25
1-1/2"	40.0	1"	2-1/2"	9640.25
1-3/4"	45.0	1-1/4"	2-3/4"	12030.25
2"	50.0	1-1/2"	3-1/2"	12040.25

Company Profile

Dicore is a professional supplier of various heat shrinkable products, including Different kinds of Heat Shrinkable Tubing/Sleevings, Heat Shrinkable Moulded Shapes products from kinds of material like Polyolefin, Silicone Rubber, PTFE, Polyvinylidene Fluoride(PVDF), Fluoroelastomer(Viton),etc. They are widely used in the field of Energy, Electronic, Automotive, Communications, Military, and Building & ship building to provide effective insulation and protection the functional parts, components and systems.

Dicore has been dedicated to this field since 2003 as an exporter and distributor, and set up our own factory and technical engineering team in the year of 2007. All products presented to our clients have already passed our interior strict quality control examination, which enable our clients to easily choose suitable products with exceptional quality.
