All Seetec Interface Feelworld Camera Monitor With Factory Price

Name: All Seetec Interface Feelworld Camera Monitor With Factory Price
Brand: SEETEC
Availability: InStock

FOB Price

US$ 1 - 138 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Application	Other, with camera
Screen Size	Other, 7"	Response Time	10ms
Brightness	Other, 600cd/m2	Interface Type	HDMI, YPBPR, Other, HDMI, YPBPR, audio video
Contrast Ratio	800:1	Resolution	Other, 1920x1440
Widescreen	Yes	Panel Type	IPS
Pixel Pitch	0.05(H) x 0.15 (V) mm	Brand Name	SEETEC
Model Number	709 (7D)	Place of Origin	Fujian, China

Parameters

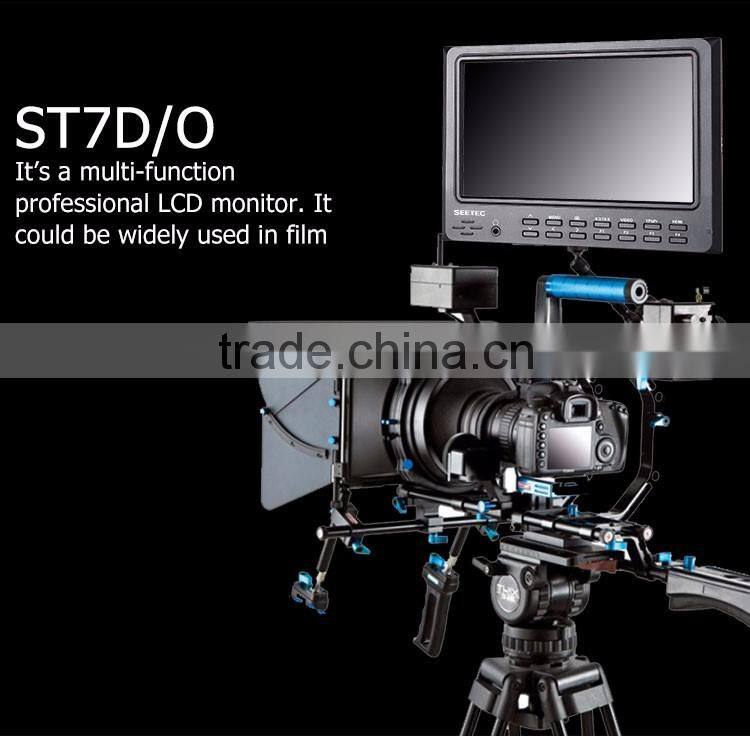

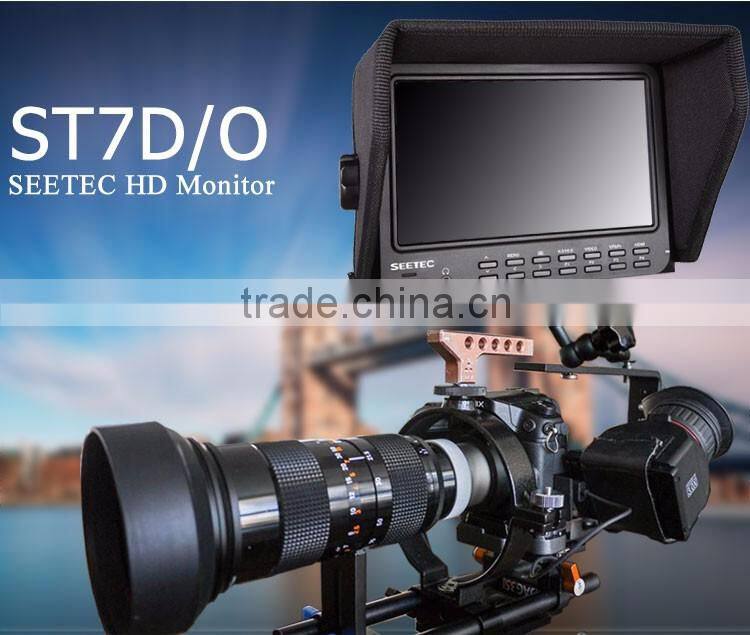

Description	7" On-Camera Field HD Monitor
Model	709 (ST-7D: W/O HDMI output)
Screen size	7"
Panel Type	IPS LCD
Resolution	1024x600 pixels (up to1920×1440)
Dot pitch	0.05(H) x 0.15 (V) mm
Aspect Ratio	16:9
Brightness	600cd//m²
Contrast	800:1
Response time	10ms
Viewing Angle	85°/85°(L/R) 85°/85°(U/D)
Backlight	LED
Inputs	HDMI;Video;YPbPr;Audio
Outputs	HDMI;Video;3.5mm Audio; Built-in Speaker
HDMI Support Mode	480i / 576i / 480p/576p
	1080i (60/59.94/50)
	720p (60/59.94/50/30/29/25/24/23.98)
	1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps)
Power Consumption	≤6W
Input Voltage	DC 7~ 18V
workinging Temperature	-20℃ ~ 55℃
storage Temperature	-30℃~65℃
Install Way	1/4"-20 Thread Socket(All 4 Sides)
Unit Size	188.4L × 134W × 34.2H(mm)
Unit Weight	450g
