5" hdmi dual monitor field for Camera 5D II Mode with F970 Plate ST5D/O

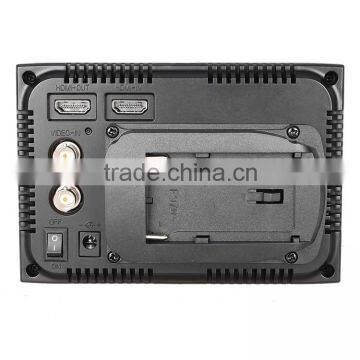

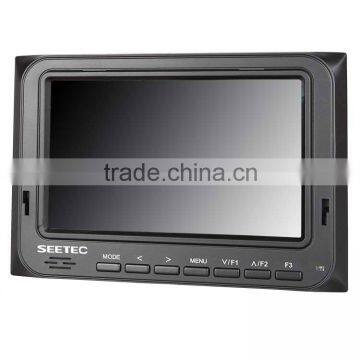

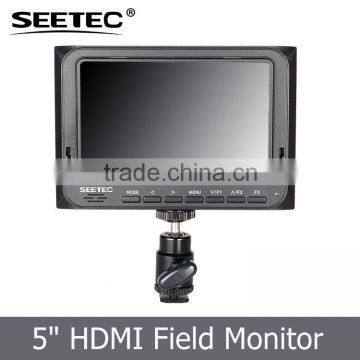

The SEETEC ST5D/O Camera Top Field Monitor F970 Kit provides a light weight 5-inch 800 x 480 LCD monitor with HDMI that is perfect for photographers and videographers looking for a simple, inexpensive monitoring solution. Its small size is perfect for Steadycam, DSLR Rig, Camcorder Kit, Handheld Stabilizer, Video Camera Crane. This unit offers a compostite video input and audio input, along with HDMI in and out. A variety of features include a 3.5mm stereo headphone jack, front speaker for audio monitoring, auto aspect ratio detect, zoom, image flip/ flop and full color adjustment, and battery saver switch. Users also have the ability to power this monitor using a standard F970 battery. This feature allows the monitor to be powered using an existing DSLR battery for mobile on-the-go monitoring.
| Desciption | 5" On-Camera Field HD Monitor | |
| Model | ST5D/O (ST5D W/O HDMI output) | |
| Screen size | 5'' | |
| Dot Resolution | 800x480 pixels (up to1920×1440) | |
| Dot pitch | 0.045(W) × 0.135 (H) mm | |
| Aspect Ratio | 16:9 | |
| Brightness | 350cd/m² | |
| Contrast Ratio | 500:1 | |
| Backlight | LED | |
| Response time | 10ms | |
| Viewing Angle | 70°/70°(L/R) 50°/70°(U/D) | |
| Input Signals | Video,Audio,HDMI | |
| Output Signals | HDMI,Built-in speaker | |
| HDMI Support Format | 480i / 576i / 480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) | |
| Power Consumption | ≤6W | |
| Input Voltage | DC 6V-24V | |
| workingingTemperature | -20℃ ~ 55℃ | |
| storage Temperature | -30℃ ~ 65℃ | |

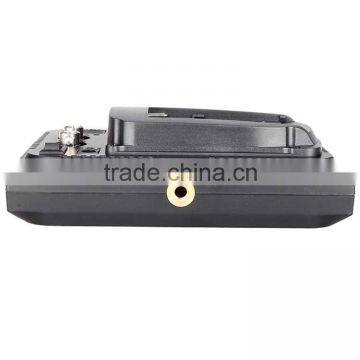

| Install Way | 1/4"-20 Thread Socket(2 sides up&down) | |
| Unit Size | 146L * 100H *29.5D (mm) | |

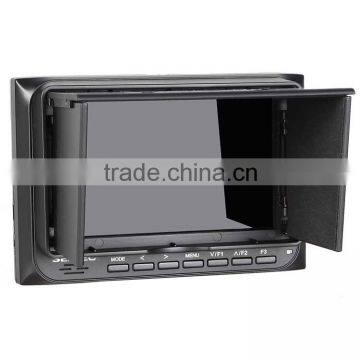

| Unit Weight | 260g/340g(With sun shade) | |
Support Multiple Types of Input
ST56D/O supports Audio/ Video and HDMI signal inputs up to 1080p
Daisy-Chain Live Displays
The ST56D/O has both HDMI in and out plug-ins, allowing it not only display live signals, but also send them out to other monitors simultaneously. It s able to display live picture on multiple displays at once while still maintain the original video quality.
1.Peaking Focus Assist(Red-outline peaking focus based on Mono background)
2.Camera 5D II Mode
3.Check Field: (Red,Green,Blue,Mono)
4.Centre Marker
5.Screen Marker (80%,85%,90%,93%,96%,2.35:1)
6.4:3&16:9 image adjustable
7.Front Earphone Jack
8.Image Flip (U/D,L/R)
9.Pixel-to-Pixel 10.Image Freeze
Gift&neutral box 10 pcs/carton
