5.6" Ultra-High Resolution Ips Panel Hdmi Monitor With F970 Plate ST56D/O
- Xiamen port
- T/T D/P D/A Money Gram Credit Card PayPal
You May Like
-
5" Professional Hdmi Monitor for Camera 5D II Mode With F970 Plate ST5D/O
-
5.6" Ultra-High Resolution 5d ii Monitor On-Camera Field With F970 Plate ST56D/O
-
5" On-Camera Field HD Monitor Hdmi Loop Lcd Monitor With F970 Plate ST5D/O
-
5" On-Camera Field HD Monitor for Camera 5D II Mode With F970 Plate ST5D/O
-
5.6" Ultra-High Resolution Brightness 350cd/m On-Camera Field Monitor With F970 Plate ST56D/O
-
Small 5.5 Inch Lcd Monitor High Resolution 1920X1080 HDMI SDI Input and Output Film Shooting Camera Jib Crane
Product Details
| Products Status | Stock | Application | Other, Field Monitor | |
| Screen Size | Other, 5.6" | Response Time | 30ms | |
| Brightness | 350cd/m | Interface Type | HDMI, Other, HDMI, 3G-SDI | |
| Contrast Ratio | 500:1 | Resolution | Other, 1280*800 pixels (up to1920*1440) | |
| Widescreen | Yes | Panel Type | IPS | |
| Pixel Pitch | 0.045(W) *0.135(H) mm | Brand Name | SEETEC | |
| Model Number | ST56D/O | Place of Origin | Fujian, China |
Product Description

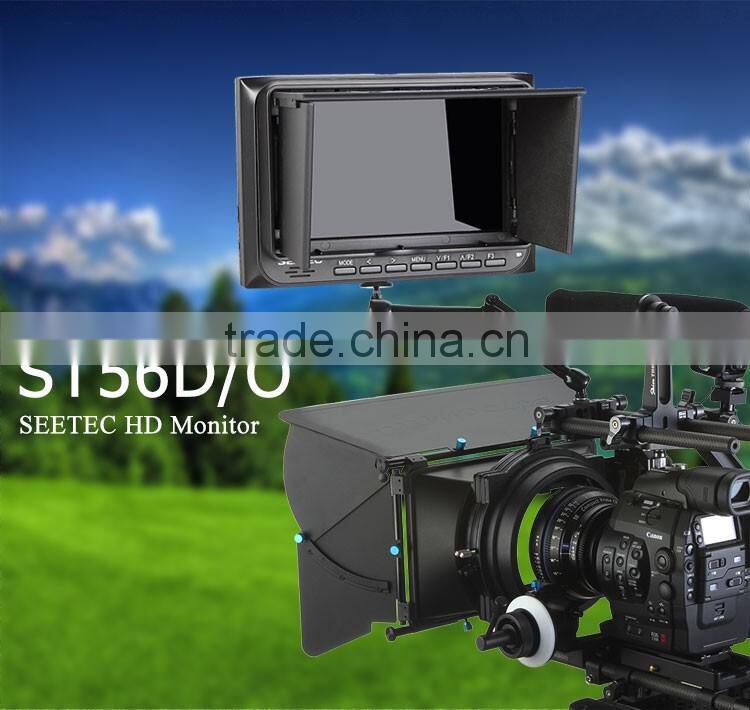

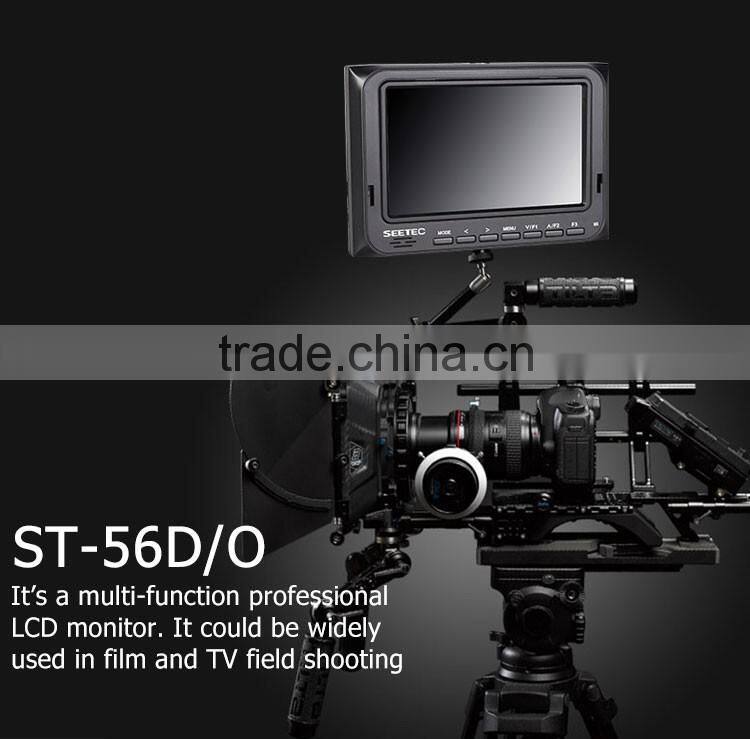

5.6" Ultra-High Resolution ips panel hdmi monitor with F970 Plate ST56D/O
The SEETEC ST56D/O Camera Top Field Monitor F970 Kit provides a lightweight 5.6 inch 1280x800LCD monitor with HDMI that is perfect for photographers and videographers looking for a simple, inexpensive monitoring solution. Its small size is perfect for Steadycam, DSLR Rig, Camcorder Kit, Handheld Stabilizer, Video Camera Crane. This unit offers a compostite video input and audio input, along with HDMI in and out. A variety of features include a 3.5mm stereo headphone jack, front speaker for audio monitoring, Auto Aspect Ratio Detect, Zoom, Image Flip/Flop and full Color Adjustment, and battery saver switch. Users also have the ability to power this monitor using a standard F970 battery. This feature allows the monitor to be powered using an existing DSLR battery for mobile on-the-go monitoring.
| Description | 5.6" Ultra-High Resolution On-Camera Field Monitor | |
| Model | ST56D/O (ST56D:W/O HDMI output) | |
| Screen size | 5.6'' | |
| Resolution | 1280x800 pixels (up to1920×1440) | |
| Aspect Ratio | 16:10 | |
| Brightness | 350cd/m² | |
| Contrast | 500:1 | |
| Backlight | LED | |
| Response time | 30ms | |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) | |
| Inputs | Video,Audio,HDMI | |
| Outputs | HDMI;Built-in Speaker | |
| HDMI Support Format | 480i / 576i / 480p/576p | |
| 1080i (60/59.94/50) | ||
| 720p (60/59.94/50/30/29/25/24/23.98) | ||
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) | ||
| Power Consumption | ≤7W | |
| Input Voltage | DC 6~ 14V | |
| workinging Temperature | -20℃ ~ 50℃ | |
| storage Temperature | -30℃~65℃ | |
| Install Way | 1/4"-20 Thread Socket(2 sides up&down) | |
| Unit Size | 162× 117H ×29D(mm) | |
| Unit Weight | 306g 419g(With sun shade ) | |
Support Multiple Types of Input
ST56D/O supports Audio/ Video and HDMI signal inputs up to 1080p
Daisy-Chain Live Displays
The ST56D/O has both HDMI in and out plug-ins, allowing it not only display live signals, but also send them out to other monitors simultaneously. It s able to display live picture on multiple displays at once while still maintain the original video quality.

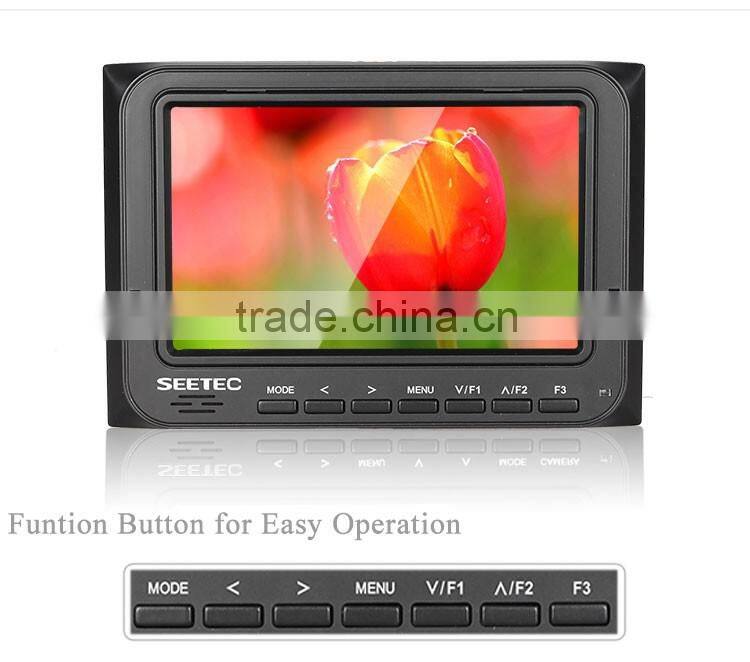

1.Peaking Focus Assist(Red-outline peaking focus based on Mono background)
2.Camera 5D II Mode
3.Check Field: (Red,Green,Blue,Mono)
4.Centre Marker
5.Screen Marker (80%,85%,90%,93%,96%,2.35:1)
6.4:3&16:9 image adjustable
7.Front Earphone Jack
8.Image Flip (U/D,L/R)
9.Pixel-to-Pixel 10.Image Freeze
