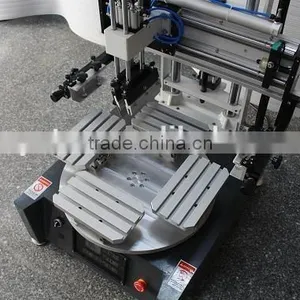

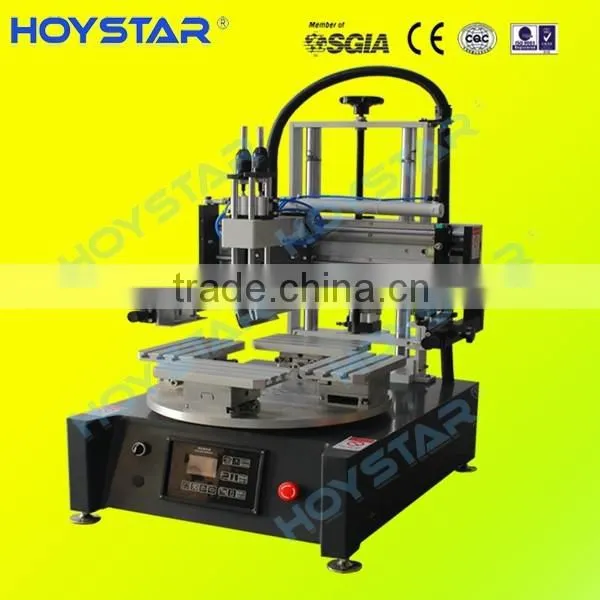

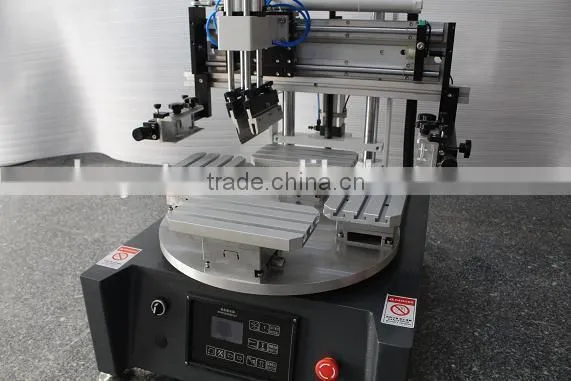

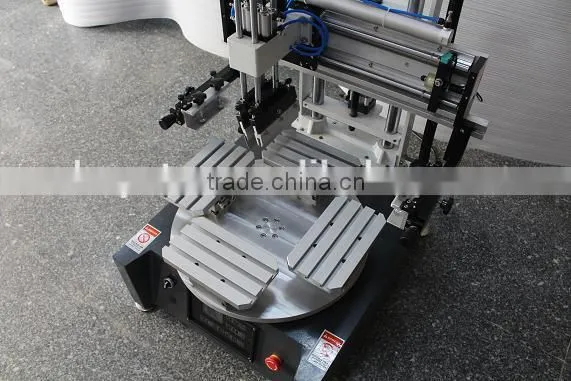

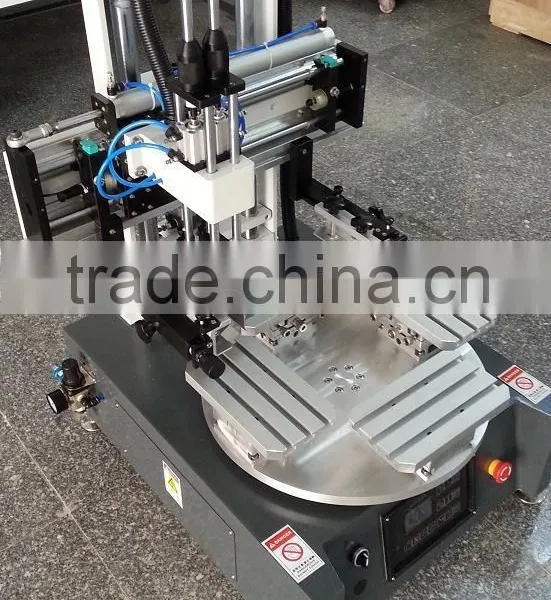

4 station rotary screen printing machine for ruler

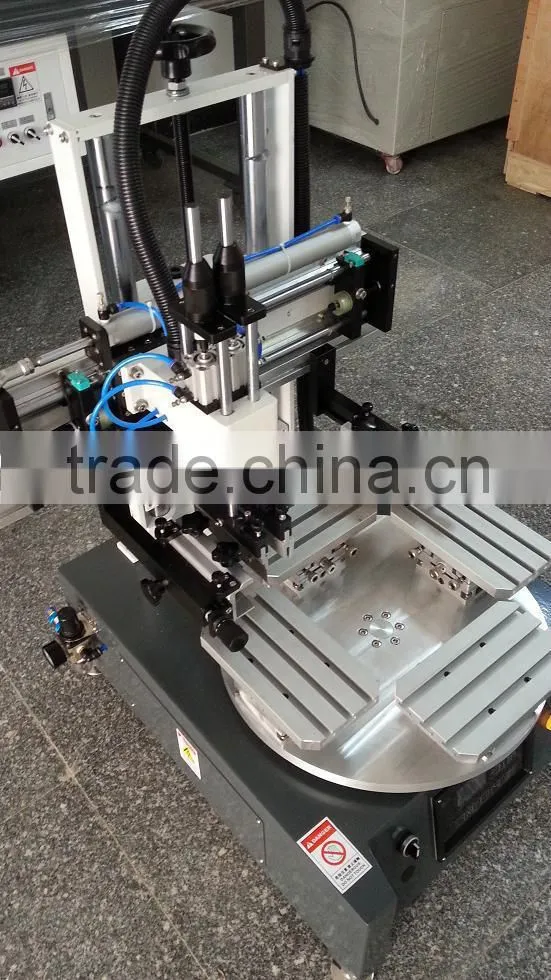

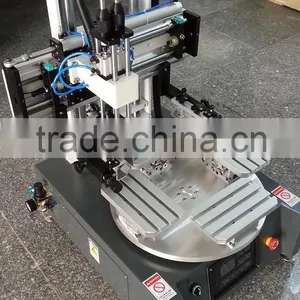

4 station rotary screen printing machine

Application:

The rotary screen printing machine with vacuum table is adopted vacuum genertator to bring strong adsorptive power without noise. It replace manual screen printing, and solve the problems of un-stable printing quanlity, and slow printing speed by manual screen printing. The machine is small with quick speed, stable function, high precice, it can be made up of screen printing production line in small workshop. It’s special suitable for printing logo on the surface of PVC, paper, nameplate and kinds of film.

Function:

1. SCM IC coordinate light touching panel to complile action programming

2. Auto 4-digit counter built-in, counting printing quantity

3. Airframe adopts coin alloy,and metal coating surface

4. Distyle vertical constructure, high precision, steady operation

5. The transeversa stroke can be adjusted, spacing by Taiwan electronic switch

6. The angle of scraper and ink covering blades can be adjusted randomly

7. Installing scraper constant pressure equipment to make sure pressure is steady when printing

8. You can regulate work-table back and forth or right and left, and then fastening it

9. You can regulate screen frame back and forth, right and left or level orientatio

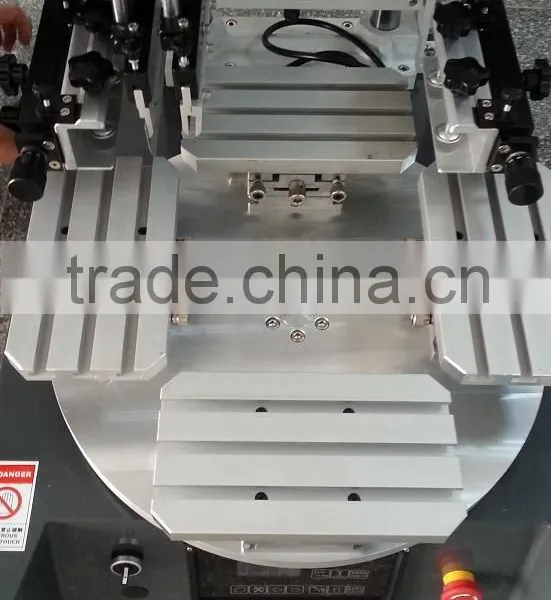

10. Vacuum stainless steel worktable, it can absorb kinds of film products

11. Installing CEC oil buffer on up and down, left and righ to avoid printing shock

12. The machine is running fastly, steably and lower noise.

13. Action model option: fully automatic | semi-automatic | manual

14. Start-up method:panel | foot switche

technology parameter:

1. Scraper pressure controller:by pressure regulating Valve

2. Vertical driving style: pneumatic
3. Transeversa driving style: pneumatic

4. Maxium printing area: 200*300mm,1 station /100*150mm,4 station.

5. Transeversa stroke: 350MM

6. Vertical stroke: 160MM

7. Worktable size: 250*450mm

8. Power:220V/110V

9. Air pressure:5-7Bar

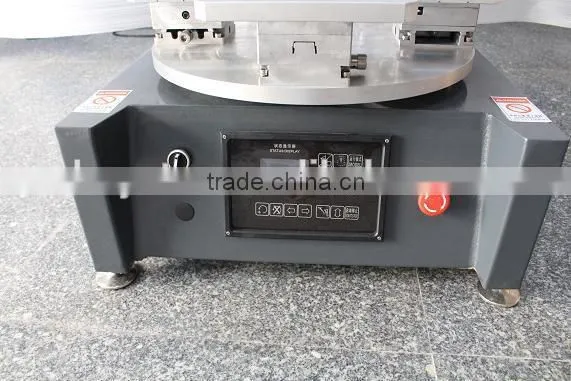

english operation panel

keyboard, fan cover,electric operation cover
