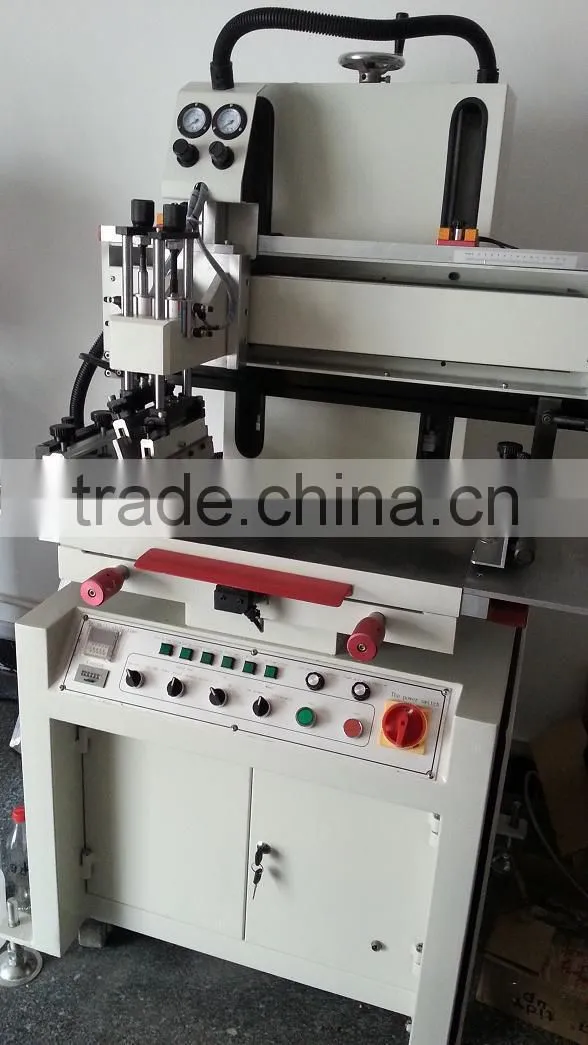

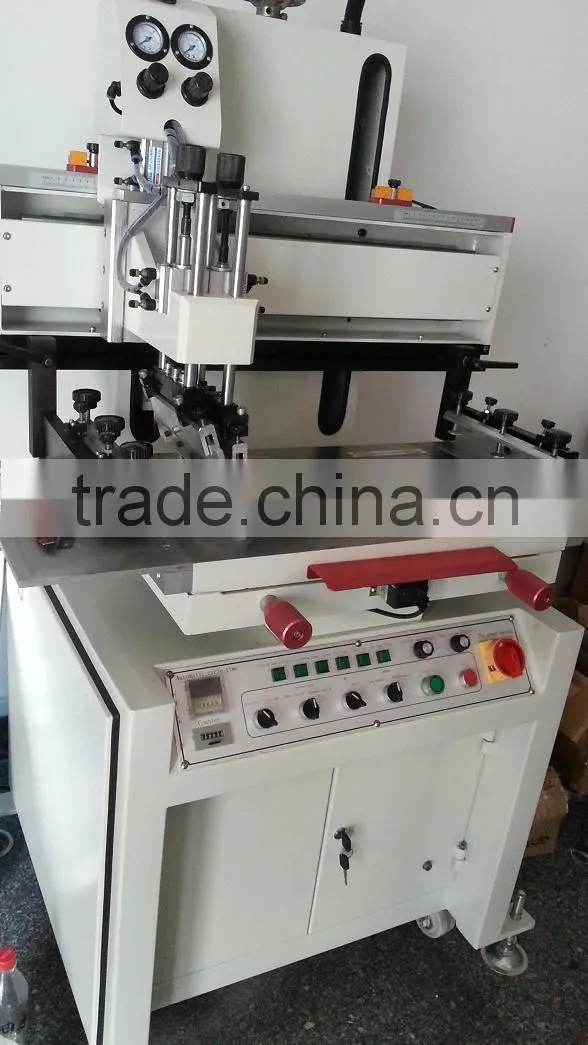

vacuum table screen printing machine
Application:
the 3050 flat silk screen printer is suitable for printing some flat items which size is within 300*500mm,such as paper,PVC sheet,plastic film,textile,keyboard,circuit board ,CD disk,plastic box ,ruler,glass plate etc.
Function:
1. PLC coordinating with soft-touc panel complile action program
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. installing scraper constand pressure, making sure the pressure is steaby when printing.
5. the vertical and transversa orientation of work-table can ajusted and fixed.
6. the position of screen frame can adjust on front/back, left/right and level orientation
7. printing head can be lifted up, that is convenient to take-out/in the screen frame.
8. adpoting ORIGA rodless cylinder to drive transversa slide
9. installing dead-stop button on work-table, avoiding to injury hands
10. up and down parts is adopted precision guide pillar, clearance < 0.05MM
11. installing CEC absorbers, removing printing shake
12. The machine is running fastly,it is steady and low voice.
Technical parameter:
1.Max.printing area:300*500mm
2.Max.printing speed:1000PCS/Hr
3.Power:220V 50-60MHZ | 200W
4.Air pressure:5-7bar
5.Worktable size:400*600mm
piece height:50mm
7.Number of Color: single color
printing sample show
