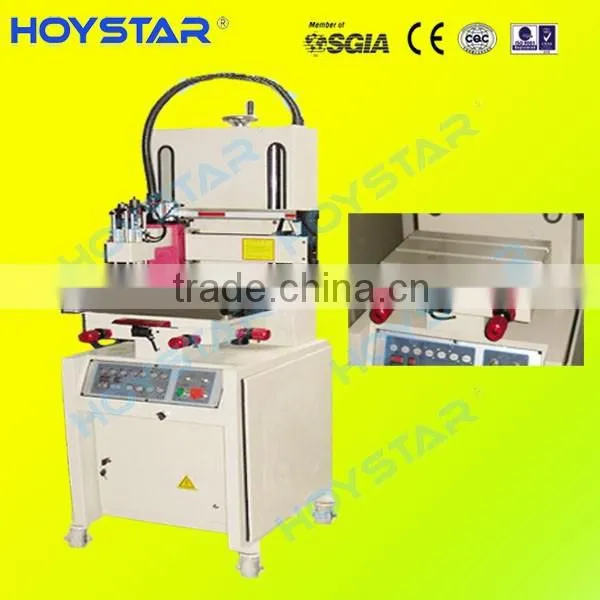

t-slot worktable screen printing machine for plastic cover
Application:
the cheap mini flat screen printing machine is a small size flat screen printer, controlling vertical moving and scraping ink by pneumatic with steady printing and small shaking. It is suitabe for flat products with printing size within 200*300MM, such as paper, PVC film, plastic film, textiles, keyboard, circuit plates, cd, plastic boxes etc.
Function:
1. SCM soft-touch panel compile programms
2. Auto 4-digit counter built-in
3. kinds of printing cycle designed by printing action, you can be free to choose according to your printing craftwork.
4. Airframe adopts coin alloy,and metal coating surface
5. distyle vertical constructure, high precision, steady operation
6. installing scraper constant pressure equipment
to make sure pressure is steady when printing
7. the angle of scraper and reclaim blade can be adjusted randomly
8. you can regulate work-table back and forth or right and left, and then fastening it
9. you can regulate screen frame back and forth, right and left or level orientation
10. printing head can be liftuped, that is convenient to pick-and-place sreen frame
11. adopting Germany ORIGA roldless cylinder to drive transversa moving, TaiWai Ruike electronic switch to drive transversa stroke
12. finished and high-strength hard work-table with even suctionhole and high vacsorb, that can make sure overprinting accuratelly.
13. installing scramming device on work-table, in order to avoid injuring hands
14. installing Taiwan CEC absorbers to removing shaken
15. The machine is running fastly,it is steady and low voice.
Technical parameter:
1.Max.printing area:200*300mm
2.Max.printing speed:1000PCS/Hr
3.Power:220V 50-60MHZ | 200W
4.Air pressure:5-7BAR
-table area: 300*400MM
6.max.sreen frame size: 400*600MM
7.printing workstation: 1PC
8.Worktable:Vacuum worktable
9.Up and down driving moud:pneumatic
10.Left and right driving mode:Pneumatic
