Application:
this machine suitable for printing some flat items which size is within 600*800mm,such as paper,PVC sheet,plastic film,textile,keyboard,circuit PCB board ,CD disk,plastic box ,ruler etc.
Function:
1. controlling machine by PLC programming controller
2. Auto 4-digit counter built-in
3. vertical constructure, the screen frame lift up and down verticaly by electricity, driving transversa stroke of printing head left and right action by imported linear slide
4. printing and screen frame up and down are drived independently
5. controlling printing blade up and down by transducer system, controlling stroke by photocell eye, adjusing independently
6. kinds of printing cycle designed by printing action, you can be free to choose according to your printing craftwork.
7. setting up three types, manual, semi-automatic, fully automatic. When printing is indirect, it will be controlled by digital
8. finished and high-strength hard work-table with even suctionhole and high vacsorb, that can make sure overprinting accuratelly.
9. unique designed machine head up and down equipment, it is convenient to clean scraper, raclaim blade, screen frame
10. double guide pole controlling screen arm, installing the device for adjusting screen distance, regulated conveniently
11. installing scramming device on work-table, it accord with safty standard
Features:
1.up and down,left and right movement adopts variable frequency motor driving
2.it adopts linear guide
3.Printing pressure is controlled by Taiwai cylinder
4.SCM controlled circuit
5.Workatble is vacuum,and low noise
Technical parameter:
1.Max printing table size:940*1100mm
2.Max printing area:600*800mm
3.Printing speed:900imprints/per hour
4.Max screen frame: 1010mm*1070mm
5.Thickness of print:0-20mm
6.Accuracy for printing: 0.05mm
7.Electric supply: 220V/380V,3 phase,3hp
8.Power consumption: 3KW
9.Air required:4-6KG/CM square

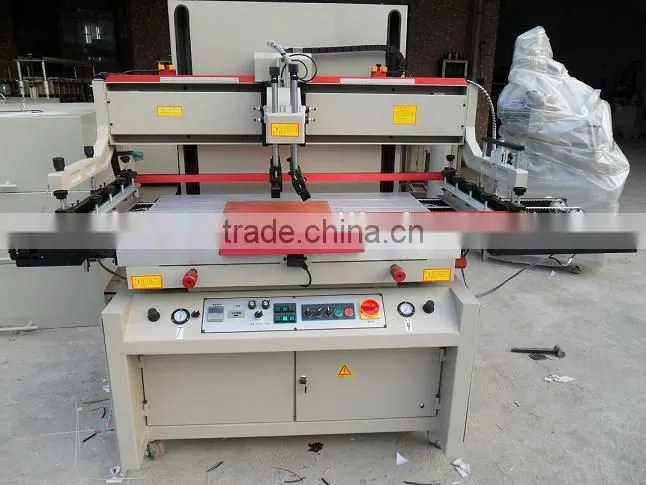

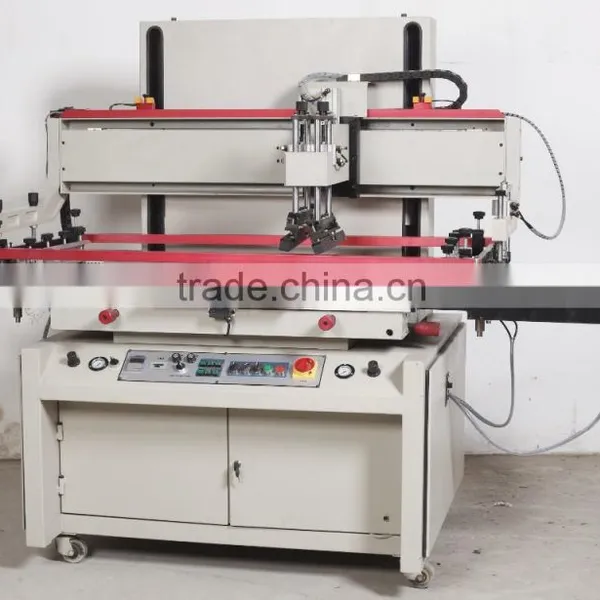

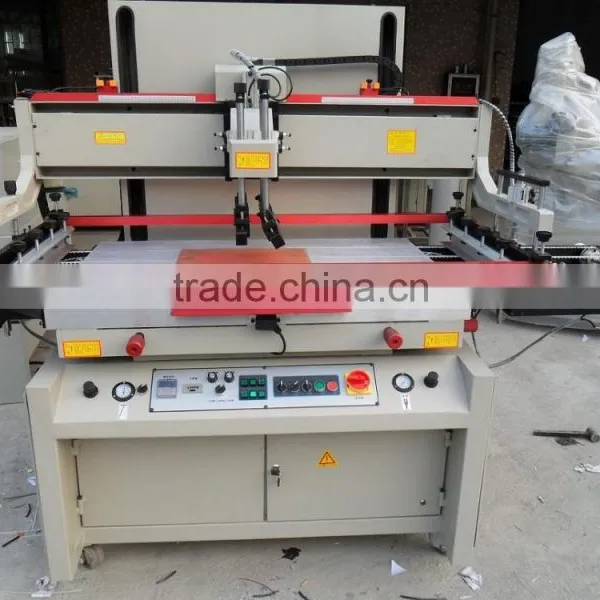

Machine pictures:
