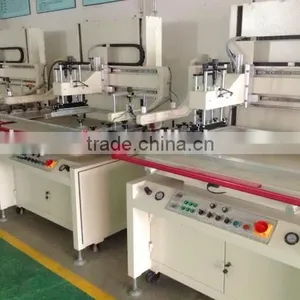

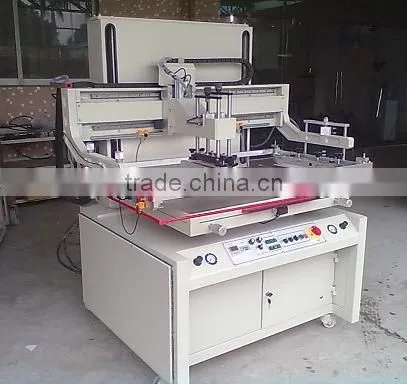

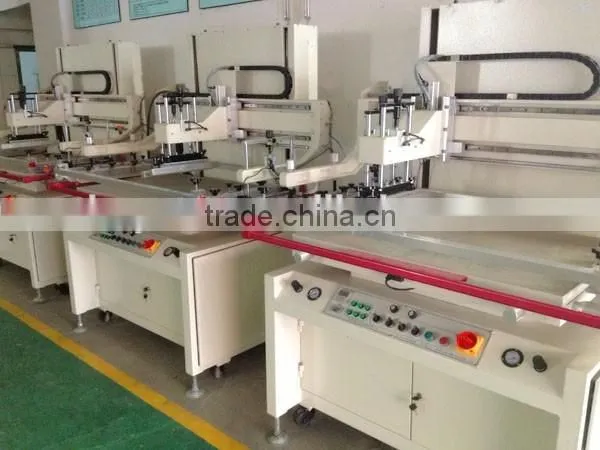

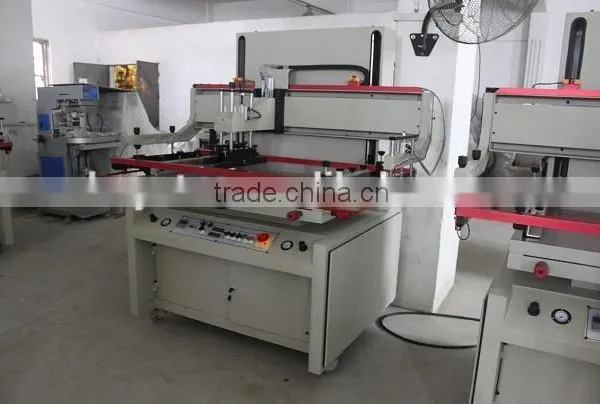

GW-6090 flat bed screen printing machine for flat product

flat bed screen printing machine

Application:

the flat silk screen printing machine is a big size vertical screen printing machine, adopting distyle constructure, double conversion system, operating fastly and steadly. It is suitable for printing PVC, high precision circuit plates, PT board, acrylic board and high precision  screen printing within printing area 600*900mm.

  Function:

1. Controlling machine by PLC  programming controller
2. Auto 4-digit counter built-in
3. Vertical constructure, the screen frame lift up and down verticaly by electricity, driving transversa stroke of printing head left and right action by imported linear slide
4. Printing and screen frame up and down are drived independently
5. Controlling printing blade up and down by transducer system, controlling stroke by photocell eye, adjusing independently
6. Kinds of printing cycle designed by printing action, you can be free to choose according to your printing craftwork.
7. Setting up three types, manual, semi-automatic, fully automatic. When printing is indirect, it will be controlled by digital
8. Finished and high-strength hard work-table with even suctionhole and high vacsorb, that can make sure overprinting accuratelly.
9. Unique designed machine head up and down equipment, it is convenient to clean scraper, raclaim blade, screen frame
10. installing scramming device on work-table, it accord with safty standard.

Technical parameter:

1.Max.printing area:600*900mm

2.Max.printing speed:900PCS/Hr

3.Power:380V/50HZ

4.Air pressure:5-7bar
5.Worktable size:700*1100MM

piece height:0-20mm
7.Number of Color: single color

printing sample show
