LSX Series Spiral Sand Washer for Sale

Specifications

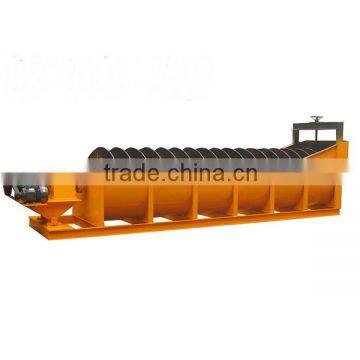

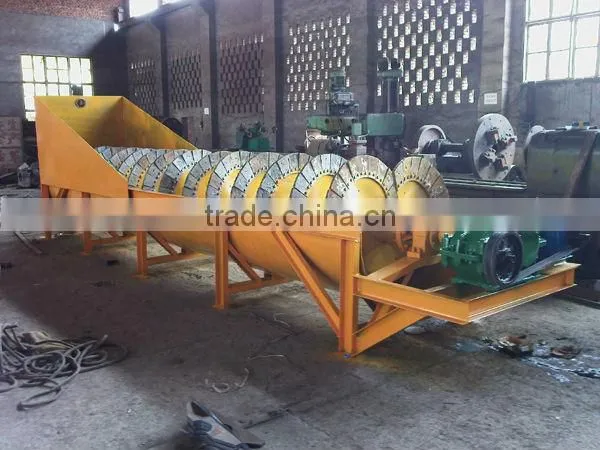

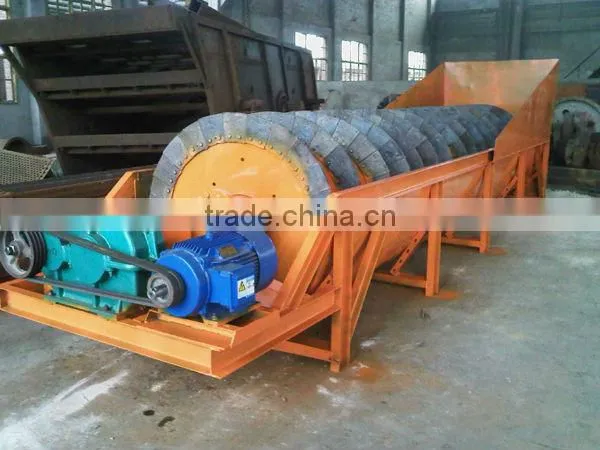

LSX Series Spiral Sand Washer

Brief Introduction of Spiral Sand Washer Machine

LSX Series Spiral Sand Washer features at high capacity, high cleaning, etc. There are two sorts for LSX Series Spiral Sand Washer, that is: single spiral and double spiral, which can be widely used in metallurgy, construction, water and electricity industry.

Working Principle of Spiral Sand Washer Machine

The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.

Characteristics of Spiral Sand Washer Machine

1.Reasonable structure,

2.Large capacity,

3.Low consumption,

4.Little loss of the sand during the washing process,

5.Low failure rate.

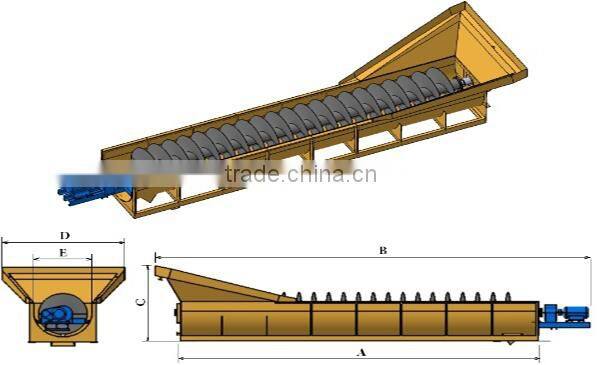

Technical Parameters of Spiral Sand Washer Machine
