Specifications
Spiral Sand Washer Machine1.High efficiency
2.ISO approved
3.Environmentally friendly & durable to use

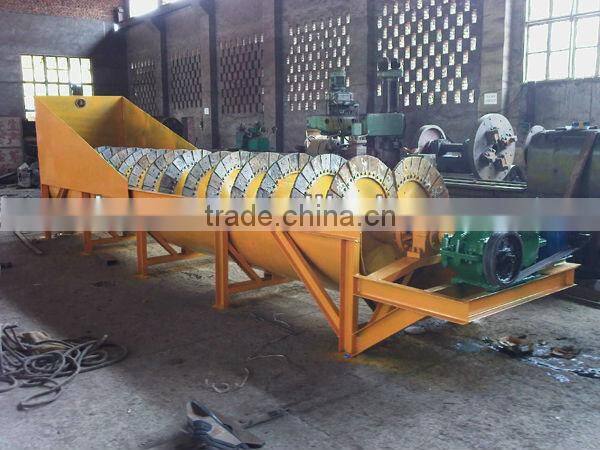

Description of Spiral Sand Washer Machine
LSX Series Spiral Sand Washer Machine features at high capacity, high cleaning, etc. There are two sorts for LSX Series Spiral Sand Washer, that is: single spiral and double spiral, which can be widely used in metallurgy, construction, water and electricity industry.
Working Principle of Spiral Sand Washer Machine
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
Main Technical Parameters
Model | LSX-920 | 2LSX-920 | LSX-1120 | 2LSX-1120 |
Number of Screw | 1 | 2 | 1 | 2 |
Screw Diameter (mm) | 920 | 920 | 1120 | 1120 |
Tub Length (mm) | 7585 | 7585 | 9750 | 9750 |
Feeding Size (mm) | ≤10 | ≤10 | ≤10 | ≤10 |
Capacity (t/h) | 100 | 200 | 175 | 350 |
Screw Speed (r/min) | 21 | 21 | 17 | 17 |
Required Power (kw) | 11 | 11×2 | 18.5 | 18.5×2 |
Water Requirement (t/h) | 10-80 | 20-160 | 20-150 | 40-300 |
Weight (t) | 6.2 | 11.5 | 10.9 | 17.8 |
Brief introduction to Shanghai Donxe Industrial Co.,Ltd
Our company is a high-tech enterprise in Shanghai with ISO9001:2000 certificate. We are a professional manufacturer of mining crushers, industrial grinding mills and screening machines. We manufacture a wide range of stone and rock crushing machines, such as jaw crushers, shaft impact crushers, cone crushers, hummer crushers, sand makers and stone crushing line parts such as stone crushing feeders, rock crushing feeders and belt conveyors. We have formed a complete production chain.In recent years our company focus on all kinds of mineral processing engineering, and achieved a series of achievements, help many foreign buyers to establish a mineral processing production line.We have become a major manufacturer and exporter in China. We are looking forward to your inquiry and prepare to offer you best services and products at any time.
If you are interested in any product and need more detailed information,just contact me.
