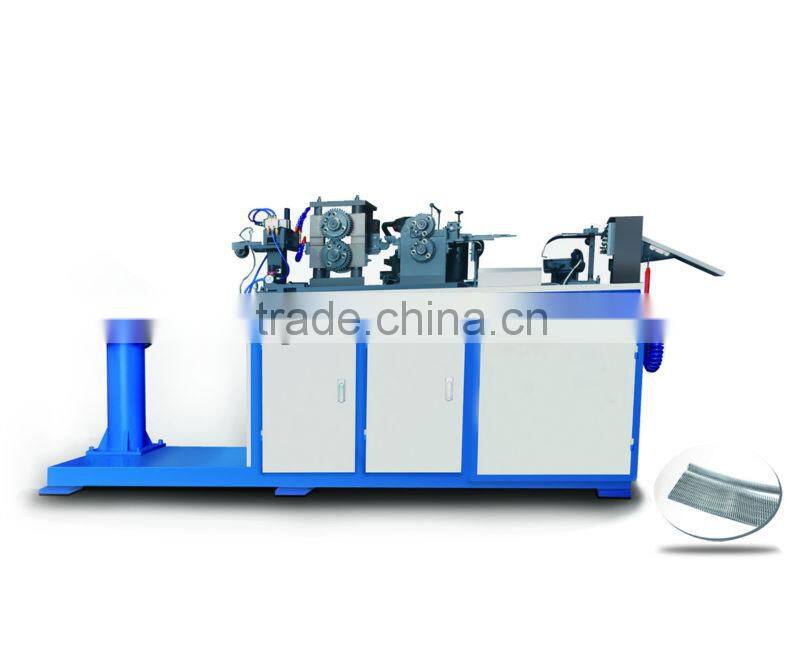

Auto Aluminum Condenser and Radiator Fin Forming Machine

Hot Sale Aluminium Fin Making Machine/Mill

Structural Characteristics

It is equipped with additional devices such as magnetic powder arrester, motorized feeding device, pneumatic decoiling device, and endless screw fin counting device. The machine employes a combined control through human-machine interface, PLC control system, and the pneumatic control system. The speed for the feeding motor and the main shaft motor are both through imported inverters.

The feeding speed can automatically follow the fin making speed, and the machine counts the fin quantity through the servo motor and photolectric transducer. When the machine is working continuously, the fins are cutted at a fast speed ( near zero speed cutting). The machine has a high counting accuracy and a high anti-interference ability. The coil rack has a tightening, braking and arresting device, and the coil plates stops rotating at the same time when the master machine stops working. The machine allowes a control over the fin height and the fin-to-fin distance. The human-machine interface displays the working frequency of the master machine, fin count, product quantity, and faults. The machine has two working status, manual and automatic. The machine is equipped with main shaft inching button and stepping inching button for easy test-running of the machine. It is also equipped with a strip breakage and intertwist alarm device. The machine halts automatically when faults occur.

Main Parameters

   Feeding speed: 0-120m/min (stepless speed regulation)

   Fin height: 3-25mm

Fin height accuracy: ±0.02mm (fin height≤12mm)

                                ±0.03mm (fin height≥12mm)

   Cutting accuracy: ±0 fins

   Cutting time: 60 times/min

   Raw material thickness: 0.04~0.15 (copper strip)

                      0.08~0.30 (aluminum strip)

   Fin distance adjustment range: ±0.6mm ( when the fin height is kept unchanged)

The machine is packed in plywood cases which can be moved through forklift by its feet.

The nearest sea port is Shanghai port which is the largest and most convenient port over China.

The delivery time is 60 days after receipt of down payment.

The machine can be loaded into normal container (20GP or 40GP).

Our company provides test-running service to the customers. We would send our engineers to the buyer's site for installation, test-running and training service. The customer should bear the following costs: round-way air ticket fare, and board and lodging, and daily allowance.

The warrantee period is 1 year after completion of test-running.

We provide technical support life-time.

Wuxi Wondery Trading Co., Ltd is a comprehensive equipment supplier cooperating with various domestic factories. We can supply the heat exchanger production line for auto radiators, condensers, oil-coolers, heaters, or other products, and HVAC condensers and evaporators.

Auto Condenser Production Line

Including: collecting pipe single-punch mold; collecting pipe automatic forming machine; aluminum one-end or two-end chamfering machine; semi-automatic core builder; condenser

side plate forming machine; collecting pipe slitting machine; flat tube straightening and cutting machine; aluminum brazing furnace.

Auto Radiator Production Line

Including: machines for brazing type radiator: fin making machine, radiator core assembly machine, plastic tank crimping machine, leak detector, header and side plate mold, and brazing furnace; machines for mechanical type radiators: fin mold, tube-to-fin expansion machine,

tube-to-header expansion machine, plastic tank crimping machine, etc;

Evaporator Production Line

Including: fin mold (single-punch type or progressive type); serpentine tube bending machine; evaporator assembly table, etc;

HVAC Evaporator and Condenser Production Line

Including: heat exchanger bending machine; Long/short U-tube bending machine; copper tube straightening and cutting machine; fin press line; progressive fin mold; vertical/horizontal expansion machine; others.

Other Heat Exchanger Making Machines

Machines and/or molds for similar heat exchanger products and their accessories
