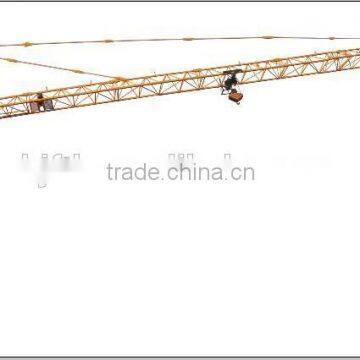

manufacturer QTZ 63 type tower crane

Name: manufacturer QTZ 63 type tower crane
Brand: JIuhong
Availability: InStock

FOB Price

US$ 55,000 - 75,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Application	construction, Construction
Rated Loading Capacity	6t	Rated Lifting Moment	56, 630 KN.M
Max. Lifting Load	6t, 6T	Max. Lifting Height	141
Place of Origin	Beijing, China	Brand Name	JIuhong
Model Number	QTZ5610	Certification	CE
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas
Span	56M

manufacturer QTZ 63 type tower crane
1.With Hydraulic Self-raising Mechanism,
2.Variable-frequency Slewing Mechanism,

Construction Building Tower Crane

Technical Parameters

Model	QTZ63B(5610)	QTZ63B(5013)
Jib Length (M)	56	50
Free Height (M)	41	41
Max. Possible Height (M)	161	161
Max. Load (T)	6	6
Tip Load (T)	1.0	1.3
Wall-attached Device for Max Height (sets)	6	6
Main Material (mm)	Standard Mast Section 135×135×10 (Square Steel Tube) Reinforcing Mast Section 135×135×12 (Square Steel Tube)	Standard Mast Section 135×135×10 (Square Steel Tube) Reinforcing Mast Section 135×135×12 (Square Steel Tube)
Mast Section Dimension (m)	1.835×1.835 ×2.5	1.835×1.835 ×2.5
Hoisting Speed (a=2) (m/min)	80/40/10	80/40/10
Min. Stable Falling Speed (m/min)	5	5
Slewing Speed (r/min)	0-0.62	0-0.62
Radius-changing Speed (m/min)	40/20	40/20
Jacking-up Speed (m/min)	0.6	0.6
Total Motor Power (kw)	55.2	55.2
Power Supply	380V/50HZ	380V/50HZ
Weight of Independent Structure (T)	36.80	36.80
Counterweight (T)	14.85	14.85
Base Form	Embedded Type (Outrigger Stationary)	Embedded Type (Outrigger Stationary)
Number of Containers Needed for Shipment (Free Height)	6 * 40HC containers	6 * 40HC containers

Main Technical Parameters

1) Nominal Lifting Moment: 800KN.m

2) Working Range: 3-56m

3) Max. Lifting Capacity: 180t

4) Independent Standing Height: 45m

5) Attached Standard Height: 180m

6) Lifting Speed: 0-80m/mim

7) Slewing Speed: 0-0.7r/min

8) Radius Changing Speed: 0-47.3m/mim
