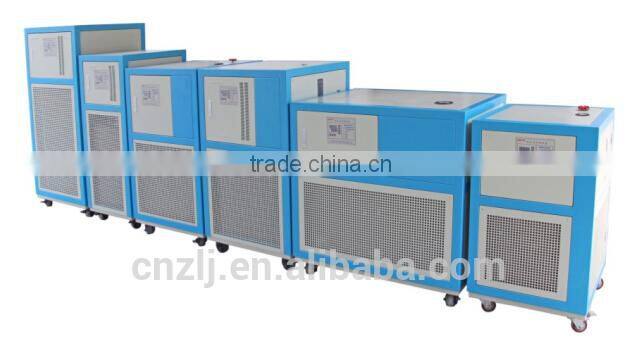

Refrigerated Heating Circulator Cooling Heating Chiller Refrigeration Heater HRV Series -40 to 200 Degree

Name: Refrigerated Heating Circulator Cooling Heating Chiller Refrigeration Heater HRV Series -40 to 200 Degree
Brand: LNEYA
SKU: 116973945
Availability: InStock

Refrigerated Heating Circulator Cooling Heating Chiller Refrigeration Heater HRV Series -40 to 200 Degree thumbnail-1

Refrigerated Heating Circulator Cooling Heating Chiller Refrigeration Heater HRV Series -40 to 200 Degree photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, cooling and heating

Product Type:

Other

Contact Supplier Request Quote Chat Now

Wuxi Guanya Refrigeration Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, cooling and heating

Product Type Other

Place of Origin Jiangsu, China

Brand Name LNEYA

Model Number HRV series -40 to 200 degree

Voltage 220V,380V

Power(W) 50HZ,60HZ

Warranty 1 year

After-sales Service Provided Overseas third-party support available

Specifications

Temperature range: -40 to 200 degree
PID adaptive controller
MODBUS RTU Protocol, RS 485 Interface
full closed circulation

Model		HRV-25	HRV-35	HRV-50	HRV-70		HRV-100	HRV-150
Temperature range °C		-40°C~200°C	-40°C~200°C	-40°C~200°C	-40°C~200°C		-40°C~200°C	-40°C~200°C
Controller		PID adaptive controller
Temp. control		Heat-conducting medium outlet ntrol
Communication protocol		MODBUS RTU Protocol, RS 485 Interface
Temperature feedback		Heat-conducting medium temperature feedback PT100
Temp. accuracy		±0.5°C	±0.5°C	±0.5°C	±0.5°C	±0.5°C		±0.5°C
Heating power		2.5KW	3.5KW	5.5kw	7KW	10kw		15KW
Cooling capacity	200°C	2.5kw	3.5KW	5.5kw	7KW	10kw		15KW
	100°C	2.5kw	3.5KWW	5.5kw	7KW	10kw		15KW
	20°C	2.5kw	3.5KW	5.5kw	7KW	10kw		15KW
	0°C	2.5kw	3.5 KW	5.5kw	7KW	10kw		15KW
	-20°C	2.2kw	3KW	4KW	5.2KW	7.6KW		10KW
	-35°C	0.5kw	0.9kw	1.2kw	1.6kw	2.4kw		3.2kw
Circulation pump		Max20L/min 2BAR	Max20L/min 2BAR	Max35L/min 2BAR	Max35L/min 2BAR	Max50L/min 2BAR		Max50L/min 2BAR
Compressor		France	Copeland	Copeland	Copeland	Copeland		Copeland
Evaporator		Plate heat exchanger
Operation panel		Display setting temperature and testing temperature;Touch key display
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation,there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running.The system will supplement oil automatically at low temperature.
Refrigerant		R-404A	R-404A	R-404A	R-404A		R-404A	R-404A
Connection size		DN-15	DN15	DN20	DN20		DN20	DN-20
Connection size (air-cooled)		5006801350	5506801350	5506801450	6206801550		6206801550	7507501750
Weight (air-cooled)		160kg	185kg	210kg	255kg		300kg	340kg
Power		AC 220V 50HZ 4.5kW(max)	AC 380V 50HZ 6.5kW(max)	AC 380V 50HZ 9kW(max)	AC 380V 50HZ 12.5kW(max)		AC 380V 50HZ 16.5kW(max)	AC 380V 50HZ 24kW(max)
Case material		Cold rolled steel
Optional		Optional 7-inch color touch screen controller,temperature curve record,data export to excel format.
Optional		SUS304 case material
Optional power		220V 60HZ three-phase ,440V~480V 60HZ three-phase
