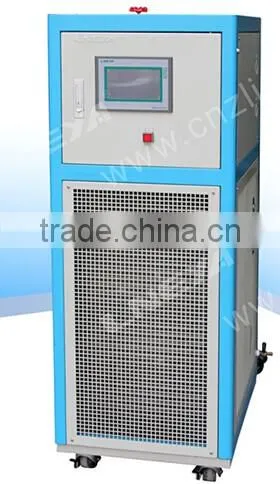

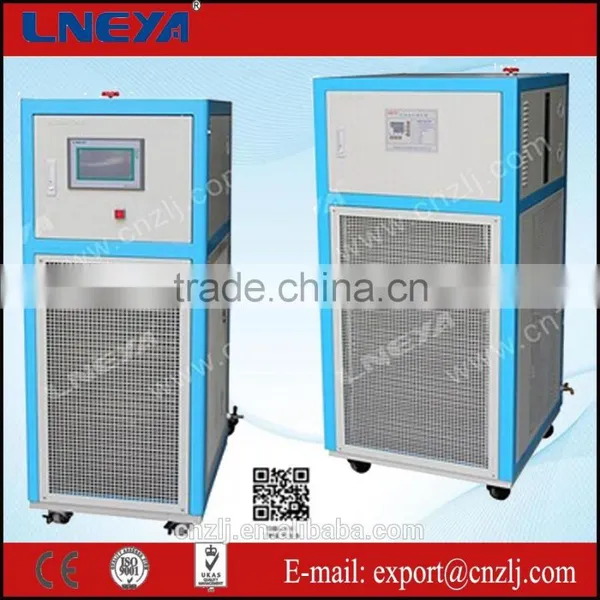

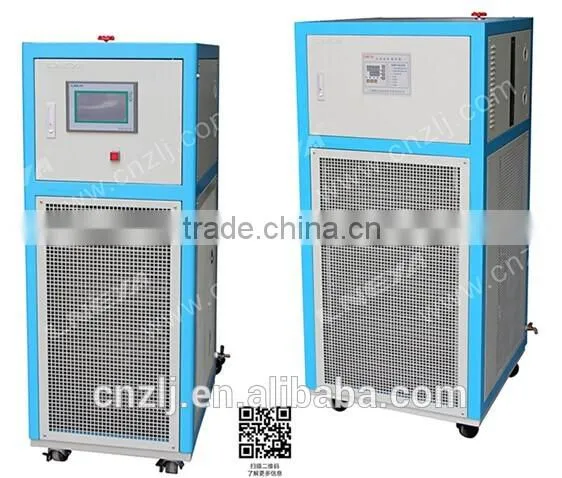

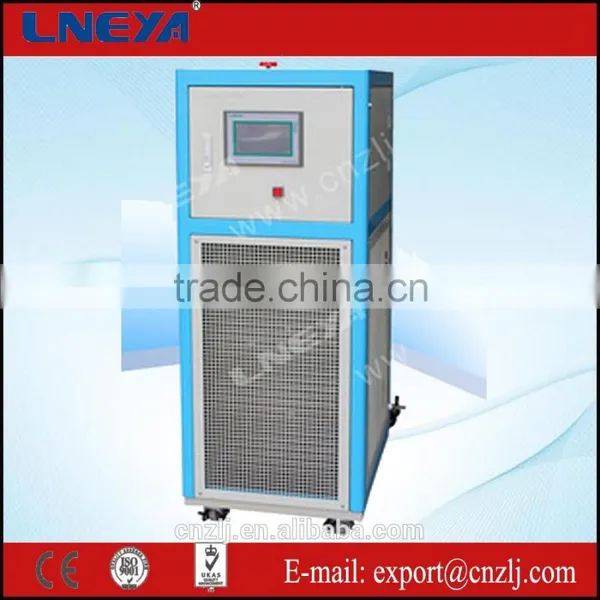

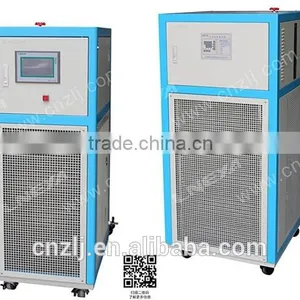

Refrigerated heating circulator cooling heating chiller refrigeration heater HRS series -70 to 250 degree
Model |
HRS-25W |
HRS-35 |
HRS-50 |
HRS-70 |
HRS-100W |
HRS-150W |
|||
Temperature range °C |
-70°C~250°C |
-70°C~250°C |
-70°C~250°C |
-70°C~250°C |
-70°C~250°C |
-70°C~250°C |
|||
Controller |
PID adaptive controller |
||||||||
Temp. control |
Heat-conducting medium outlet ntrol |
||||||||
Communication protocol |
MODBUS RTU Protocol, RS 485 Interface |
||||||||
Temperature feedback |
Heat-conducting medium temperature feedback PT100 |
||||||||
Temp. accuracy |
±0.5°C |
±0.5°C |
±0.5°C |
±0.5°C |
±0.5°C |
±0.5°C |
|||
Heating power |
2500W |
3500W |
5500W |
7500W |
10000W |
15000W |
|||
Cooling capacity |
250°C |
2500W |
3500W |
5500W |
7500W |
10000W |
15000W |
||
|
100°C |
2500W |
3500W |
5500W |
7500W |
10000W |
15000W |
||
|
20°C |
2500W |
3500W |
5500W |
7500W |
10000W |
15000W |
||
|
0°C |
2500W |
3500W |
5500W |
7500W |
10000W |
15000W |
||
|
-20°C |
2000W |
3000W |
4850W |
6000W |
8200W |
14000W |
||
|
-40°C |
1300W |
1750W |
2300W |
3100W |
4000W |
8750W |
||
|
-60°C |
400W |
550W |
750W |
900W |
1200W |
2800W |
||
Circulation pump |
Max20L/min 2BAR |
Max35L/min 2BAR |
Max35L/min 2BAR |
Max50L/min 2BAR |
Max50L/min 2BAR |
Max50L/min 2BAR |
|||
Compressor |
Copeland |
Copeland |
Copeland |
Copeland |
Copeland |
Copeland |
|||
Operation panel |
Display setting temperature and testing temperature;Touch key display |
||||||||
|
Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
|
|||||||||
|
Closed
|

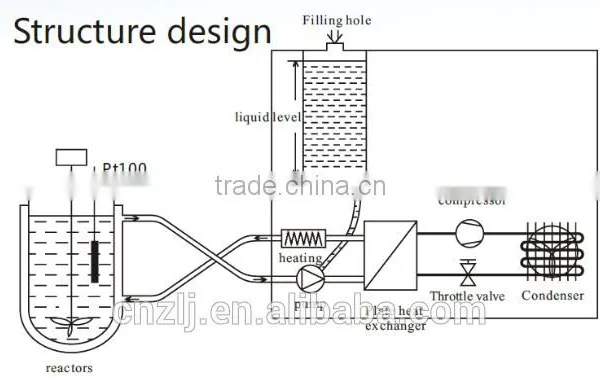

The whole system is full closed circulation,there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running.The system will supplement oil automatically at low temperature. |
||||||||
Refrigerant |
R-404A R23 |
R-404A R23 |
R404A R23 |
R404A R23 |
R404A R23 |
R404A R23 |
|||
Connection size |
DN-15 |
DN20 |
DN20 |
DN20 |
DN20 |
DN-20 |
|||
Water-cooled type W(cooling water at 20°C) |
900L/H 1.5bar~4bar |
|
|
|
3200L/H 1.5bar~4bar |
4500L/H 1.5bar~4bar |
|||
|
Dimension(water-cooled) (air-cooled) |
400*600*1350
|
550*680*1450 |
620*680*1450 |
750*750*1750 |
700*700*1350
|
700*700*1550
|
|||
|
Weight (water-cooled) (air-cooled) |
190kg
|
275kg |
320kg |
370kg |
370kg
|
420kg
|
|||
Power |
AC 220V 50HZ 5.2kw(max) |
AC 380V 50HZ 8kW(max) |
AC 380V 50HZ 11kW(max) |
AC 380V 50HZ 15kW(max) |
AC 380V 50HZ 20kW(max) |
AC 380V 50HZ 28kW(max) |
|||
Case material |
Cold rolled steel |
||||||||
Optional |
Optional 7-inch color touch screen controller,temperature curve record,data export to excel format. |
||||||||
Optional |
SUS304 case material |
||||||||
Optional power |
220V 60HZ three-phase,440V~480V 60HZ three-phase |
||||||||
