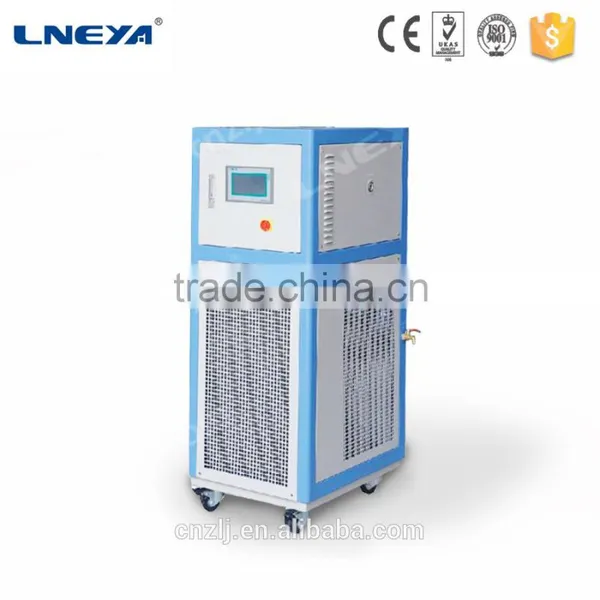

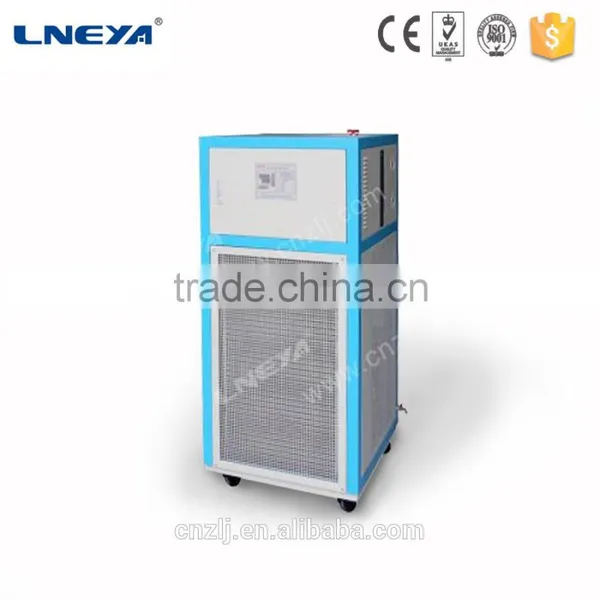

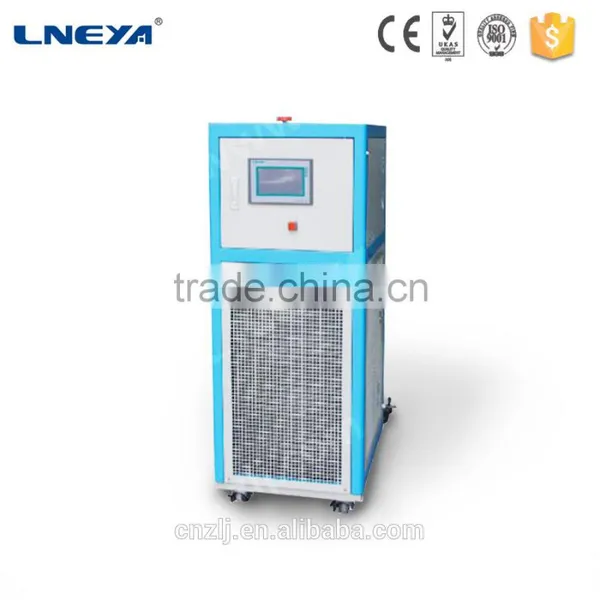

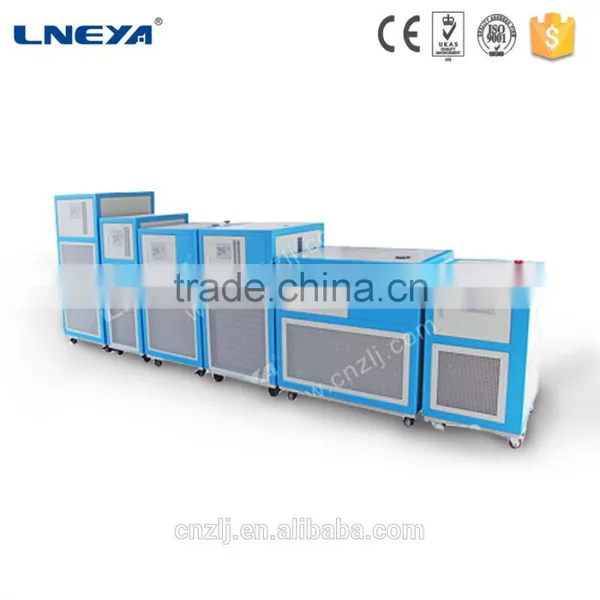

-105 to -60 degree Low temperature chiller
1.Saving resources;closed cycle pipeline design highly prevent circulating water pollution and extend the lifetime of circulation liquid.
2.Multi-safety protection,more reliable operation.
3.Brand compressor,cascade refrigeration colling technologies.
4.Human design,more convenient and flexible.
5.Efficient two-condensate system.
6.Computer-cascade temperature controller,temperature figures display,adjustable unit is 0.1℃,temperature range is 125℃~-20℃,PT100 temperature sensor.
7.Use of cold technology,can guarantee the stability of temeprature at low temperature.
8.Can set the temperature difference of compressor on/off.
9.Monitoring the ambient temperature,prevent temperature to be higher in the running system.
10.A variety of fault alarm (overtemperature alarm, sensor alarm, high pressure alarm, compressor overheat alarm, liquid level alarm).
11.Power on delay protection,three-level cascade system protectors.
12.All parts are safety grounding.
13.Adopt full closed circulation design,no water vapor at low temperature and ensure the purity of cooling medium,in case of ice crystals,provide a long timelife of heat transfer liquid.
14.High-performance circulating pump, can guarantee 24 hours continuously running a day.
15.Use plate cool-heat-exchanger,heat transfer efficiency is provided.
Model |
LT-A025W |
LT-A050W |
LT-A080W |
LT-A215W |
LT-A230W |
LT-A255W |
|||||
Medium Temperature Range |
-105°C~-60°C |
-105°C~-60°C |
-105°C~-60°C |
-120°C~-70°C |
-120°C~-70°C |
-120°C~ -70°C |
|||||
ntrol |
ASET multifunctional controller |
||||||||||
ntrol optional |
Heat-conducting medium outlet ntrol |
||||||||||
communication protocol |
MODBUS RTU Protocol, RS 485 Interface |
||||||||||
Temp.feedback |
Heat-conducting medium temperature feedback PT100 |
||||||||||
Cooling capacity |
-60°C |
2.5KW |
5KW |
8.6KW |
|
|
|
||||
|
-75°C |
|
1.3KW |
3KW |
5KW |
1.2KW |
2.4KW |
4KW |
|||
|
-95°C |
|
0.7KW |
1.4KW |
2.3KW |
0.7KW |
1.4KW |
2.1KW |
|||
|
-110°C |
|
|
|
|
0.3KW |
0.55KW |
0.95KW |
|||
Circulation pump |
Max20L/min 0.7BAR |
Max35L/min 1BAR |
Max75L/min 1BAR |
Max20L/min 0.7BAR |
Max35L/min 1BAR |
Max35L/min 1BAR |
|||||
capacity of liquid storage |
15L |
20L |
35L |
20L |
30L |
30L |
|||||
Compressor |
Tecumseh |
Copeland |
Copeland |
Copeland |
Copeland |
Copeland |
|||||
Evaporator |
Plate heat exchanger |
||||||||||
Operating controller |
Display setting temperature and testing temperature;Touch key display |
||||||||||
Security protection |
Self-diagnosis function;freezer overload protection;high pressure switch;overload relay,thermal protection device etc.security protection function. |
||||||||||
Refrigerant |
R-404A |
||||||||||
Connection size |
DN-15 |
DN20 |
DN20 |
DN20 |
DN20 |
DN-20 |
|||||
Product size(water-cooled) |
500*680*1350 |
600*700*1650 |
700*700*1650 |
600*700*1650 |
700*700*1650 |
1000*900*1650 |
|||||
Weight (water-cooled) |
235kg |
320kg |
455kg |
340kg |
380kg |
480kg |
|||||
Power |
AC380V 50HZ 5.5kW(max) |
AC380V 50HZ 7.5kW(max) |
AC380V50HZ 11kW(max) |
AC380V 50HZ 6kW(max) |
AC380V 50HZ 9.5kW(max) |
AC380V50HZ 14kW(max) |
|||||
Material |
Cold rolled steel painting |
||||||||||
Optional |
Match 7-inch color touch screen controller,temperature curve record,data export to excel format. |
||||||||||
Optional |
Circulation Pump Optional: 35L/min 2.5bar 50L/min 2.5bar 110L/min 2.5bar |
||||||||||
Optional |
SUS304 material |
||||||||||
Optional Power |
220V 60HZ three-phases,440V~480V 60HZ three-phases |
||||||||||
Remark |
Can make the bigger capacity of water storage as required. |
||||||||||
Development history
2006 Start production of refrigeration and heating system .
2008 The first generation of refrigeration and dynamic temperature control system.
2009 Developed the second generation of refrigeration and heating thermostat.
2010 Established WUXI GUANYA REFRIGERATION TECHNOLOGY CO., LTD.
2012 Single compressor having multiple circulation systems is applied SUNDI and LT series.
2014 Developed with large capacity of ultra-low temperature freezer
2016 low temperature freezer, plate freezer into the market

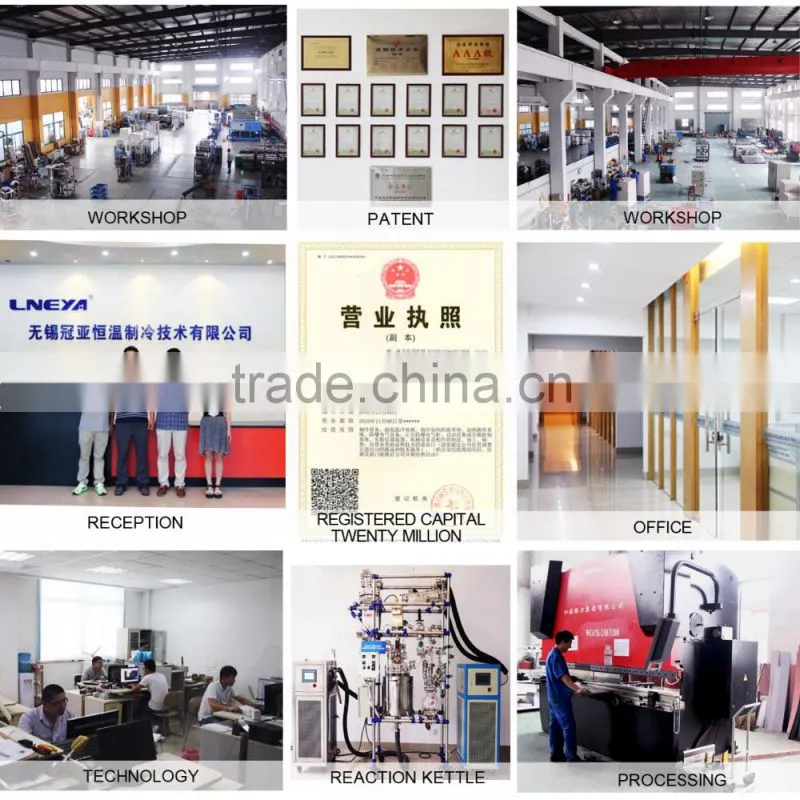

Factory online visiting
