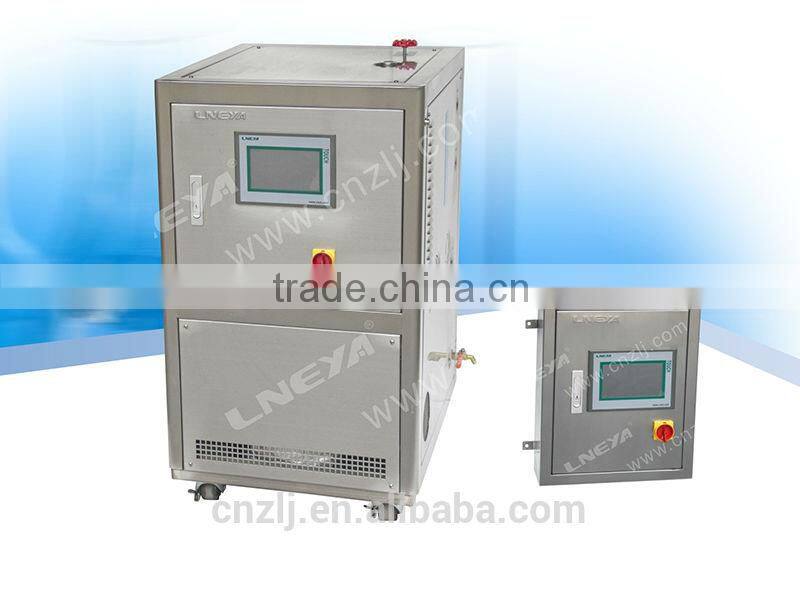

Dynamic temperature control machine
-10~200 degree SUNDI-1A15W
Typical Applications
Reactor Systems Autoclaves
Pilot Systems
Mini Plant Systems
Scale up for Operational Development
Double wall reactors
Advanced-Flow Reactors
Distillation Systems
Material Testing
Combinational Chemistry
Semiconductor Industry
Vacuum Chambers
Advantages & Functions
Working temperatures from -100℃ to +350℃
Previously unachievable performance
Intelligent temperature control
Maximum process stability and reproducibility
Adop plate heat exchager,Pipeline heating,the fastest
heating and cooling rates.
High cooling power from 0.5 to 400kW
Large temperature range without fluid change
Closed system,extend thermal fluid lifetime
Incredibly compact
7-inch,10-inch color TFT touch screen display
Comprehensive warning and safety functions
Rapid cooling down from high temperature (from 300 ℃)
Use magnetic drive pump,solve the circulation pump leakage
1. Displays all the kind of process control temperatures.
2. Shows the liquid level of the heat conducting medium in the expansion vessel.
3. Shows indication for refrigeration system working.
4. Shows indication for heater working.
5. Shows indication for circulation pump working.
6. Displays the temperature control (materials temperature control pattern, heat conducting medium temperature control ).
7. The temperature upper limit, lower limit control can be set.
8. The temperature difference between jacket & reactor material can be set.
9. Shows the alarm to add the liquid when it is empty.
10. The refrigeration compressor can be set to operate manually or automatically.
11. Simple Menu to use.
Technical Parameters:
Model |
SUNDI-125 |
SUNDI-135W SUNDI-135 |
SUNDI-155W SUNDI-155 |
SUNDI-170W SUNDI-170 |
SUNDI-1A10W SUNDI-1A10 |
SUNDI-1A15W SUNDI-1A15 |
|
Temperature range ℃ |
-10℃~200℃ |
||||||
Control Mode |
Feed forward PID +Our special dynamic control calculation, PLC controller |
||||||
Temp. control |
Option: process temperature control or jacket temperature control |
||||||
Temp. difference |
Set or control the temperature difference between jacket and material process |
||||||
Program Editor |
20 programs, each program can edit 45 steps. |
||||||
Communication protocol |
MODBUS RTU Protocol, RS 485 Interface |
||||||
Temperature feedback |
Jacket: PT100 Material process: PT100 |
||||||
Temp. accuracy |
±1℃ |
±1℃ |
±1℃ |
±1℃ |
±1℃ |
±1℃ |
|
Cooling capacity |
200℃ |
2.5kW |
3.5kW |
5.5kW |
7kW |
10kW |
15kW |
0℃ |
2.5kW |
3.5kW |
5.5kW |
7kW |
10kW |
15kW |
|
-10℃ |
1.5kW |
2.1kW |
3.3kW |
4.2kW |
6kW |
9kW |
|
Circulation pump |
Max35L/min 2BAR |
Max35L/min 2BAR |
Max50L/min 2BAR |
Max50L/min 2BAR |
Max75L/min 2.5BAR |
Max75L/min 2.5BAR |
|
Compressor |
Tecumseh |
Copeland |
Copeland |
Copeland |
Copeland |
Copeland |
|
Expansion valve |
Danfoss |
Danfoss |
Danfoss |
Danfoss |
Danfoss |
Danfoss |
|
Oil separator |
LNEYA |
LNEYA |
LNEYA |
LNEYA |
LNEYA |
LNEYA |
|
Evaporator |
KAORI Plate heat exchanger |
||||||
Optional |
Optional 7-inch color touch screen controller, temperature curve record, data export to excel format. |
||||||
Safety protection |
Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection. |
||||||
Closed circulation system |
The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature. |
||||||
Refrigerant |
R-404A |
||||||
Connection size |
DN-20 or M24*1.5 |
DN20 or M30*1.5 |
DN20 or M30*1.5 |
DN20 or M30*1.5 |
DN20 or M30*1.5 |
DN-25 M38*1.5 |
|
|
Water-cooled type W (cooling water at 20℃) |
|
800L/H 1.5bar~4bar |
1000L/H 1.5bar~4bar |
1200L/H 1.5bar~4bar |
1600L/H 1.5bar~4bar |
2000L/H 1.5bar~4bar |
|
Dimension |
water-cooled |
|
500*680*1050 |
600*700*1150 |
600*700*1150 |
600*700*1150 |
600*700*1150 |
air-cooled |
400*600*1050
|
500*680*1350 |
550*680*1450 |
550*680*1650 |
620*680*1550 |
750*750*1750 |
|
Weight |
water-cooled |
|
135kg |
160kg |
205kg |
250kg |
280kg |
air-cooled |
115kg
|
165kg |
185kg |
230kg |
280kg |
300kg |
|
Power |
AC 220V 50HZ 3.6 kW (max) |
AC 220V 50HZ 5.6 kW (max) |
AC 220V 50HZ 7.5kW (max) |
AC 380V 50HZ 10kW (max) |
AC 380V 50HZ 13kW (max) |
AC 380V 50HZ 20kW (max) |
|
Case material |
SUS 304 |
SUS 304 |
SUS 304 |
SUS 304 |
SUS 304 |
SUS304 |
|
Optional |
Optional Ethernet interface, configure the computer operating software |
||||||
Optional |
Optional outside touch screen display controller (separated), the communication line distance is 10 meter. |
||||||
Optional |
100V 50HZ three-phase, 110V 60HZ three-phase, 230V 60HZ single-phase, 220V 60HZ three-phase, 440V~480V 60HZ three-phase |
||||||
