Customized Large Bus Spray Tan Booth
- 200 Set / Sets per Month
- Guangzhou/Shenzhen
- Credit Card PayPal
- spray booth car painting for car body repair equipment VPB-E800
- Vico CE Approved Car Spray Booth Paint Booth Baking Booth #VPB-E800
- Vico Hot selling Car Spray Booth Factory Price Car Spray Paint Booth Automotive Paint Box #VPB-E700
- Vico hot sale CE Certificate auto electric spray booth car painting booth VPB-E600
- CE Approved Vico Auto Spray Booth Car Painting/Spray car painting booth on hot sale VPB-SD58
- CE Approved Auto Paint Room Automotive Vehicle Spray Booth Car Body Painting Machine VPB-SD68
Product Details
Power: | 43kw | External Size: | 15000*6000*5075mm(L/W/H) | Internal Size: | 14850*4850*4550mm(L/W/H) |
Voltage: | 380V/50HZ | Certification: | CE | No Load Speed: | more than 0.25m/s |
Place of Origin: | Guangdong, China | Brand Name: | Qiangxin / Xin Guang Li | Model Number: | QX3000 |
Product Description
Advantage
fessional spray paint cabinet factory with own branded name"Xin Guang Li" and "Qiangxin"
fessional bus spray paint cabinet factory with CE ISO certificate
3.our bus spray booth provide you dust free space for your painting process and also have the good performance for dry paint
4.infrared heating system,environmental,energy saving,cost saving
5.good materila,competitive price,good sales service system
6.customize
7.pre-sales service & after sale service
8.booths received good comments from customers,so far we had sold to Germany,Norway,Nigeria,Egypt,
Saudi Arabia,The United Arab Emirates,Ethiopia,Qatar,Libya,Namibia,Cameroon,Ghana,Togo,Angola,Morocco,
Tanzania,Seychelles,Sudan,Philippine,Malaysia,Singapore,Australia,Russian Federation etc...
Welcome To Contact Jessica!
Parameter
Dimensions&Framework | |
Exterior size | 15000×6000×5075(mm)(L×w×H) |
Interior size | 14850×4850×4550(mm)(L×w×H) |
Entrance door | 4000*4500mm(W*H), fold door |
Personnel door | 700*1700mm(W*H),casement door |
Framework | wall-75mm thickness EPS colorful panel |
roof- 75mm thickness EPS colorful panel |
Working System | |
Air Exhaust System | Air Exhaust-2 axial Fan. Single Parameter:TAE-710H.3kw.20000m³/h (optional) |
Circulation-Intake air from upside, exhaust wind from downside. | |

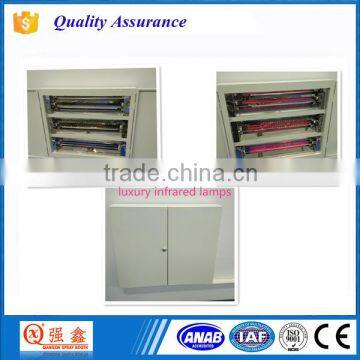

Heating System (1set) | • 36 groups of infrared carbon fiber heating pipe(1000w each group) |
• temperature setting from 50 centigrade to 60 centigrade | |
Filtration System | •CC-G650 high-efficiency filtering device,effectively filter 5pm dust particles. |
• Air inlet(1000*1150mm) opens from the top of the wall is the primary filtering device.. Roof is made of light steel. | |
•3 layers activated carbon,1 enviromental cabinet.Filtering rate ≥ 98% | |
Control System | Including Painting , Baking, Temperature Controller, Breakdown Indicator, Power Switch, Emergency Stop Switch, Time Setting, RCD |
Voltage Frequency | 380V,50HZ |
Total Power | 43kw |
Remark | Feel free to contact us for more latest details! Jessica:0086 135 278 971 98 |
Certificate
Durable Accessories
Classical Structure
Professional Factory
We are spray booths experienced factory in Guangzhou,China.Specializing in manufacture kinds of paint spray room system.And also offering full garage equipments,car care equipment.
Our Products range
•Car spray&baking booth system
•Bus spray&baking booth system
•Furnitue spray&baking room system
•Industrial painting&baking room system
•High temperature baking oven system
•Customized spray&bake booth.Offer car spray baking booth accossories
Contact Us
- Guangzhou Qiangxin Electromechanical Co., Ltd.
- Contact nameYuvi Yu
- Phone86-20-66291448
- AddressZhouhang Creative Park,Xiangxi Road,Xiamao,Baiyun District Guangzhou,Guangdong
