Infrared(electric) Heating Bus Spray Booth Price From Professional Factory

Infrared(electric) Heating Bus Spray Booth Price From Professional Factory photo-1
US$ 19,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Power:
66kw
External Size:
15000*6500*5000mm
Internal Size:
14850*4850*4550mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Power 66kw
External Size 15000*6500*5000mm
Internal Size 14850*4850*4550mm
Voltage 380V 50Hz
Certification CE
No Load Speed ≥0.25m/s
Place of Origin Guangdong, China
Brand Name Qiangxin
Model Number QX3000

infrared(electric) heating bus spray booth price from professional factory

Advantage

infrared(electric) heating bus spray booth price from professional factory

1.Professional factory :produce and export spray booth more than 5 years .

2.Convenient transportation:about 20 minutes to airport,about 15 minutes to train station ,auto parts market , apparel wholesale market ect.

3.Certificate:CE,ISO.

4.Products advantage:good quality reasonable price with warranty ,strict quality control .

5.Our spray booth applied to car body shop(garage shop ,car repair factory),car dealer,furniture factory,manufacturer whose products need to be painted and coated ect ..

6.Our service:customized service,pre-sales service & after sale service,installation servicer if in need.

7.Our products already  sold to Australia,Germany,USA,Nigeria,Philippine,Ethuopia,Egypt,Russian Federation,Kingdom of Saudi Arabia,Seychelles,Qatar,Namibia,Cameroon,Ghana,Togo,Angola,

Morocco,Norway,Singapore  etc...

Any query ,please feel free to contact Sunny today :0086-13678922461



Parameter

Inside Dimension 14850×4850×4550(mm)(L×W×H)
OutsideDimension  15000×6500×5000(mm)(L×W×H)
Entrance Door

Aluminum alloy binding framework(thickness: 1.2mm),

1 set folding door size: 4000*4500(mm)(W*H)

Personal Door 1 set side hung door:700*1700mm(W*H)
Wallboard 70mm EPS(epispastics polystyrene )insulation material with S=0.526 two side steel panel
Lighting System Lamp boxes are 45°fixed on upper two side .With 16 groups*3pcs=48pcs,16W led lamp.With 36pcs side light .
Air Intake and Exhaust System

With 4 pcs centrifugal air blowers.Single parameter:YOW 5.6m.5.5kw,18000m³/h
With 2 pcs centrifugal air blowers,Single parameter:YOW 5.6m.5.5kw,18000m³/h

Cabinet Setting Intake air from  upside,downside exhaust wind.
Frame is made of tube 50*50mm, body plate is made of galvanized plate(thickness:0.8mm).
Air duct Made of Galvanized plate(Thickness is 0.8mm),700*700*1000,3 pcs straight,1 pc elbow
HeatingSystem 72 pcs of infrared carbon fiber heating lamps,1000W/piece.The operating temperature:50°C-60°C.Max. temperature:80°C
Filtration System

Air inlet with prefilter.Ceiling equipped with CC-G650type high-efficiency filter,which can effectively filter the 5PM dust particles.

Environmental System  With three layers of activated carbon ,plus an environmental protection cabinet.The air filtration effiency is more than or equal to 98.Its exhaust emission reaches the national standard .
Roof 75mm EPS(epispastics polystyrene )insulation material with S=0.426 two side steel panel
Control System Delixi 100A anticreeping switch, Painting , Baking, Temperature Controller, Breakdown Indicator, Power Switch, Emergency Stop Switch, and Time Setting
Voltage Frequency 380V  50HZ
Light Intensity 1000luxes
Air Flow Speed 0.25m/s-0.3m/s
Total Power 66KW

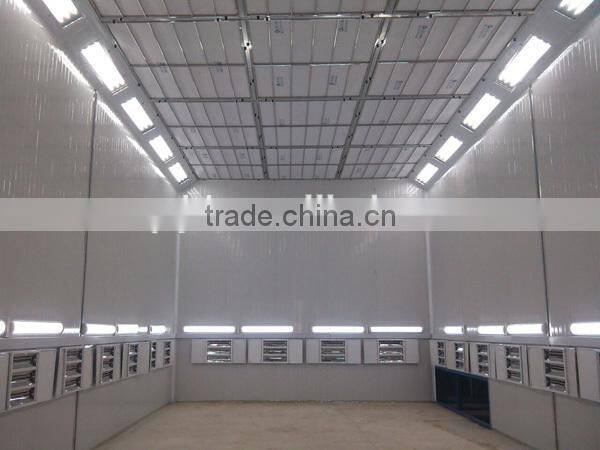

Classical Structure

 infrared(electric) heating bus spray booth price from professional factory

Certificate





Durable Accessories

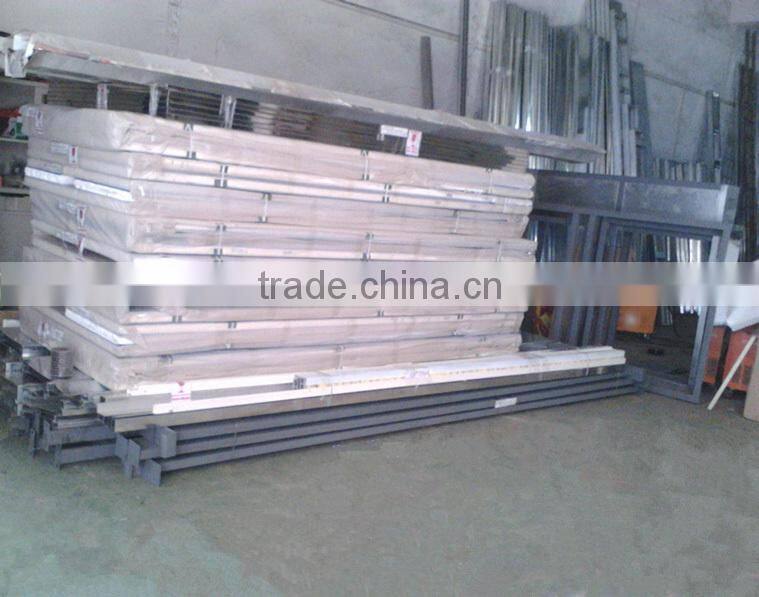

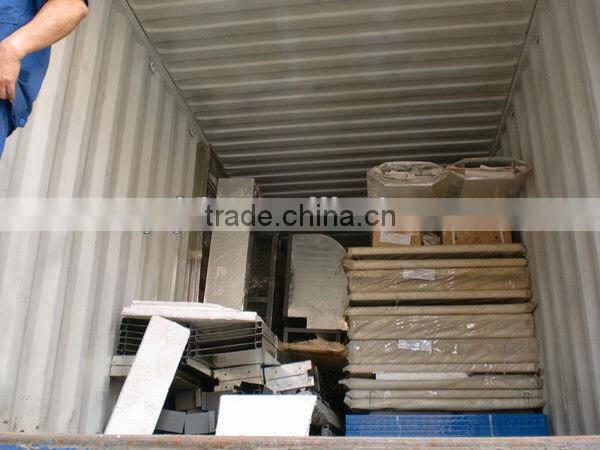

Export Package





 Professional Factory

infrared(electric) heating bus spray booth price from professional factory

infrared(electric) heating bus spray booth price from professional factory

We are professional leading factory in Guangzhou,China.

Specializing in manufacture kinds of paint spray room system.

And also offering full garage equipments,car care equipment.

•Car paint spray booth system

QX2000AB popular luxury spray booth/painting booth (with environmental system)

QX500A economic paint spray booth (with environmental system)



•Bus spray&baking booth system

QX3000 infrared bus spray booth



•Furnitue spray&baking booth system



•Industrial painting&baking booth system



•High temperature baking oven system



•Customized spray&bake booth.Offer car spray baking booth accossories
