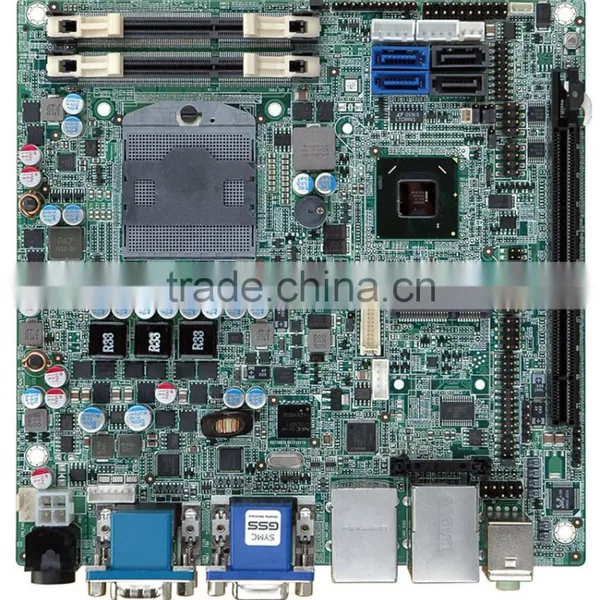

Slim Mini-ITX SBC Industrial Mainboard/motherboard for Desktop, Integrated and Stock

Slim Mini-ITX SBC Industrial Mainboard/motherboard for Desktop, Integrated and Stock thumbnail-1
Slim Mini-ITX SBC Industrial Mainboard/motherboard for Desktop, Integrated and Stock photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Desktop
Chipset Manufacturer:
Intel
Contact Supplier Request Quote Chat Now
Shenzhen Yanzchao Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Application Desktop
Chipset Manufacturer Intel
Socket Type Other, Socket G2
Form Factor Mini-ITX
Memory Type DDR3
Graphics Card Type Integrated
Hard Drive Interface SATA
FSB / HT 1333/1066
Brand Name IEI
Model Number KINO-QM670
Place of Origin Guangdong, China

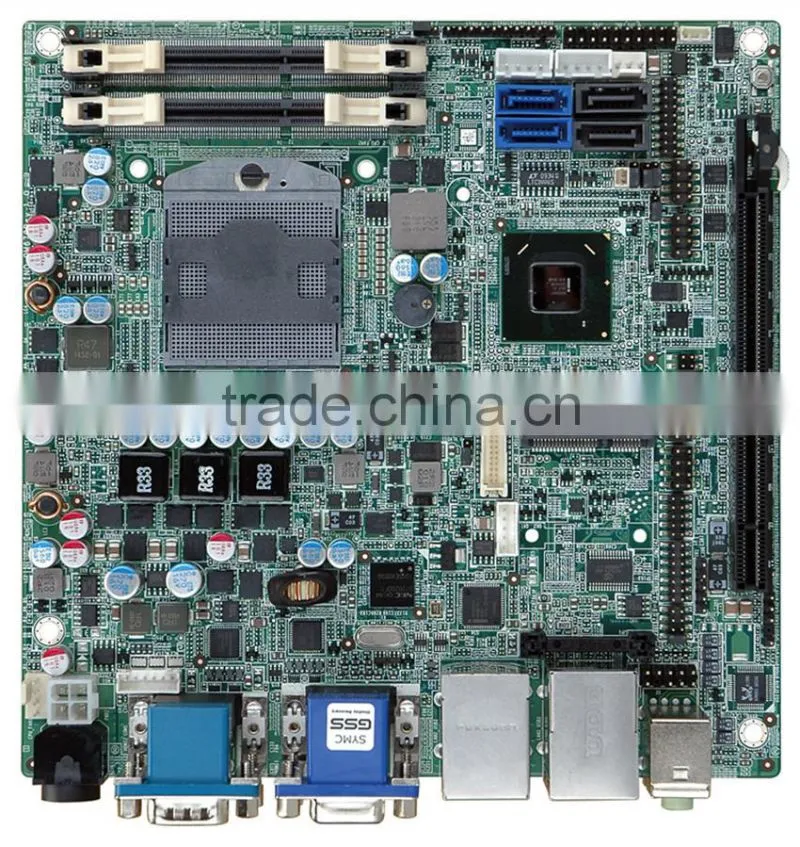

slim Mini-ITX SBC industrial mainboard/motherboard for desktop, integrated and stock

Product Description
 Features
  1. Mini-ITX SBC with Socket G2 for Intel® Core™ i7/i5/i3 processor
2. Dual-channel 1333/1066HMz DDR3 SDRAM (system max. 8GB)
3. HDMI 1.3 compliant
4. 3D micro-architecture enhancements supports DX*10.1 and OGL*3.0
5. Rich media acceleration for hardware decoding and encoding acceleration
6. Intel® GbE LAN with Intel® AMT 7.0 supported
7. High speed I/O interface for PCIe Gen2 add-on card, USB 3.0 and SATA 6Gb/s



CPU Socket G2 for Intel® Core™ i7/i5/i3 processor
PCH Intel® QM67
BIOS UEFI BIOS
System Memory Two 204-pin 1333/1066 DDR3 dual-channel SO-DIMMs supported (system max. 8GB)
Ethernet LAN1: Intel® 82583V PCIe controller
LAN2: Intel® 82579 PHY with Intel® AMT 7.0 supported
I/O Interface 1 x 6-pin KB/MS
1 x RS-422/485
2 x RS-232
2 x SATA 3Gb/s
2 x SATA 6Gb/s with RAID 0/1/5/10 support
2 x SATA power connector
2 x USB 3.0
6 x USB 2.0
Digital I/O 8-bit digital I/O (4-bit input, 4-bit output)
Super I/O Fintek F81865
Infrared 1 x 5-pin header
TPM 1 x TPM connector (2x10 pin)
SMBus 1 x 4-pin wafer
Audio Realtek ALC892 HD Audio codec
Display Interfaces Dual display supported
1 x VGA
2 x HDMI
1 x 18/24-bit dual-channel LVDS support
Expansion 1 x PCIe Mini card slot
1 x PCIe x16
Watchdog Timer Software programmable supports 1~255 sec. system reset
Power Supply Single voltage 12V DC input
1 x External DIN 4-pin DC jack
1 x Internal 4-pin (2x2) power connector
Support AT/ATX mode
Power Consumption 12V 6.5A (2.1GHz Intel® Core™ i7-2710QE CPU with two 1333MHz 2GB DDR3 DIMM)
Graphic Support for DX10.1 and OpenGL3.0
Full MPEG2, VC1, AVC Decode
Operating Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Dimensions 170mm x 170mm
Weight GW: 900g / NW: 450g
Embedded Controller ITE IT8518
Fan Connector 1 x 4-pin CPU fan connector
1 x 3-pin system fan connector



Part No. Description
KINO-QM670-R20 Mini-ITX SBC with Socket G2 for Intel® mobile Core i7/i5/i3 CPU, VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s and audio
19800-003100-300-RS Dual USB cable
32000-023800-RS KB/MS Y cable
32205-003800-300-RS RS-422/485 cable
SACF-KIT01-R10 SATA to CF converter board
CF-989A-RS-R12 CPU cooler
TPM-IN01-R11 20-pin Infineon TPM module, software management tool, firmware V3.17
