Home > Computer Products > Mainboard > ATX Power Supply, ATX/AT Mode Support 2016 100% LGA 1150 H81 Original Industrial Motherboard

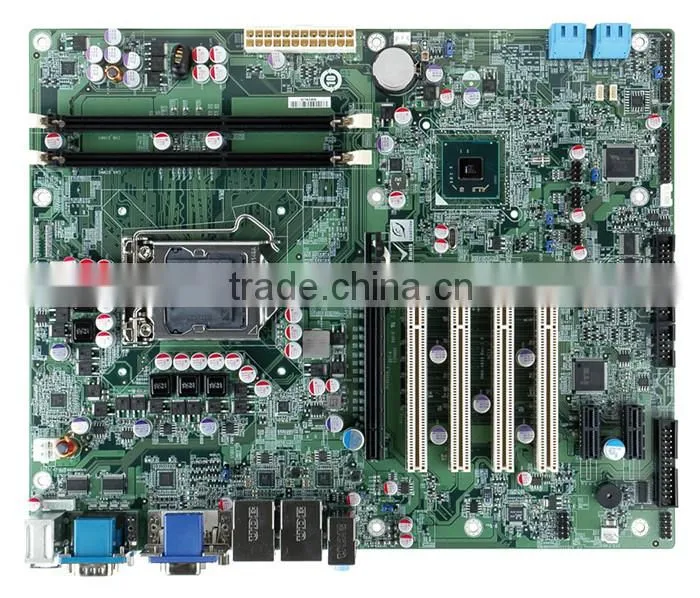

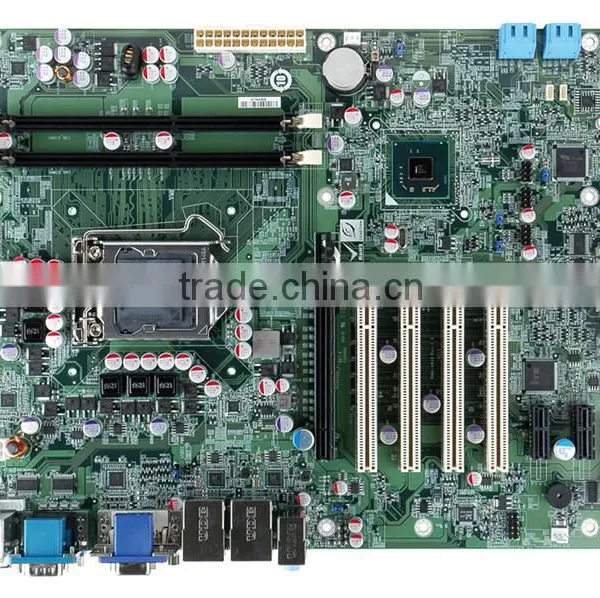

ATX Power Supply, ATX/AT Mode Support 2016 100% LGA 1150 H81 Original Industrial Motherboard

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Products Status:

Stock

Application:

Desktop

Chipset Manufacturer:

Intel

Contact Supplier Request Quote Chat Now

Shenzhen Yanzchao Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Products Status Stock

Application Desktop

Chipset Manufacturer Intel

Socket Type Other, LGA1150

Form Factor ATX

Memory Type DDR3

Graphics Card Type Integrated

Hard Drive Interface SATA, Other, SATA, mSATA

FSB / HT 1333/1600

Brand Name IEI

Model Number IMBA-H810

Place of Origin Guangdong, China

ATX power supply, ATX/AT mode support 2016 100% LGA 1150 H81 original industrial motherboard

Product Description

Features
	1. LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor supported 2. Up to 16 GB 1333 MHz dual-channel DDR3 SDRAM 3. Intel® HD Graphics technology integrates high-performance graphics and media processing 4. TPM V1.2 hardware security provided by the TPM module 5. IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU	LGA1155 socket supports Intel® Core™ i7/ i5/i3/Pentium®/Celeron® processor
System Chipset	Intel® H61
BIOS	UEFI BIOS
System Memory	Two 240-pin 1333/1066MHz dual-channel unbuffered DDR3 SDRAM DIMMs supported (system max. 16GB)
Ethernet	LAN1: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support LAN2: Realtek RTL8111E PCIe GbE controller
I/O Interface	5 x RS-232 1 x RS-422/485 1 x LPT 1 x PS/2 KB/MS 4 x SATA 3Gb/s without RAID & AHCI 10 x USB 2.0 (4 on rear IO, 6 by pin header)
Digital I/O	8-bit programmable I/O
Super I/O	Fintek F81866
TPM	1 x TPM connector (2x10 pin)
SMBus	1 x 4-pin wafer
Audio	Realtek ALC662 HD audio codec (Line-in, Line-out, Mic)
Display Interfaces	Dual display supported 1 x VGA (up to 2048 x 1536 75Hz) 1 x DVI-D (up to 1920 x 1200 @60Hz)
Expansion	1 x PCIe x16 slot 2 x PCIe x1 slots 4 x PCI slots
Watchdog Timer	Software programmable supports 1~255 sec. system reset
Power Supply	AT/ATX power supply supported
Power Consumption	3.3V 1.27A, 5V 3.87A, 12V 0.54A, Vcore 7.67A, 5VSb 0.15A (Intel® Core™ i7-2600K 3.40GHz CPU with two 1333MHz 2GB DDR3 memory)
PCI interface	PCIe-PCI Bridge ITE IT8892E
Graphic	Intel® HD Graphics 2000/3000 (based on CPU type) Supports DX10.1 and OpenGL 3.0 Full MPEG2, VC1, AVC Decode
Operating Temperature	-10°C ~ 60°C
Storage Temperature	-20°C ~ 70°C
Humidity	5% ~ 95%, non-condensing
Dimensions	244mm x 305mm
Weight	GW:1200g, NW: 700g
Front Panel	1 x Front panel connector (power LED, HDD LED, speaker, power button, reset button)
I2C	1 x 4-pin wafer
PCIe-PCI Bridge	ITE IT8892E
Front Audio	1 x 10-pin header
Fan Connector	1 x 4-pin CPU fan connector 2 x 3-pin system fan connector

Ordering Information

Part No.	Description
IMBA-H610-R10	ATX motherboard supports LGA1155 Intel® Core i7/i5/i3/Pentium / Celeron CPU with Intel H61, DDR3, VGA/DVI-D, dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, HD Audio and RoHS
19800-003100-300-RS	Dual-port USB cable with bracket
32205-003800-300-RS	RS-422/485 cable, 200mm
19800-000051-RS	RS-232 cable, 230mm
32102-000100-200-RS	SATA power cable
19800-000049-RS	LPT cable
TPM-IN01-R11	20-pin Infineon TPM module, software management tool, firmware V3.17
CPU-DT-i5-2500T	Intel Core i5-2500T processor, LGA1155, quad core 2.3GHz, 6M cache, 45W, compatible with CF-1156C-RS CPU cooler
CPU-DT-i5-2390T	Intel Core i5-2390T processor, LGA1155, dual core 2.7GHz, 3M cache, 35W, AMT, compatible with CF-1156C-RS CPU cooler
CPU-DT-i3-2120T	Intel® Core i3-2120T processor, LGA1155, dual core 2.6GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU co
CPU-DT-P-G630T	Intel Pentium G630T processor, LGA1155, dual core 2.3GHz, 3M cache, 35W, compatible with CF-1156C-RS CPU cooler
CPU-DT-C-G440	Intel® Celeron G440 processor, LGA1155, single core 1.6GHz, 1M cache, 35W, compatible with CF-1156C-RS CPU coole
CF-1156A-RS-R11	High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W
CF-1156C-RS	LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45W
CF-1156D-RS	LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65W
CF-1156E-RS-R11	High-performance LGA1155/LGA1156 cooler kit, 95W


The most popular products:

775 Passive CPU Cooler 478 Active CPU Cooler AVS-1016C

PCISA-945GSE IPC-1025 PLUS HTPCI34010U

Our Services

FAQ

1.What's your minimum order?

A: Our minimum order quantity(MOQ) is 1pcs.

2.Can you provide OEM service?

A: Sure, you can choose RAM, storage, wifi, interface port and OS freely

3. Can you arrange the shipment? Since it's my first time to buy from China.

A: Sure, we can arrange a trustworthy shipping company the arrange the shipment for you!

4. Can you put my brand name (logo) on these products?

Yes,.We can support OEM/ODM service, the process of customization is following:

1) provide your specific requirement.

2) our design engineer draw the design draft.

3) you confirm the design draft.

4) we start produce it.

Please contact me any time , if you have any problems! We will provide you the best service!

Manager: Fei

Tel: 0755-23771791

Skype: feicenwang

E-mail:

Wechat: 279351516

QQ: 3191836597
