Specifications
1.Easy to operate2.Shaking table to recovery the different concentrate
3.Ore beneficiations
4.Sample testing
Energy saving portable shaking table with good quality
1. Application of shaking table for sale
Shaking table for sale is one of the main equipments of gravity concentration. Gravity Concentration Equipment is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. Also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.037 millimeters.
2. Working principle of shaking table for sale
The working principle of shaking table for sale is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
3. Features of shaking table for sale
- High recovery ratio
- High concentration ratio
- Easy installation
- Simple operation
- Deck constructed of fiber glass
- Three different decks to choose
- Long working life
- Adjustable stroke length and speed
4. Technical parameter of shaking table for sale
| Model | 6s-7.6 | 6s-4.08 | 6s-1.95 | 6s-0.5 | ||||
| Deck type | Coarse ore deck | Fine sand deck | Slime deck | |||||
| Benefication Area(m2) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | ||
| Deck size | Length(mm) | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 | |
| Transmission end width (mm) | 1855 | 1855 | 1855 | 1320 | 1050 | 500 | ||
| Concentrate end width (mm) | 1546 | 1546 | 1546 | 110 | 850 | 430 | ||
| Maximum feeding size(mm) | 2 | 0.5 | 0.15 | Sand -2 Slime-0.1 | Sand -2 Slime-0.074 | Sand -2 Slime-0.074 | ||
| Feeding amount | 0.8-1.5ton/h | 0.8-1.5ton/h | 0.8-1.5ton/h | 0.4-1.5t/h | 0.3-0.8t/h | 0.05-0.2t/h | ||
| Feeding density(%) | 25-30 | 20-25 | 15-25 | 10-30 | ||||
| Stroke(mm) | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 | ||
| Frequency(F) | 45-220 | 53-250 | 60-280 | 210-320 | 250-450 | 280-460 | ||
| Water added | 1-3t/h | 1-3t/h | 1-3t/h | 0.4-2t/h | 0.2-1t/h | 0.1-0.5t/h | ||
| Transverse slope of deck | 2°30-4°30 | 1°30-3°30 | 1°-2° | 0-10° | 0-8° | 0-10° | ||
| Longitudinal slope of deck | 1.4 | 0.92 | --- | --- | --- | --- | ||
| Cross-section shape of deck | rectangular | saw-tooth | triangle | --- | --- | --- | ||
| Motor power(kw) | 1.1 | 0.55 | ||||||
| Transmission mechanism | Eccentric linkage | |||||||

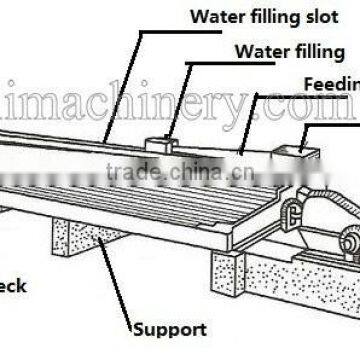

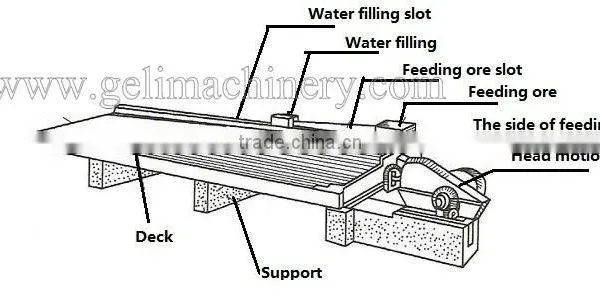

5. Structure of Gold Shaking Table Machine

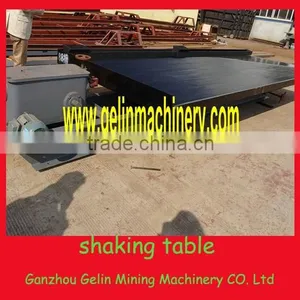

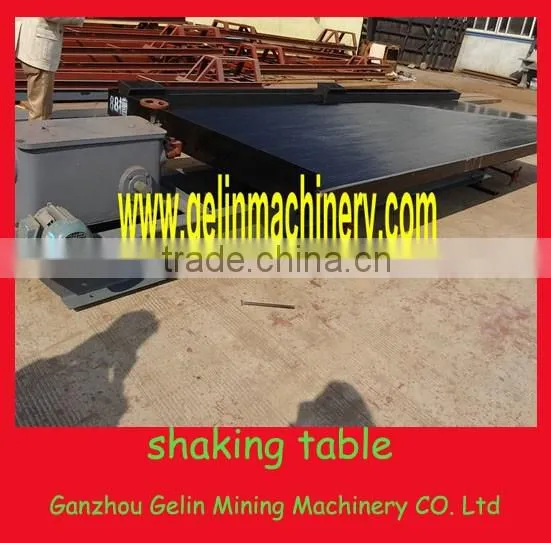

6.Pictures of golding shaking table
1. We will design equipment for clients, based on client's working condition.
2. Our engineer can go abroad to install/maintain mining machine.
3. 1 Year Warranty is provided, and spare parts supply and maintenance guidance for lifetime
4. Strick testing before shipment
1.customers visited our company
2.Other mining machines of our company.
3.The honor of our company
Welcome to contact me in your free time!
