•Typical applications include creating water fountains with LED lighting, pumping water for water features and waterfalls and conducting pond water filtration and aeration.
•The SPBL20-501210A solar water pump system consists of a DC brushless water pump,a solar panel module,a backup battery and a LED fountain light.
•Solar energized, maintenace free, cost free and easy to install.
•No failure-prone carbon brush or shaft seal so that a robust and long service life could be expected.
•Battery back up, runs perfectly on overcast day and in the night.
•Ceramic shaft, runs steadily and quietly.
•Designed and manufactured to have high power efficiency.
•Cost-effectiveness, competitive price.
Item No. |
SPBL20-501210A |
||||||||
Description |
Solar water pump system |
||||||||
Category |
solar pump kit |
||||||||
| |||||||||
Product Summary | |||||||||
Solar panel |
Solar panel item |
GSP20-36 |
|||||||
Peak power |
20W |
||||||||
Peak power voltage |
17.28V |
||||||||
Peak power current |
1.157A |
||||||||
Pump |
Pump item |
BP501210A-L |
|||||||
Maximum pump head |
3.2m (10.5ft) |
||||||||
Maximum flow rate |
1560L/H (412.1GPH) |
||||||||
Cable length |
5m (16.4ft) |
||||||||
nozzle item |
NA03 |
||||||||
Battery back-up |
Item No |
SBB12-7 |
|||||||
Extension cord length |
5m (16.4ft) |
||||||||
Battery type |
Lead Acid |
||||||||
Battery capacity |
12V, 7Ah |
||||||||
Optional LED color |
refer to accessory series |
||||||||
Flow adjustable |
yes |
||||||||
Dry run protection |
no |
||||||||
Master carton size |
54X37X27cm |
||||||||
Quantity per carton |
1pcs |
||||||||
Master carton G.W |
8kg |
||||||||
Quantity per 20 container |
512pcs |
||||||||
Quantity per 40 container |
1056pcs |
||||||||
Warranty |
3years |
||||||||
| |||||||||
Litres per hour - At various pumping heights (Head) | |||||||||
Operating |
@ 0m |
@0.5m |
@0.75m |
@1.0m |
@1.5m |
@2.0m |
@2.5m |
@3.0m |
Max height |
12V |
980 |
550 |
300 |
0 |
|
|
|
|
1.0m |
18V |
1360 |
1070 |
840 |
755 |
420 |
60 |
0 |
|
2.1m |
24V |
1560 |
1480 |
1200 |
1190 |
930 |
690 |
430 |
50 |
3.2m |
| |||||||||

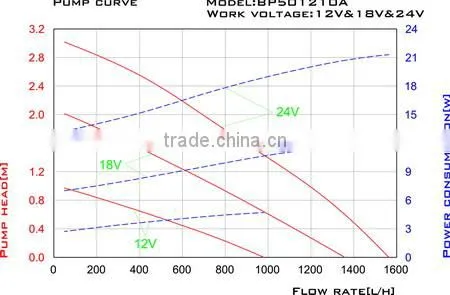

Pump Curve | |||||||||
| |||||||||
Overview | |||||||||
|
| |||||||||
