Submersible Water Pump (SP20-501210)

Submersible Water Pump (SP20-501210) photo-1
US$ 1 - 100 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Solarever
Model Number:
SP20-501210
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Solarever
Model Number SP20-501210
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Nonstandard
Fuel Other, Electric
Pressure Low Pressure
Application Submersible

Specifications

1.Ideal for pond fountain,water feature,pond filtration.
2.Durable brushless motor.
3.Solar powered,safe and easy to install.

•Typical applications include creating garden pond fountains, pumping water for garden water features and conducting pond water filtration and oxygenation.

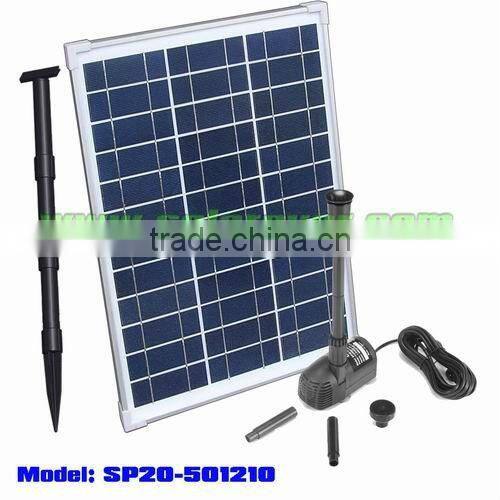

•The submersible water pump kit consists of a DC brushless water pump and a solar panel module.

•Solar energized, maintenance free, operation cost free, environment friendly and easy to install with no need for wiring work. More importantly,  it is much safer for kids thanks to its low working voltage.

•Brushless motor with no failure-prone carbon brush or shaft seal so that a robust and long service life could be expected.

•Ceramic shaft, runs steadily and quietly.

Rohs and CE certified, safe and green.

•IP68 waterproof rating thanks to the brushless motor.

•Designed and manufactured to have high power efficiency.

•Cost-effectiveness, competitive price.



Item No.

SP20-501210 (Old item No.: SBL1501)

Description

Solar submersible water pump kit

Category

Solar pump kit



Product Summary

Solar panel

Solar panel item

GSP20-36

Peak power

20W

Peak power voltage

17.28V

Peak power current

1.157A

Pump

Pump item

BP501210

Maximum pump head

2.1m (6.9ft)

Maximum flow rate

1360L/H (359.3GPH)

Cable length

5m (16.4ft)

nozzle item

NA03

Flow adjustable

no

Dry run protection

no

Individual box size

53X36X22cm

Individual box G.W

3.5kg

Master carton size

55X47X39cm

Quantity per carton

2pcs

Master carton G.W

8kg

Quantity per 20 container

960pcs

Quantity per 40 container

2000pcs

Warranty

3years



Litres per hour - At various pumping heights (Head)

Operating
voltage

@ 0m

@0.5m

@0.75m

@1.0m

@1.5m

@2.0m

@2.5m

@3.0m

Max height

18V

1350

1070

840

755

420

60

0



2.1m

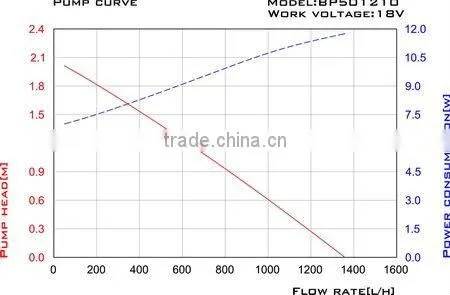

Pump Curve
