Help CenterSolar Water Pump (SPB20-501210D)
Related Products
-
Solar Water Pump System for Pond (SPB20-501210)US$ 1 - 100MOQ: 1 Set -
DC Brushless Water Pump (SP20-501210A)US$ 1 - 100MOQ: 1 Set
-
Submersible Water Pump (SP20-501210)US$ 1 - 100MOQ: 1 Set
-
Solar Submersible Pump (SP8-501210D)US$ 1 - 100MOQ: 1 Set
-
Solar Garden Pump (SP8-501210A)US$ 1 - 100MOQ: 1 Set
•Typical applications include creating garden fountain, pumping water for garden water feature or waterfall and performing pond water filtration and aeration.

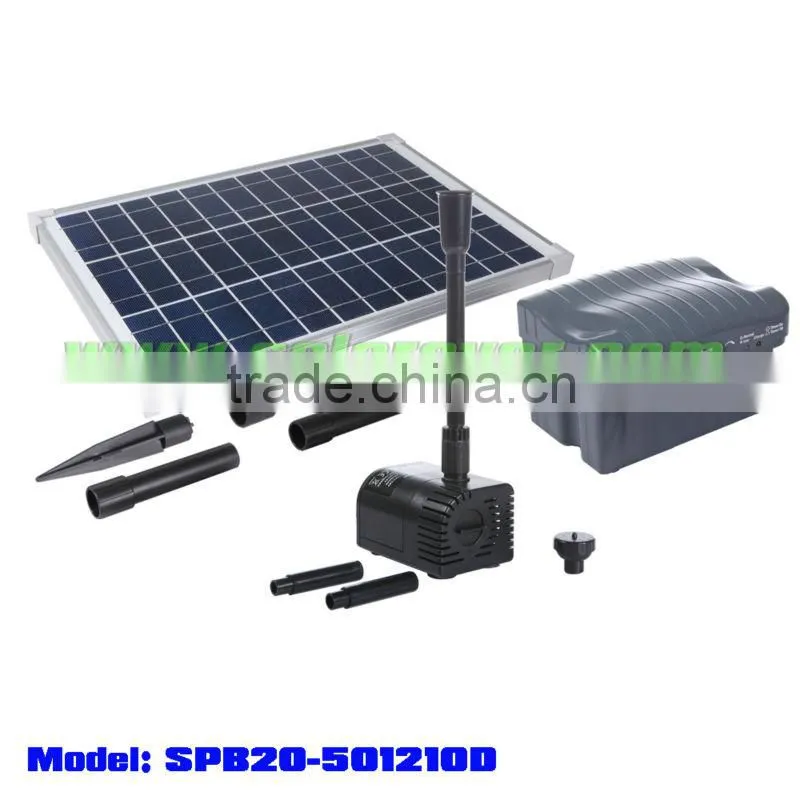

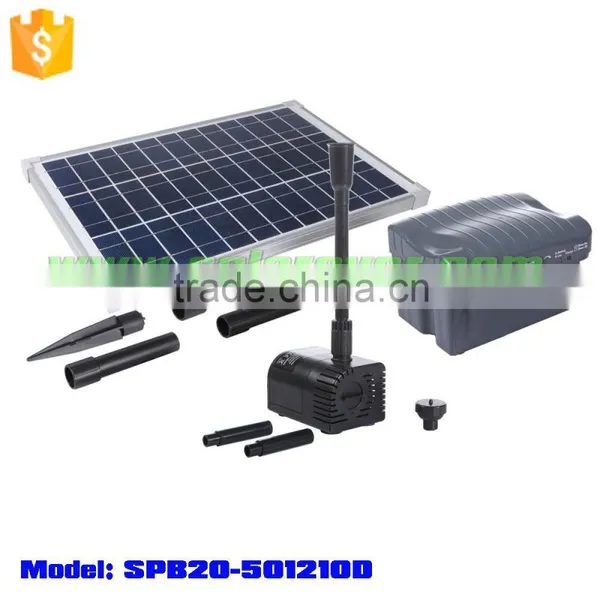

•The solar water pump kit consists of a DC brushless dry run protected water pump,a solar panel module and a backup battery.
•Solar powered, operation cost free, easy to install with no need for wiring, environment friendly and maintenance free. Most importantly, it is much safer for the kids due to its low working voltage.
•Self-invented unique dry run protection technology prevents the pump from burning out when fountain or pool dries out.
•Locked rotor protection prevents the pump from possible failure when pump is blocked by pond debris.
•Brushless motor with no failure-prone carbon brush or shaft seal so that a robust and long service life could be expected.
•Battery backup, runs perfectly on overcast day and in the night.
•Ceramic shaft, runs steadily and quietly.
•Rohs and CE certified, safe and green.
•IP68 waterproof rating on pump thanks to the brushless motor.
•Designed and manufactured to have high power efficiency.
•Cost-effectiveness, competitive price.
Item No. |
SPB20-501210D |
||||||||
Description |
Solar brushless pump kit |
||||||||
Category |
Solar pump kit |
||||||||
| |||||||||
Product Summary | |||||||||
Solar panel |
Solar panel item |
GSP20-36 |
|||||||
Peak power |
20W |
||||||||
Peak power voltage |
17.28V |
||||||||
Peak power current |
1.157A |
||||||||
Pump |
Pump item |
BP501210D |
|||||||
Maximum pump head |
3.2m (10.5ft) | ||||||||
Maximum flow rate |
1560L/H (412.1GPH) |
||||||||
Cable length |
5m (16.4ft) |
||||||||
nozzle item |
NA03 |
||||||||
Battery back-up |
Item No |
SBB12-7 |
|||||||
Extension cord length |
5m (16.4ft) |
||||||||
Battery type |
Lead Acid |
||||||||
Battery capacity |
12V, 7Ah |
||||||||
Flow adjustable |
yes |
||||||||
Dry run protection |
yes |
||||||||
Master carton size |
54X37X27cm |
||||||||
Quantity per carton |
1pcs |
||||||||
Master carton G.W |
8kg |
||||||||
Quantity per 20 container |
512pcs |
||||||||
Quantity per 40 container |
1056pcs |
||||||||
Warranty |
3years |
||||||||
| |||||||||
Litres per hour - At various pumping heights (Head) | |||||||||
Operating |
@ 0m |
@0.5m |
@0.75m |
@1.0m |
@1.5m |
@2.0m |
@2.5m |
@3.0m |
Max height |
12V |
980 |
550 |
300 |
0 |
|
|
|
|
1.0m |
18V |
1360 |
1070 |
840 |
755 |
420 |
60 |
0 |
|
2.1m |
24V |
1560 |
1480 |
1200 |
1190 |
930 |
690 |
430 |
50 |
3.2m |
| |||||||||
Pump Curve | |||||||||
| |||||||||
Overview | |||||||||
|
| |||||||||
