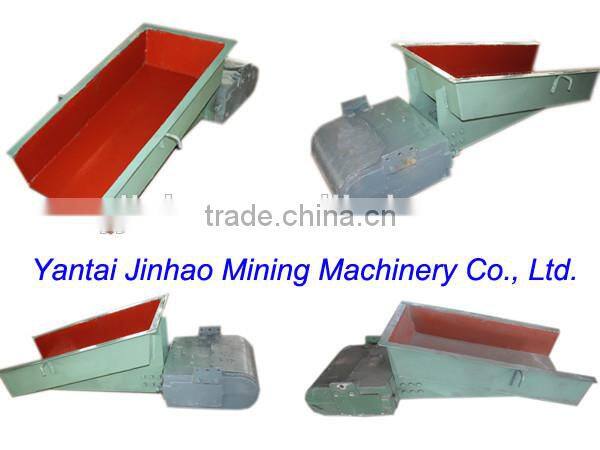

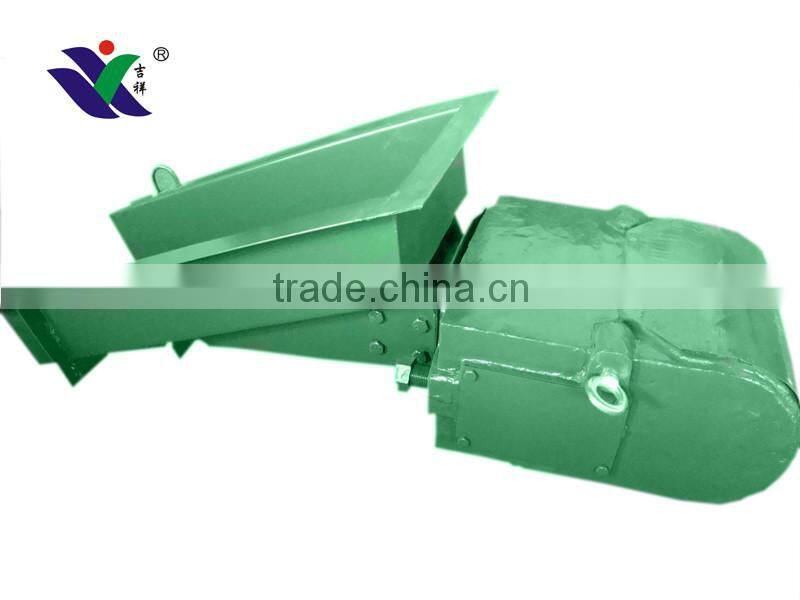

Effective Mineral electromagnetic vibrating feeder
Electromagnetic Vibrating Feeder—introduction
A feeder with simple structure and suitable for non-sticky materials
Electromagnetic Vibrating Feeder—technical parameters
| Model | productivity(≤t/h) | Feed size | dulble vibration amplitude | Power Supply | electric current(A) | power | complate set | weight | Dimension(mm) | |||||||||
| horizontal 0° | -10° | (≤mm) | (mm) | (V) | working current | rated current | (kw) | model | (kg) | L1 | L2 | L3 | L4 | H1 | H2 | B1 | B2 | |
| GZ0 | 5 | 7 | 50 | 1.75 | 220 | 1.34 | 1 | 0.06 | XK35 | 75 | 910 | 600 | 200 | 550 | 100 | 360 | 200 | 230 |
| GZ1 | 10 | 14 | 50 | 1.75 | 220 | 3 | 2.3 | 0.15 | XK35 | 146 | 1175 | 800 | 310 | 660 | 120 | 450 | 300 | 388 |
| GZ2 | 25 | 35 | 75 | 1.75 | 220 | 4.58 | 3.8 | 0.25 | XK35 | 217 | 1325 | 900 | 311 | 790 | 150 | 520 | 400 | 496 |
| GZ3 | 35 | 50 | 85 | 1.75 | 220 | 6.8 | 5.5 | 0.35 | XK35 | 300 | 1460 | 1000 | 350 | 870 | 175 | 580 | 450 | 550 |
| GZ4 | 50 | 70 | 100 | 1.75 | 220 | 8.4 | 7 | 0.45 | XK35 | 412 | 1615 | 1100 | 413 | 960 | 200 | 645 | 500 | 620 |
| GZ5 | 100 | 140 | 150 | 1.75 | 220 | 12.7 | 10.6 | 0.65 | XK35 | 656 | 1815 | 1200 | 465 | 1050 | 250 | 765 | 700 | 850 |
Capacity
Electromagnetic Vibrating Feeder —capacity
7~1700t/h
Advantages
Electromagnetic Vibrating Feeder —advantages
1,Transporting materials relying on electromagnetic vibrating
2,Stepless adjustment feeding
Small volume, light weight, simple structure, convenient installation, convenient repair, low operation cost
Adoption the principle of the mechanical vibration, and less energy consumption.
Change the volume of flow at any time
Centralized control and automatic control of production process
Small wear of feeding tank
The feeding tank made of alloy-steel plate could convey heat and corrosive materials
Electromagnetic Vibrating Feeder —application
It is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electric power, food and other industries. It is used for automatic matching, quantitative package and automatic regulating process. It can feed lump, granular and powdered materials from the storage silo or hopper to devices uniformly or quantitatively.
Electromagnetic Vibrating Feeder —principle
The electromagnetic vibrating feeder utilizes electromagnetic vibrating device to drive minerals to reciprocate in the direction of dip. When the vertical component of accelerated speed of feeder exceeds accelerated speed, minerals are tossed upward and leap forward in parabolic fashion. It takes 1/5 second to finish the rising and falling. The chute vibrates for one time and subsequently the minerals are tossed for one time. The chute vibrate at a frequency 3000/minute. Correspondingly, minerals are tossed upward and leap forward. So minerals can continuously and uniformly move forward and feeding is achieved.
.

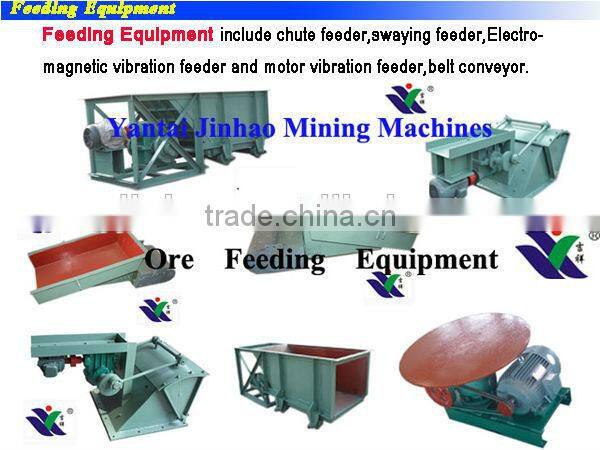

- Feeding equipment
- Screening equipment
- Crushing machine
- Grinding equipment
- Spiral classifier
- Floating equipment
- Stirred tank
- Thickening equipment
- Cyaniding equipment
- Gravity separation equipment
- Magnetic separator
- Hydrocyclone
- Filter equipment
We can provide customers with ore test, beneficiation plant design, equipments manufacturing, installation and commissioning maintenance service for all kinds of nonferrous metals, ferrous metals, and gold mine. Products apply to crushing machinery, screening machinery, milling equipment, classifying equipment, floatation cell, agitation tank, gravity separation equipment, magnetic equipment, thickening equipment, filtration equipment, leaching equipment for gold mine selection, gold-smelting equipment, dressing equipment for non-ferrous ore, cement equipment, feeding equipment and other mining equipment.
Q: Are you a manufacture or trading company?
A: We are a manufacturer with decades of years experience for all types ore dressing machinery.
Q: Where is your factory located? How can I visit it?
A: Our factory is located in Yantai, Shandong China, it is only 1-2 hours away from Beijing and Shanghai by air.
Q: What's the lead time?
A: Generally 15-30 days.
Q: How does your factory control product quality?
A: ISO9001 Certificated, independent quality control team in our factory. Third party certificated and factory audit accepted.
Q: Do you provide ODM/OEM service?
A: OEM/ODM is welcome.
Q: What about the payment terms??
A: FOB Yantai/ Qingdao Port. 30% deposit by T/T,70% before all shipment.
