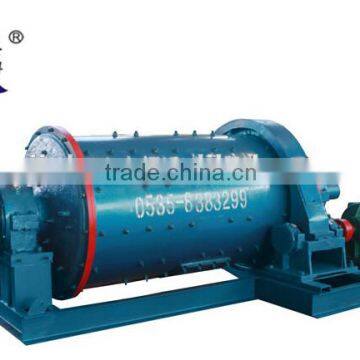

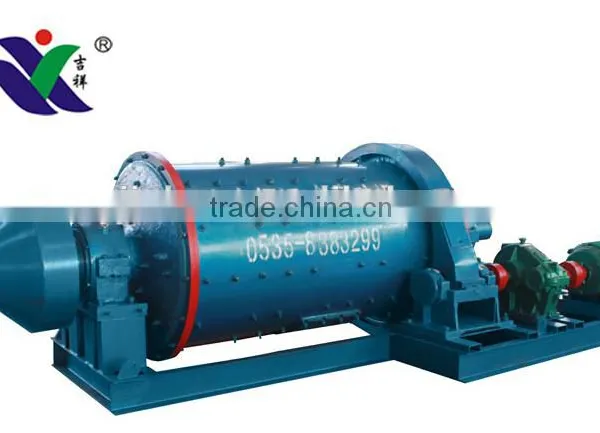

Mining Machinery Ball Mill Gold Mining Equipment

Mining Machinery Ball Mill Gold Mining Equipment thumbnail-1
Mining Machinery Ball Mill Gold Mining Equipment thumbnail-2
Mining Machinery Ball Mill Gold Mining Equipment photo-1
Mining Machinery Ball Mill Gold Mining Equipment photo-2
US$ 10,000 - 500,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Production Capacity:
100T/h or customized
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Yantai Jinhao Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Yantai Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Production Capacity 100T/h or customized
Place of Origin Shandong, China
Brand Name JIXIANG
Model Number Various
Voltage Customized
Power(W) depend on the model
Dimension(L*W*H) customized
Weight Depends on the model
Certification ISO 9001:2008
Warranty 1 year (without the quick-wear parts)
After-sales Service Provided Engineers available to service machinery overseas
Type Other, Leaching Tank

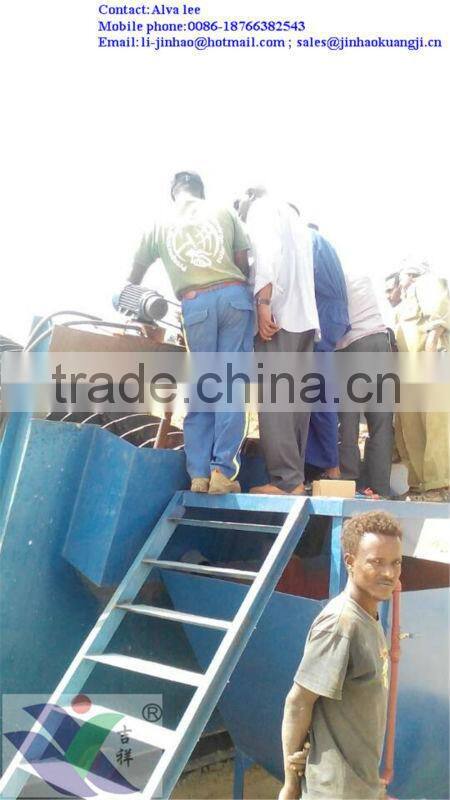

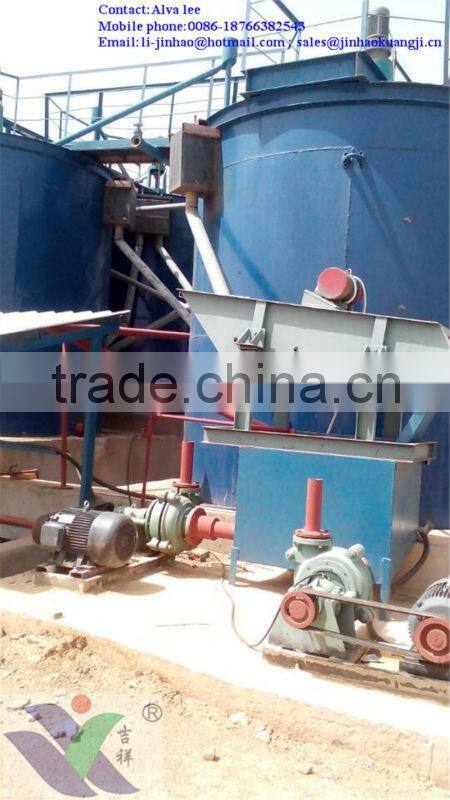

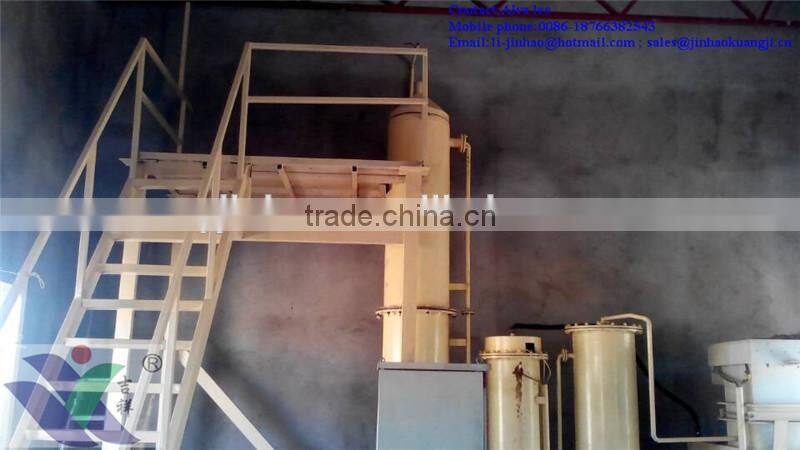

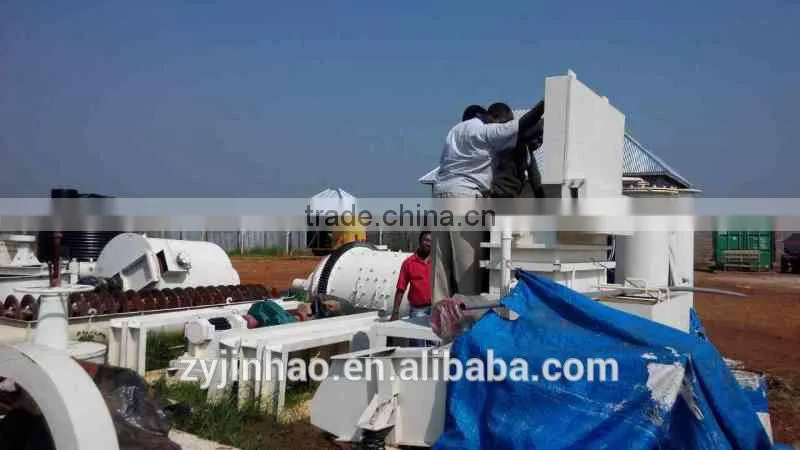

CIP plant is a very pouplar and useful plant for gold mining equipment in Africa,which is now used in Sudan,South Africa,Zimbabwe,Tanzania and many other countries,especially useful for people to get the gold away from the gold ore stone,you can get gold mud and gold bullion by using this whole plant,which recovery percentage of the gold can be up to more than 98%,which is a very cost effective plant for your choice.

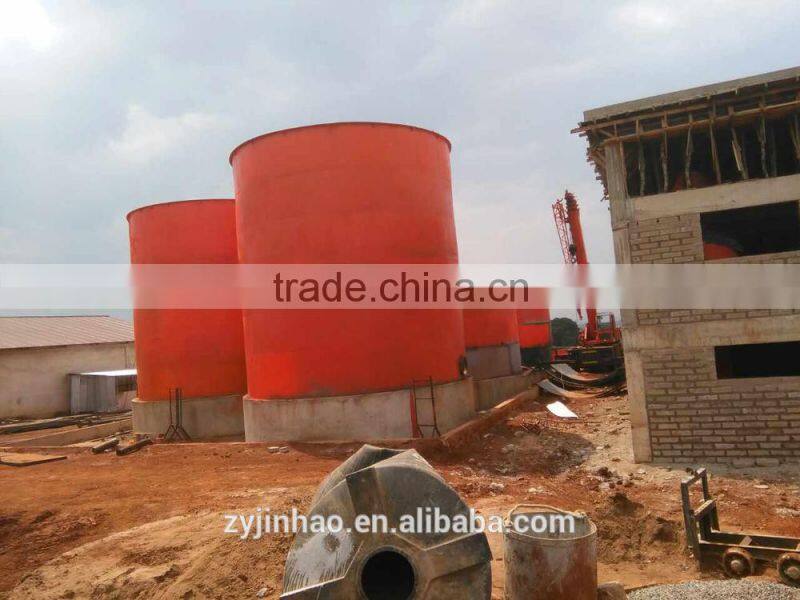

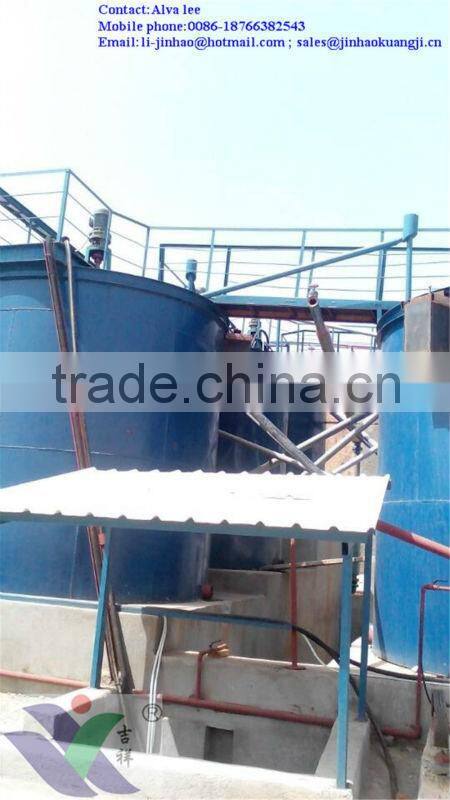

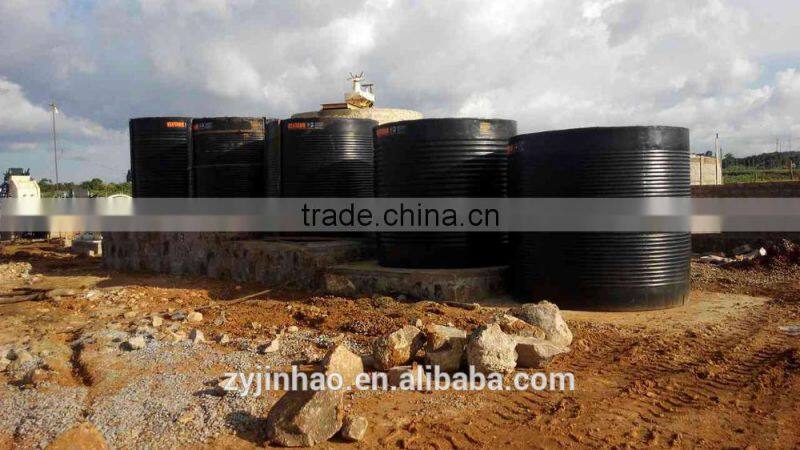

Introduction of double impeller efficient stirring carbon leaching tank



Details:

This product is used in carbon paste flow and cyanidation process. The carbon leaching tank should match other auxiliary devices like carbon-separating screen, and recessed impeller pump, etc. Its structural features: the upper and lower layer of impellers are of steel plate encapsulated with rubber, which are connected by means of bolts, with the features like good equilibrium, easy replacement, and long service life. The main shafts are divided into the upper layer and the lower layer, which are connected by means of locating flanges, able to reduce the lifting height; inflate at several points dispersingly, with good air mixing performance



Customers note for selection:

Planet cycloid reducing motor is usually adopted for driving, with the features like simple structure and low price. If gear worm drive is required, please order it specially and specify it.
Planetary cycloid speed reduction motor drive has simple structure. Please note it if you need worm gear drive mode.


technical parameters of double impeller efficient stirring carbon leaching tank:

Model
Tank specification diameter*height (mm)
Effective volume(m3)
Impeller speed
(r/min)
Impeller diameter(mm)
Feeding pipe diameter(mm)
Discharge pipe diameter(mm)
Planetary cycloid speed reducer
Weight(kg)
Model
Speed ratio
Matched motor(kw)
φ2.0×2.5
2000×2500
6
65
800
2-φ133
2-φ133
XLD2.2-4-29
29
2.2
2800
φ2.5×3.15
2500×3150
13
57
935
2-φ125
2-φ125
XLD2.2-4-29
59
2.2
3120
φ3.0×3.15
3000×3150
18.93
51
1130
2-φ150
2-φ150
XLD4-5-35
35
4
5300
φ3.15×3.55
3150×3550
24
43
1260
2-φ150
2-φ150
XLD4-5-35
35
4
5488
φ3.5×3.5
3500×3500
29
46
1310
2-φ150
2-φ150
XLD4-5-35
35
4
6646
φ3.55×4.0
3550×4000
35
36.3
1310
2-φ150
2-φ150
XLD4-5-35
35
4
7820
φ4.0×4.5
4000×4500
50
33.5
1500
2-φ150
2-φ150
XLD7.5-7-43
43
7.5
8285
φ4.5×5.0
4500×5000
71.67
33.5
1750
2-φ159×6
2-φ159×6
XLD7.5-7-43
43
7.5
10800
φ5.0×5.6
2000×2500
98
31
1900
2-φ159×8
2-φ159×8
XLD11-8-47
47
11
13340
φ5.5×6.0
2000×2500
112
31
2100
2-φ159×8
2-φ159×8
XLD11-8-47
47
11
18745
φ7.5×8.0
2000×2500
268.6
21
2900
2-φ159×8
2-φ159×8
XLD22-10-47
47
22
32796
φ8.0×8.5
2000×2500
342
16.4
3200
2-φ159×8
2-φ159×8
XLD22-11-59
59
22
42467
