Good Price Automatic Ro Water Treatment Plant Price

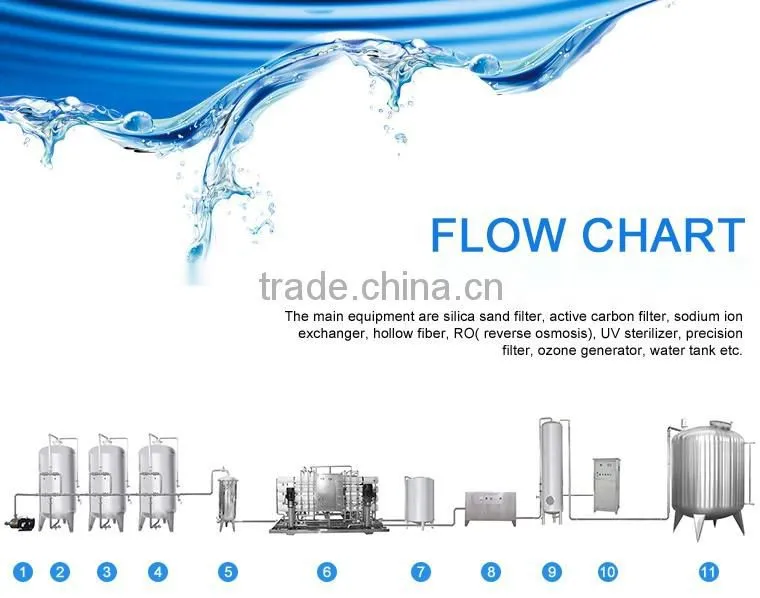

1.Water pump 5. Precision filter 9.Ozone mixing tower
2.Silica sand filter 6.Reverse osmosisi 10.Ozone generator

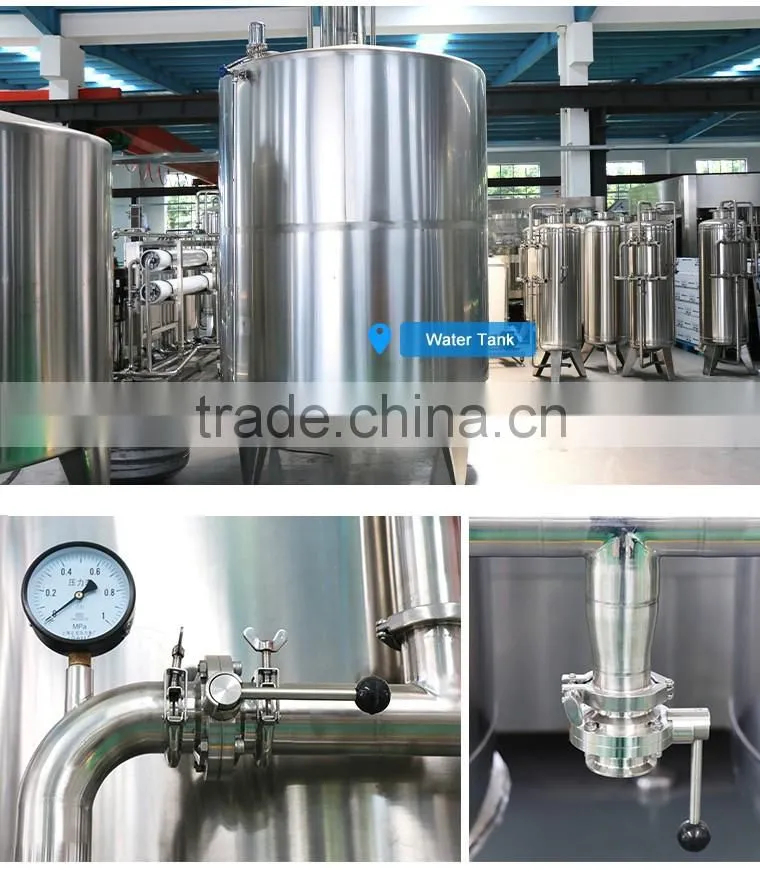

3.Active carbon filter 7.RO buffer tank 11.Water tank
4. Sodium ion exchanger 8.UV
| Product Name | Good Price Automatic Ro Water Treatment Plant Price |
| Item Type | Water treatment plant |
| Place of Origin | Jiangsu, China (Mainland) |
| Material | SS304 / SS316 |
| Capacity | 0.5-100 ton/hour or customized |
| Online of RO | TDS and PH Meter |
| Total disolved solids | Customized |
| Voltage | Customized |
| Dimension | Customized |
| Control | PLC Inverter |
| Suitable raw water | River, underground water, mountain water |
| Function | Water purification |
| Warranty | 12 months |
| Certification | CE,ISO,SGS |
First stage pretreatment.(Sand filter)
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants.
Third stage pretreatment (Resin softener)
Cationic resin used for water softening, primarily to remove hardness of water. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.
Fourth stage pretreatment (Micron filter)
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree.
RO system
The core equipment of water pump is imported and the membrane film is imported from Hydranautics in America. It is equipped with full set of clean unit. It has the features of simple structure, convenient operation and high technological level.

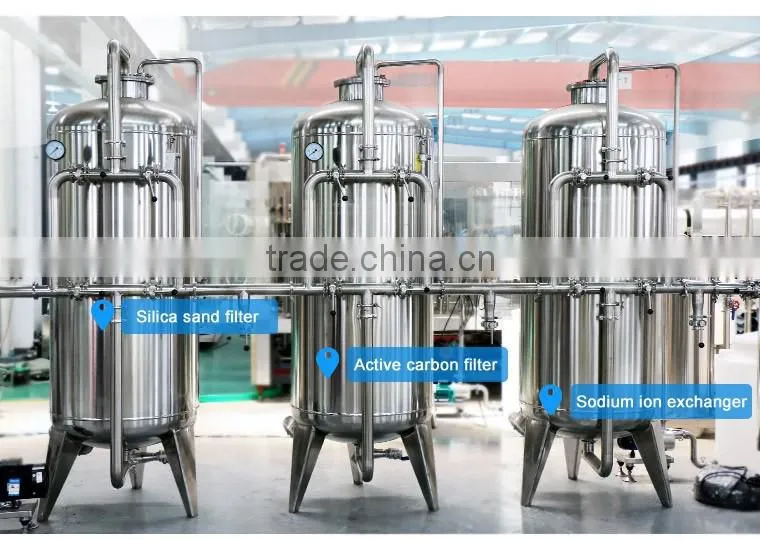

Silica sand filter
It can remove the suspended solids and gluten particles in the water, thus reduce the turbidity of water.
Active carbon filter
It can remove the pigment, smell and a large number of biological organisms in the water
Soften the water.
Sodium ion exchanger
It can remove calcium and magnesium ions in the water, so as to soften the water.Water filter tank-Use natural rubber inside,it will protect the stainless steel from silica sand and carbon material,make the filters work much much longer than normal.

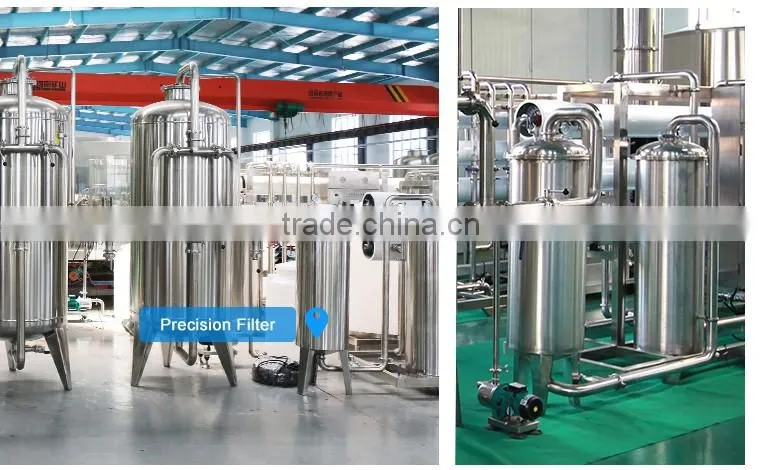

Precision filter
It can ensure that the granularity of the water into reverse osmosis membrane is less than 0.1um.

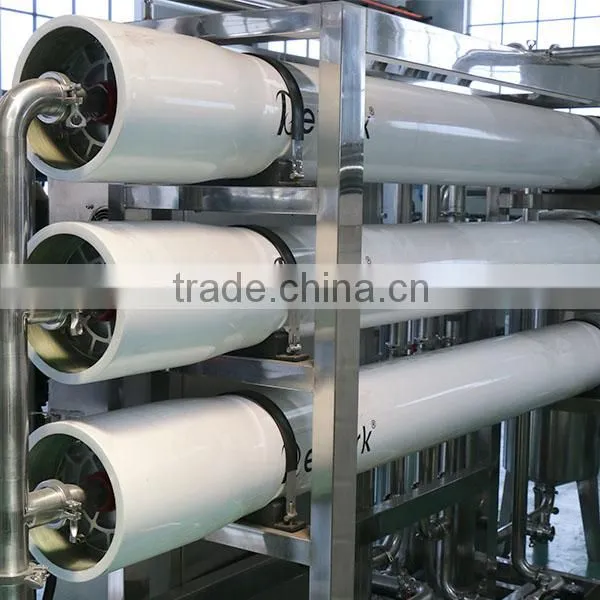

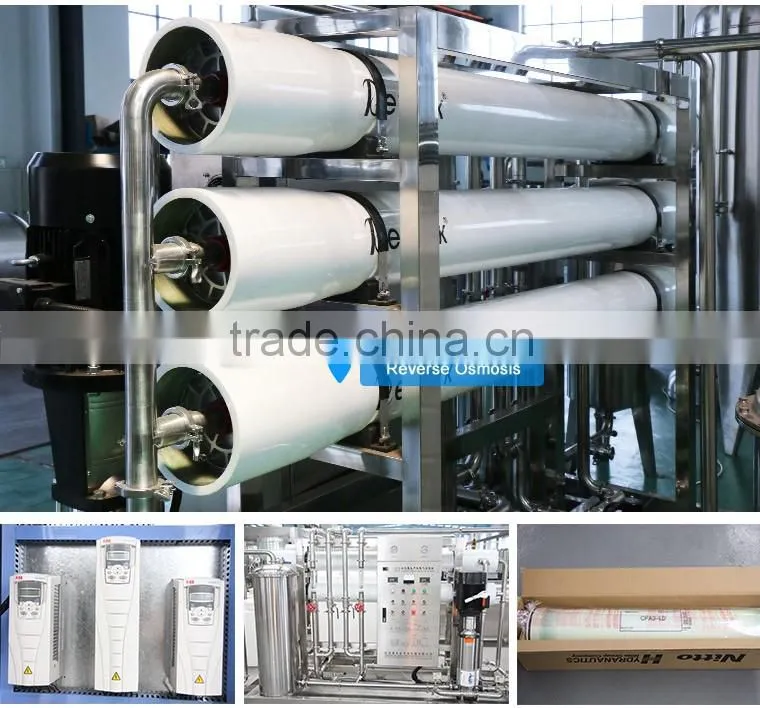

Reverse Osmosis
The Reverse Osmosis device is an equipment to purify the saline water with the action of pressure difference of semi-permeable membrane. It is called reverse osmosis, as it is counter to natural penetration direction. Difference materials have different osmotic pressures.
The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and organic materials, becoming the best first-choice choice equipment in the engineering of modern purified water, highly purified water and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintenance.
RO with reverse washing tank-RO is the heart of water treatment system,so we prepared the washing tank with clean the inside of RO to make the RO membranes work longer.

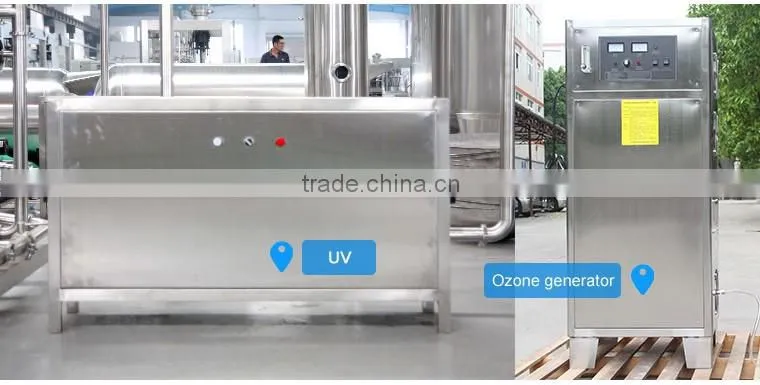

UV sterilize
It uses the UV to kill some bacteria that may also pass through the reverse osmosis system.
Ozone sterilizer
Some bacteria may not be killed by UV, the sterilizer uses ozone to kill those bacteria.We use stainless steel 316 for ozone tower,as it can resist Ozone very well than SS304,the working life will be much longer.
Features
1.Technology corona discharge quartz ozone cell
2.Adjustable Ozone output
3.Cooling way: advanced water-cooling
4. Inner air compressor and refrigerant dryer
5. Inner PSA oxygen generator unit

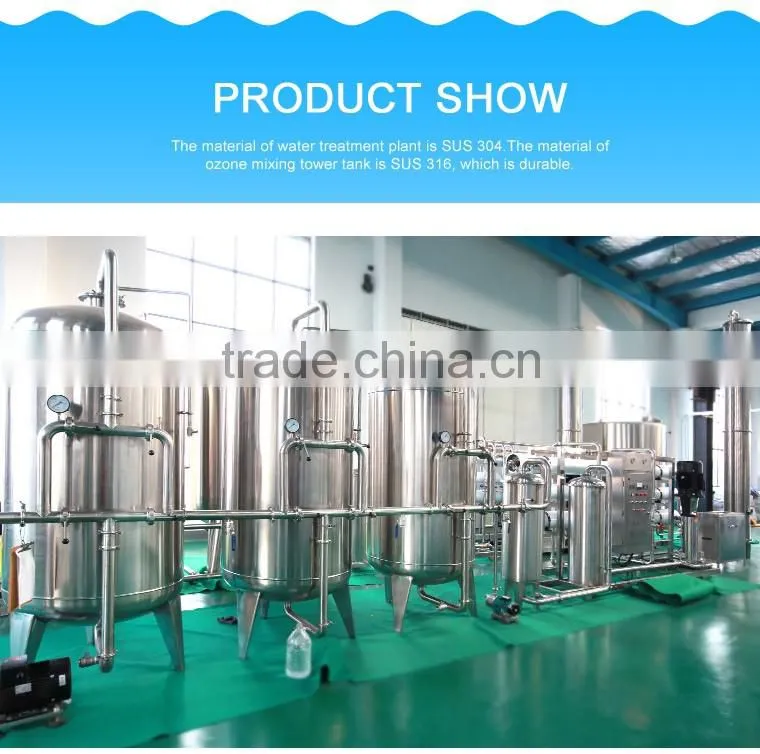

Durable material
The material of water treatment plant is SUS 304.The material of ozone mixing tower tank is SUS 316, which is durable.
Trade Terms |
EXW,FOB,CFR,CIF or others |
MOQ |
1set |
Port |
Shanghai port |
Shipment |
Ocean or air transportation |
Payment Terms |
L/C,T/T, Western Union, MoneyGram |
Payment condition |
30%T/T |
Supply Capability |
1 Set/Sets per Month |
Lead Time |
About 30 days |
Zhangjiagang King Machine Co., Ltd,is a direct manufacturer and exporter specializing in water treatment plants, beverage filling machine, packing machine, bottle blowing machine, injection moulding machine and spare parts of filling line.
Our factory was established in the year of 1995, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineer of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.
King Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply.
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
