Mini Vibrating Screen,moto Vibrating Shaker Vibrating Screen,high Quality Mini Vibrating Screen

Mini Vibrating Screen,moto Vibrating Shaker Vibrating Screen,high Quality Mini Vibrating Screen thumbnail-1
Mini Vibrating Screen,moto Vibrating Shaker Vibrating Screen,high Quality Mini Vibrating Screen photo-1
US$ 10,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
minerals, quarry, building materials, etc
Power Type:
Other, siemens
Contact Supplier Request Quote Chat Now
Shanghai Dingbo Heavy Industry Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application minerals, quarry, building materials, etc
Power Type Other, siemens
Capacity(t/h) 30-810 t/h
Place of Origin Shanghai, China
Brand Name Dingbo Machinery
Model Number YZS series
Power(W) 15-37 kw
Dimension(L*W*H) Choose
Weight 2.6-13 t
Certification ISO, CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

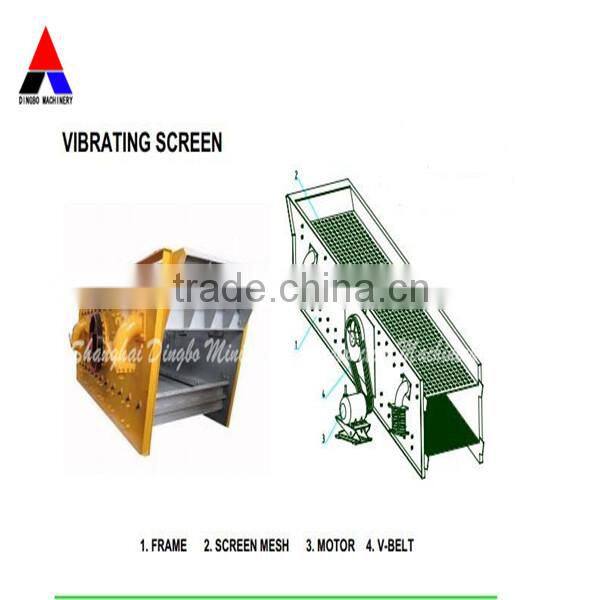

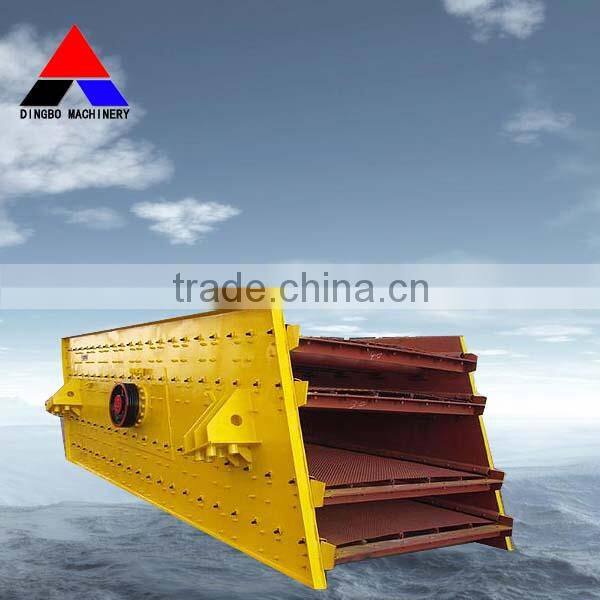

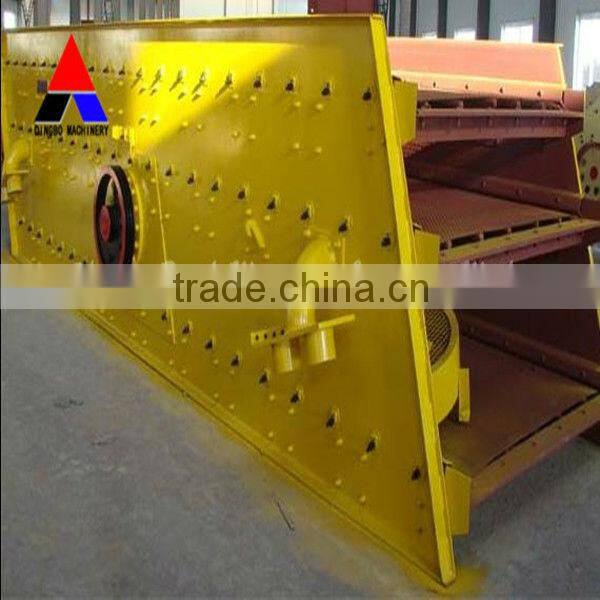

Circular Vibrating Screen



 Application:



The DingBo Circular Vibrating Screen is widely used for grading and screening materials in the fields of minerals, quarry, building materials, etc. Our vibrating screen has multi-layers and its screen size is various, it can screen out many kind of materials with different sizes. mini vibrating screen,moto vibrating shaker vibrating screen,high quality mini vibrating screen

Features and Benefits:



1.Stable performance under violent vibrating, for the fixing bolts are widely applied to connecting the main frame and the screen tightly.
2.Large handling capacity, which can reach 810 ton per hour.
3.Long flow line and various screening specifications.
4.Small amplitude, high frequency, large-inclination structure, high efficiency, large capacity, long service life, low power consumption and noise.







Specification:

Type
Screen Cloth Size(mm)
Screen Decks
Max Feeding Size (mm)
Capacity (t/h)
Power (kw)
Vibrational Frequency (r/min)
Double-Amplitude (mm)
2YZS-1548
4800×1500
2
400
30-275
15
870
5-9
3YZS-1548
4800×1500
3
400
30-275
15
870
5-9
4YZS-1548
4800×1500
4
400
30-275
15
870
5-9
2YZS-1848
4800×1800
2
400
56-330
18.5
870
5-9
3YZS-1848
4800×1800
3
400
56-330
18.5
870
5-9
4YZS-1848
4800×1800
4
400
56-330
18.5
870
5-9
2YZS-1860
6000×1800
2
400
65-586
22
870
5-9
3YZS-1860
6000×1800
3
400
65-586
22-30
870
5-9
4YZS-1860
6000×1800
4
400
65-586
22-30
870
5-9
2YZS-2160
6000×2100
2
400
81-720
37
730
5-9
3YZS-2160
6000×2100
3
400
81-720
30-37
730
5-9
4YZS-2160
6000×2100
4
400
81-720
30-37
730
5-9
2YZS-2460
6000×2400
2
400
100-810
37
770
5-9
3YZS-2460
6000×2400
3
400
100-810
37
770
5-9
4YZS-2460
6000×2400
4
400
100-810
37
770
5-9

Note: This specification is just for reference, any changes are subject to the products..
