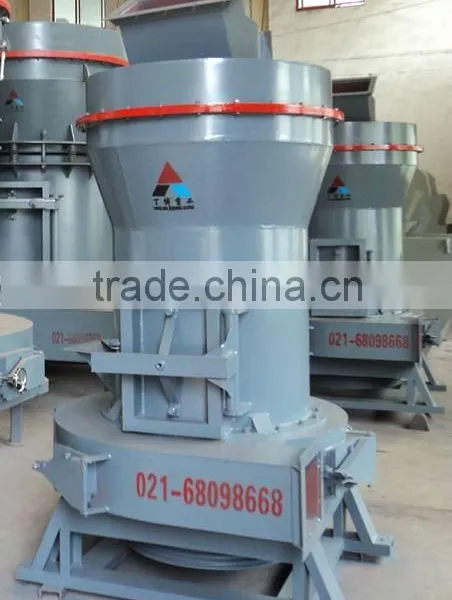

Small Type Coal Raymond Mill YGM7815

Name: Small Type Coal Raymond Mill YGM7815
Brand: Dingbo Machinery
SKU: 116658429
Availability: InStock

Shanghai Dingbo Heavy Industry Machinery Co., Ltd.

5Yrs

US$ 110,000 - 120,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Powder Grinding Mill, Raymond Mill

Application:

Construction, GCC,CACO3,limestone,zeolite,dolomite,marble,barite and other stones

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Powder Grinding Mill, Raymond Mill

Application Construction, GCC,CACO3,limestone,zeolite,dolomite,marble,barite and other stones

Motor Type AC Motor

Power(W) 18500

Capacity(t/h) 1-3

Place of Origin Shanghai, China

Brand Name Dingbo Machinery

Model Number YGM7815

Dimension(L*W*H) 4300x3500x5100mm

Weight 6.5t

Certification ISO9001,CE

Warranty 1-2 years

After-sales Service Provided Engineers available to service machinery overseas

YGM7815 Mill ,Powder Grinding Mill ,High Pressure Suspension Grinding Mill,Higher,Faster and Stronger Grinder,Grinding Mill,Raymond Mill Feldspar Grinder,Calcite Grinding Mill,Bauxite Pulverizer ,Powder Grinding mill,Powder Grinder of High Pressure Suspension Grinding Mill. Shanghai Dingbo Raymond Grinding Mill Description
The grinding processing materials can be grinding quartz, feldspar, calcite, talc, barite, fluorite, rare earths, marble, ceramic, aluminum bauxite, manganese ore, iron ore, copper ore, phosphate rock, red iron oxide, zircon sand, slag, cement clinker, activated carbon, dolomite, granite, garnet, iron oxide yellow, bean cake, chemical fertilizer , compound fertilizer, fly ash, bituminous coal, coke, lignite, Ling U.S. sand, chromium oxide green, gold,fluorspar, bentonite, , thermal insulation, materials in the 9.3 Mohs hardness below 6% moisture in a variety of non-explosive mineral materials processing.




Shanghai Dingbo Grinding Mill Features
1.The Raymond Mill grinding roller pressure on the material under the action of the spring in the high-pressure increase 800 - 1200kg. 2.The Raymond Mill on the Mohs hardness of less than 9.3 processing of mineral materials can be crushed. 3.The Raymond Mill wide range of product particle size, particle size up to 0.613 mm the thickest (30 mesh) particle size of generally up to 0.033 mm (425 mesh), few materials can reach 0.013 mm the smallest (1,000 head).

DBM Raymond Grinding Mill Technical Parameters List
Item				High Pressure Grinding Mill(Raymond Mill)
Model				YGM7815
Roller(pcs)				3
Diameter(mm)				Φ260
Roller Height(mm)				150
Inner Diameter(mm)				780
Ring Height(mm)				150
Max Input Size(mm)				15
Discharging Size(mm)				0.613-0.033(80Mesh-325mesh)
Capacity(t/h)				1-3/h
Motor(kw)				18.5
Overall Dimension(mm)				4300×3500×5100
