Specifications
silica sand ball mill,small experiment ball mill,continuous ball millCertification : CE & ISO
Motor Brand: Siemens
Could be
ball mill machine,ball mill for copper,fine ball mill machine :
Grinding Mills Key Specifications/Special Features:
Specifications:
Maximum weight of balls: 137T
Input size: ≤25mm
Output size: 0.074 to 0.4mm
Power: 800KW
Capacity: 0.5 to 2T/hour
Weight: 3.4T
Ball Mill Grinder Specification:
Model |
Max Feeding Size (mm)
|
Output Size (mm) |
Ball Load (t) |
Rotary Speed (r/min) |
Capacity (t/h) |
Power (kw) |
Weight (t) |
900×1800 |
≤15 |
0.075-0.89 |
1.9 |
37 |
0.5-2 |
15 |
3.4 |
900×2100 |
≤15 |
0.075-0.4 |
2.3 |
37 |
0.4-2 |
18.5 |
3.9 |
1200×2000 |
≤25 |
0.075-0.4 |
3.85 |
35 |
1.1-2.5 |
30 |
7.78 |
1200×2400 |
≤25 |
0.075-0.4 |
4.6 |
35 |
1.3-3.2 |
30 |
8.65 |
1200×2800 |
≤25 |
0.075-0.4 |
5.4 |
35 |
1.5-3.7 |
37 |
10.02 |
1200×4500 |
≤25 |
0.075-0.4 |
8.6 |
35 |
2.7-6.79 |
45 |
14 |
1500×3000 |
≤25 |
0.047-0.4 |
9 |
29 |
3.3-8.2 |
75 |
14.122 |
1500×4500 |
≤25 |
0.047-0.4 |
10.5 |
29 |
3.3-8.5 |
75 |
15.636 |
1500×5700 |
≤25 |
0.047-0.4 |
13.5 |
29 |
4.5-12 |
90 |
20 |
Here are the Working Principle of Ball mill:
This Ball milling machine, a horizontal type and tubular running, has two warehouses.
The Ball milling machine runs along the outside gear. Materials spirally and evenly enter the first warehouse along the input hollow axis by input devices. In the warehouse, there is a ladder scale board or ripple scale board. Steel balls of different specifications are installed in the scale board of the Ball milling machine. When the barrel body rotates, centrifugal force is produced.
At the same time, the steel balls are carried to some height and then fall to grind and strike the material. After being grinded coarsely in the first warehouse, the material then enters into the second warehouse of the Ball milling machine for regrinding. In the end, the powder produced by the Ball milling machine is discharged by output material board.

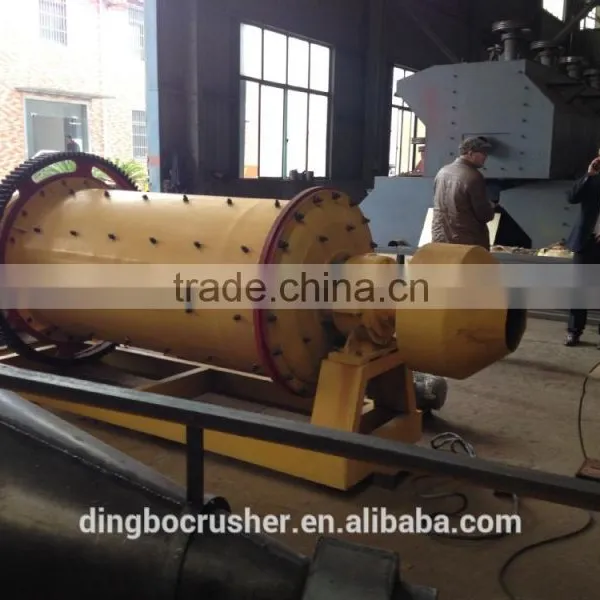

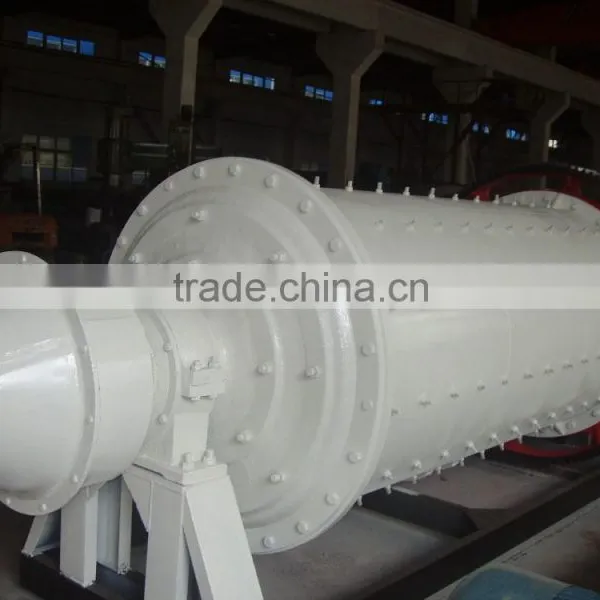

Picture for our ball mill grinder products
Picture for the final Powder products
Picture for the factory
