gold mining ball mill,gold mill,gold hammer mill
- 100 Set / Sets per Month
- Shanghai port
- T/T L/C D/P D/A
- gold milling machine,gold ball mill,gold ball mill for sale
- gold mill plant,gold pan mill,ball mill gold ore
- planetary ball mill,skew rolling mill for steel ball
- Jaw Crusher for Bangalore,India
- China Stone Jaw Crusher/China Jaw Stone Crusher/Jaw Stone Crusher from China
- Jaw Crushers PE600X900 From China
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | Other, Siemens |
Power(W): | 800 | Capacity(t/h): | 10-15 | Place of Origin: | Shanghai, China |
Brand Name: | Dingbo Machinery | Model Number: | 900*1800 | Dimension(L*W*H): | 13900*4000*6200 |
Weight: | 3.4t | Certification: | CE& ISO | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
CE ISO Gold, Chromite, Magnetite, Copper ball mill Packing:The products will be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates-the big parts are wrapped by plastic sheeting
Product Description
CE ISO Gold, Chromite, Magnetite, Copper ball mill Mechanical structure
Ball from the main part to the feeding part, discharging part, turning part, transmission part (reducer, small transmission gear, motor, electric control). The hollow axis adopts the cast steel, lined with removable, rotary gear adopts casting hobbing process, the body inlaid cylinder liner wear, has good wear resistance. The machine running smoothly, reliable work.
The ball mill Host barrel drum is equipped with wear-resistant materials lining, carrying cylinder and maintain its rotating bearing, but also drive parts, such as motor and transmission gears, pulleys, V-belt.
Part called blades, is generally not a major member, in the feed end of the member within the feed port inner helix can be called the inner helical blades, the inner helix can also be called the inner helical blade in the discharge end member within the spout.
In addition, the discharge end of the auxiliary equipment, screw conveyor, the device will be called the spiral blade parts, but strictly speaking, it has not a ball mill parts.
According to the materials and methods of discharge, optional dry ball mill and wet lattice-type ball mill. Energy-saving ball mill, self-aligning double row radial spherical roller bearings, running resistance, significant energy saving effect. Cylinder part of the original cylinder discharge end increased by a tapered cylinder, both to increase the effective volume of the mill, and the allocation of medium barrel more reasonable. The products are widely used non-ferrous metals, ferrous metals, non-metallic mineral processing field and chemical industry, building materials industry for material grinding.
Mill Grinder Machine Specifications/Special Features:
Specifications:
Maximum weight of balls: 137T
Input size: ≤25mm
Output size: 0.074 to 0.4mm
Power: 800KW
Capacity: 0.5 to 2T/hour
Weight: 3.4T
Mill Grinder Machine Specification:
Model |
Max Feeding Size (mm)
| Output Size (mm) | Ball Load (t) | Rotary Speed (r/min) | Capacity (t/h) | Power (kw) | Weight (t) |
900×1800 | ≤15 | 0.075-0.89 | 1.9 | 37 | 0.5-2 | 15 | 3.4 |
900×2100 | ≤15 | 0.075-0.4 | 2.3 | 37 | 0.4-2 | 18.5 | 3.9 |
1200×2000 | ≤25 | 0.075-0.4 | 3.85 | 35 | 1.1-2.5 | 30 | 7.78 |
1200×2400 | ≤25 | 0.075-0.4 | 4.6 | 35 | 1.3-3.2 | 30 | 8.65 |
1200×2800 | ≤25 | 0.075-0.4 | 5.4 | 35 | 1.5-3.7 | 37 | 10.02 |
1200×4500 | ≤25 | 0.075-0.4 | 8.6 | 35 | 2.7-6.79 | 45 | 14 |
1500×3000 | ≤25 | 0.047-0.4 | 9 | 29 | 3.3-8.2 | 75 | 14.122 |
1500×4500 | ≤25 | 0.047-0.4 | 10.5 | 29 | 3.3-8.5 | 75 | 15.636 |
1500×5700 | ≤25 | 0.047-0.4 | 13.5 | 29 | 4.5-12 | 90 | 20 |
Working principle:
This grinding ball mill is horizontal type and tubular running device, has two warehouses. This machine is grid type and its outside runs along gear. The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device. In this warehouse , there is a ladder scaleboard or ripple scaleboard, and different specification steel balls are installed on the scaleboard, when the barrel body rotates and then produces centrifugal force ,at this time , the steel ball is carried to some height and falls to make the material grinding and striking. After grinded coarsely in the first warehouse, the material then enters into the second warehouse for regrinding with the steel ball and scaleboard. In the end, the powder is discharged by output material board and the end products are completed.

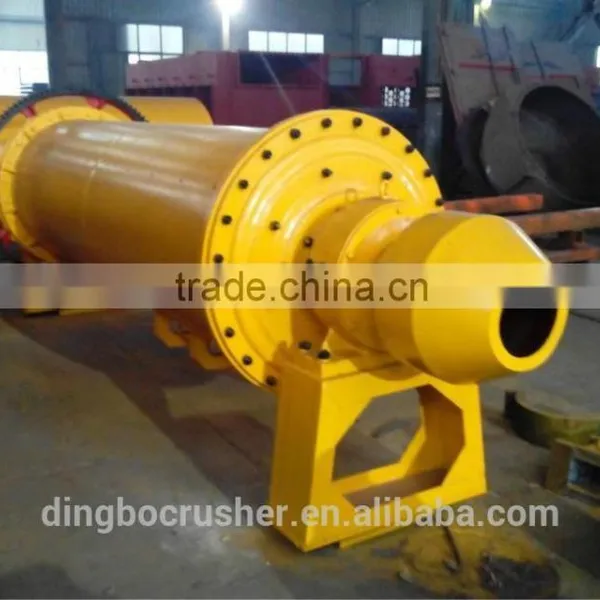

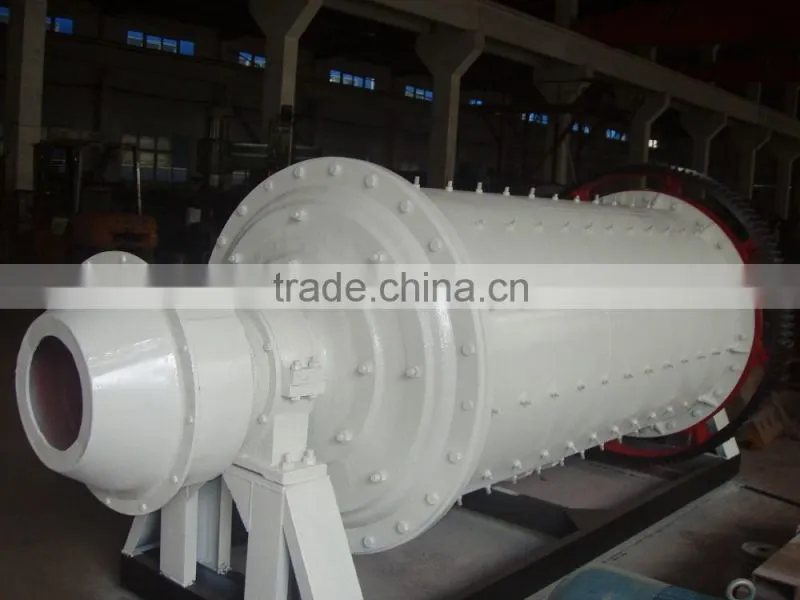

Picture for our ball mill grinder products
Picture for the final Powder products
Picture for the factory
Company Profile
Shanghai Dingbo Heavy Industry Machinery Co., Ltd., located in Pudong New District of Shanghai, China, is a large enterprise specialized in the research, manufacture and sales of stone crushing and screening plants,coarse grinding mill and ultrafine powder mill equipments, covering an area of forty thousand square meters.
As one of the pioneer manufacturers, we have been engaged in crushers and micron grinding mills for over 20 years. And we still insist on the communication and cooperation with prestigious scientific research institutions to strengthen the ability in machinery design, production, maintenance, testing and reform. With several years' efforts, Dingbo now grows to be a first-class manufacturer of machineries with a complete advanced production system for superb equipment.
Our popular products include:
1) Stone crushers: jaw crushers, hammer crushers, impact crushers, roller crushers, cone crushers, fine stone crushers, vertical combination crushers, vertical impact crushers and so on.
2) Grinding mills: ball mills, cement mills, ceramic mills, raymond mills, micropowder mills and so on.
3) Ore beneficiation machines: magnetic separators, flotation machines, spiral chutes, spiral classifiers, shaking tables, mixed barrels, jiggers, centrifugal separators and so on.
4) Screens: vibrating screens, drum screens, rotary screens, linear screens and so on.
