Super-fine Rotor Style Powder Separator
US$ 1 - 9,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Powder Separator
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rotary Dryer for Sand ,wet LimestoneUS$ 888 - 88,888MOQ: 1 Set -
Rotating Cylinder Drying Machine,Rotary Drier,rotating DyierUS$ 12,000 - 150,000MOQ: 1 Set
-
Chicken Manure Dryer,vacuum DryerUS$ 12,000 - 150,000MOQ: 1 Set
-
800*8000 High Quality Rotary Drum DrierUS$ 12,000 - 15,000MOQ: 1 Set
-
1000*10000 High Quality Rotary Drum DrierUS$ 12,000 - 15,000MOQ: 1 Set
Condition
New
Type
Other, Powder Separator
Motor Type
AC Motor
Power(W)
30kw
Capacity(t/h)
21-28t/h
Place of Origin
Shanghai, China
Brand Name
Dingbo Machinery, Dingbo Machinery
Model Number
KX500
Certification
ISO9001,CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Powder Separator:1.high efficiency
2.ISO9001,CE
3.Shanghai

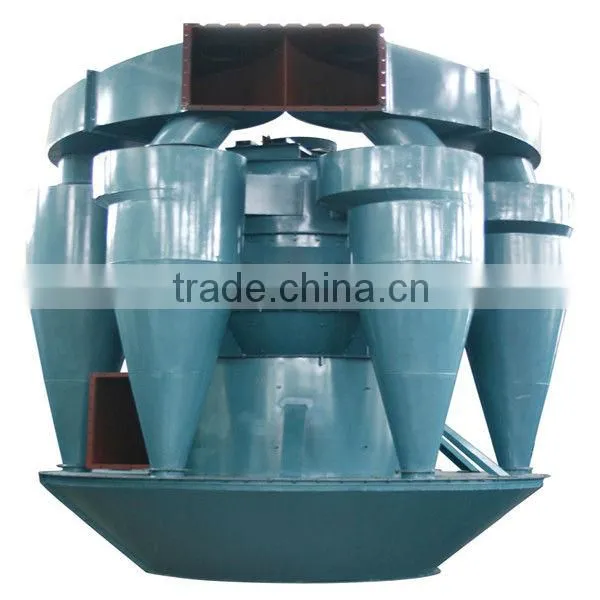

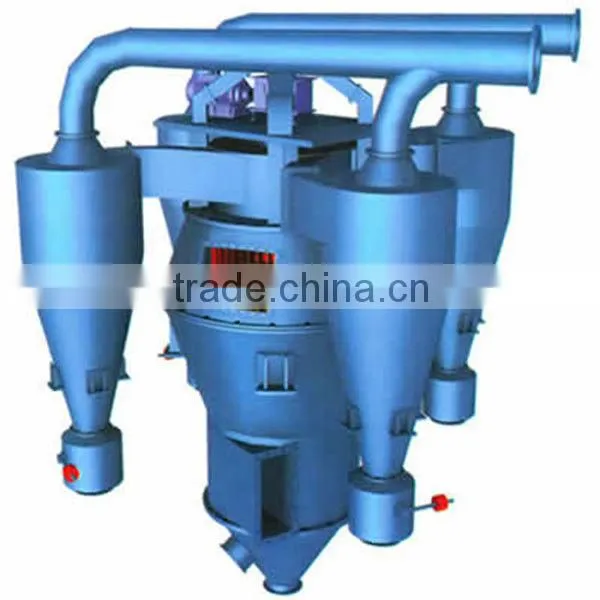

Super-fine Rotor Style Powder Separator
Product Description

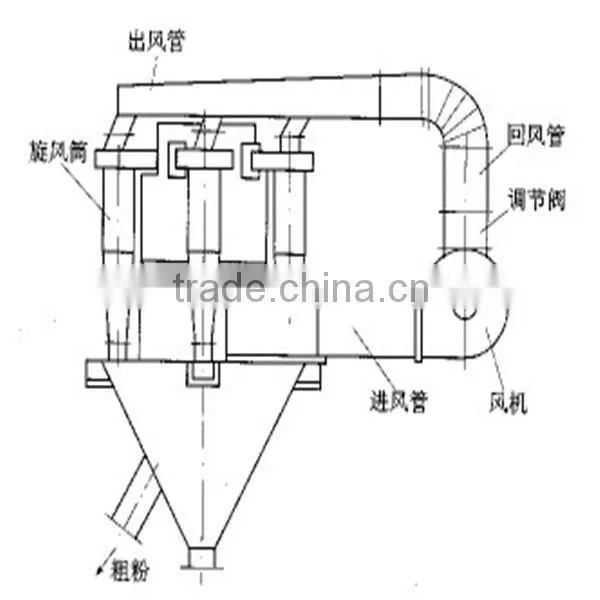

KX series Super-fine Rotor Style Powder Separator is made based on the domestic and foreign advanced technology and further design optimization.It has features of high effeciency which could be up to 85% in partical.Meanwhile,the fineness can be adjusted easily.
This equipment in Shanghai Dingbo can also be used to paint powder separation mechanism of sand dry process production technology, it is very convenient to control mechanism of sand stone powder content, in order to meet the different needs of users.
Main technical parameters
| Model | KX500 | KX600 | KX700 | KX800 | KX900 | KX1000 | KX1200 |
| Diameter of Mill(m) | Φ1.83 |
Φ2.2 |
Φ2.4 |
Φ2.6 |
Φ3.0 |
Φ3.5 |
Φ3.8 |
| Rotating Speed of Main Shaft(r/min) | 190-380 |
150-350 | 130-320 | 120-280 | 120-280 | 120-280 | 120-280 |
| Capacity(t/h) | 21-28 |
30-35 | 35-46 | 55-65 | 70-86 | 90-115 | 120-160 |
| Fineness | 8%-10% |
8%-10% |
8%-10% |
8%-10% |
8%-10% |
8%-10% |
8%-10% |
| Main Shaft Motor Model | YCTL225-4A |
YCTL225-4B | YCTL225-4C | YCTL280-4B | YCTL225-4A | YCTL335-4B | Y380M-4 |
| Main Shaft Motor Power(kw) | 11 |
15 | 185 | 30 | 55 | 75 | 90 |
| Adjustable Range(r/min) | 125-1250 |
125-1250 | 132-1320 | 132-1320 | 132-1320 | 132-1320 | 120-1480 |
| Blower Model | KXJF-No8C |
KXJF-No10C | KXJF-No125C | KXJF-No14C | KXJF-No16B | KXJF-No16B | KXJF-No20B |
| Blower Rotating Speed(r/min) | 1680 |
1200 | 1000 | 980 | 800 | 900 | 680 |
| Pressure(pa) | 2494 |
2400 | 2390 | 2546 | 2456 | 2684 | 2770 |
| Wind Content(m/h) | 29668 |
34996 | 64188 | 86331 | 99493 | 136430 | 165164 |
| Power(kw) | 30 |
37 | 55 | 90 | 110 | 132 | 160 |
