Help CenterLaser Wood Engraving Machine Laser Engraving Machine for Leather,rubber,wood,plastic and Nonmetal Materials
Related Products
-
50w Co2 Laser Engraving and Cutting Machine for Leather,rubber,wood,plastic and Nonmetal MaterialsUS$ 2,200 - 9,999MOQ: 1 Set -
Engraving Laser Machine for Leather,rubber,wood,plastic and Nonmetal MaterialsUS$ 2,200 - 9,999MOQ: 1 Set
-
Laser Cutter Wood Cutting Machine for Acrylic,rubber,wood,plastic and Nonmetal MaterialsUS$ 2,200 - 9,999MOQ: 1 Set
-
Nonmetal Materials Business Card Cutting MachineUS$ 2,200 - 9,999MOQ: 1 Set
-
Mini Co2 Laser Cutter Machine for Acrylic,rubber,wood,plastic and Nonmetal MaterialsUS$ 2,200 - 9,999MOQ: 1 Set
laser wood engraving machine technicial parameter
Model |
YN1390 |
YN1610X(H)2H(M) |
YN1530(H)2H(M) |
Working Area |
1300*900mm |
1600*1000mm |
1500*3000mm |
Laser Power |
60w/80w/100w/130w//150w |
||
Laser Type |
CO2 Sealed Laser Tube,10.6μm |
||
Cooling Type |
Water Cooling |
||
Engraving Speed |
0-60000mm/min |
||
Cutting Speed |
0-40000mm/min |
||
Laser Output Control |
0-100% Set by Software |
||
Min.Engraving Size |
Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm |
||
Highest Scanning Precision |
4000DPI |
||
Locating Accuracy |
≤+0.01mm |
||
Controlling Software |
DSP Control System |
||
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS,etc |
||
Compatible Software |
CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc. |
||
Color Separation |
Yes |
||
Drive System |
High-precision 3-phase Stepper Motor |
||
Auxiliary Equipments |
Exhaust Fan and Air Exhaust Pipe |
||
Power Supply |
AC110V/220V+10%,50HZ/60HZ |
||
Working Environment |
Temperature:0-45C,Humidity5-95%(No Condensate Water) |
||
laser wood engraving machine Advantages:c laser engraving machine price
1.Adopt imported linear guiding system and ensure machine long lifespan
2.The optical lens adopt high intensity gilding silicon and non sphere focusing lens, so the lens can endure the scrubs and high temperature, needn't to be changed, thus reduce resuming cost.
3.Adopt DSP control system, and moves smoothly.
4.The laser tube adopts compulsive water cooling system, cooling chiller can control temperature automatically.(optional)
laser wood engraving machine parts
Standard accessories:
1) 1×Air pump for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1×Exhaust fan with Tube ducts (install inside machine)
3) 1×Industrial chiller
4) 1×USB Cable (connecting PC and laser)
5) 1×DVD (including software, user manual, guiding videos etc)
6) 2×Power cables
7) 1×Tool box
1. 12 months for machine,long life span of laser tube:1500-3000 hours.
2. 24 hours technical support by e-mail, calling or door-to-door service
3 .English software, user manual and detailed Videos CD
4.International quality certificate:CE,FDA
5. professional laser machine supplier with 8 years experiences in China
We offer training in our factory.Welcome to our factory .
After-sales service: CD, Video, User Manual to guide you how to install, operate, maintaince
Warranty and Service: co2 cnc laser engraving machine price
1.18 months equipment warranty and maintenance for lifetime.
2.Free installation and test before sending and free training for operators
3.Advice for the solutions best for customers requirements.
4.free training and sample provided
5.We insist that our customers receive personal,hands-on training with every machine we sell,this training is free,and we will work with you as long as it takes to ensure you feel comfortable operating your new laser cutting and engraving machine.we pride ourselves on our expertise and our ability to educate our customers in the installation,proper maintenance,and most efficient use of yunneng laser machines.
6.In addition,we provide exemplary service,a 18 months parts warranty and a 6 months laser tube and lens optics warranty to make sure your laser machine continues to run smoothly.Our extensive inventory of spare parts means replacements get shipped to you as quickly as possible.Immediate technical assistance is only an email or phone call away.

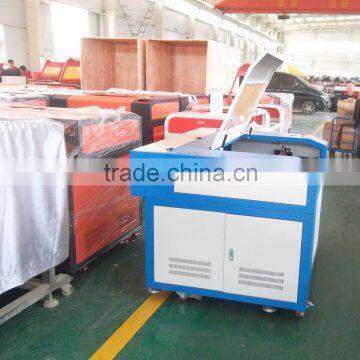

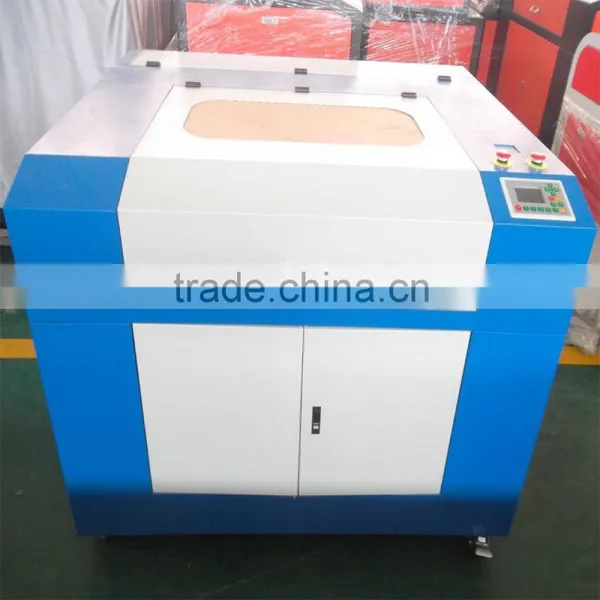

laser wood engraving machine sample:
Customers visiting
