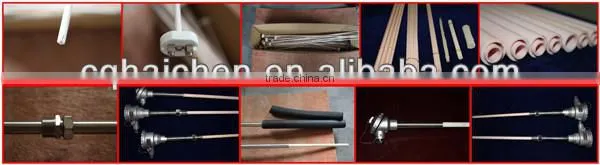

Type R Thermocouple
R-type thermocouple in the series, with the highest accuracy and stability of the best, wide-temperature-zone, long life, high temperature limit. Applicable to oxidation and inert atmosphere can also be used for short-term vacuum, but does not apply to restore an atmosphere of or containing metal or non-metallic vapor in the atmosphere. R-type thermocouple is a clear advantage is not required for the purposes of compensation lead to compensate, as in 0 ~ 50 °C within the framework of thermal power less than3μV.
Model Selection of Thermocouple Type R
Model number |
Graduation |
Temperature range |
Protection tube |
Response time |
Specification |
|
d |
L x l |
|||||
|
WRP-130 WRP2-130 |
S |
0-1400 |
peraluminous |
<150S |
16 |
300x150 350x200 400x250 450x300 550x400 650x500 900x750 1150x1000 1650x1500 2150x2000 |
|
WRP-131 WRP2-131 |
<360S |
25 |
||||
|
WRQ-130 WRQ2-130 |
R |
0-1300 |
<150S |
16 |
||
|
WRQ-131 WRQ2-131 |
<360S |
25 |
||||
|
WRR-130 WRR2-130 |
B |
0-1800 |
Corundum tube |
<150S |
16 |
|
|
WRR-131 WRR2-131 |
<360S |
25 |
||||
