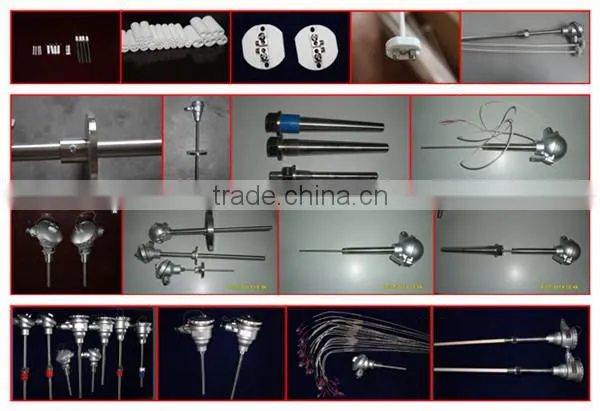

Assembly Thermocouple/K Type Thermocouple with Flange
I.K type thermocouples
We adopt fastener inside thermocouple to fasten filaments to completely prevent it from oil or gas leakage. It is used for production with high abrasive solid granule or fluid on the spot. It is the necessary temperature-measuring device for refinery.
II .Specifications:
1.thermocouple length 250mm
2.ungrounded thermocouple probe,
3.type K thermocouple ,
4.thermocouple sheath 304 SS
5.thermocouple diameter 16mm
Type |
Graduation |
Measuring Range°C |
Thermal Response Time |
Protection Tube Material |
Specification L*1 |
|
WRN-430M WRN2-430M |
K |
0~800 |
<180s |
1Cr18Ni9Ti |
450*300 500*350 550*400 600*450 650*500 750*600 950*750 1150*1000 |
|
WRE-430M WRE2-430M |
E |
0~600 |
|||
|
WRN-440M WRN2-440M |
K |
0~800 |
|||
|
WRE-440M WRE2-440M |
E |
0~600 |
We provide different Class I thermocouple as user’s demand;We also produce protection tube of other materials.
If you are interested in our products,please contact us for further information including prices.
