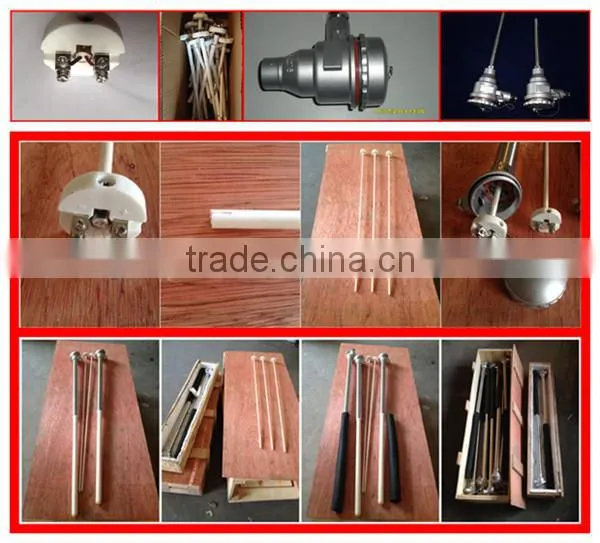

Tungsten-Rhenium Thermocouple With Ceramic Protection Tube

Product Details
Company Profile
Contact Us

Place of Origin Chongqing, China

Brand Name thermocouple

Model Number W-Re5/26 thermocouple

Usage Industrial

Theory Temperature Sensor

Tungsten-Rhenium Thermocouple Sensor

Tungsten-Rhenium thermocouple sensor were developed to meet the requirements for measuring ultra-high temperatures in the 2760°C (5000°F) range.

We makes available three widely used Tungsten-Rhenium thermocouple calibrations. Tungsten versus Tungsten-26% Rhenium, Tungsten-5% Rhenium versus Tungsten-26% Rhenium and Tungsten-3% Rhenium versus Tungsten-25% Rhenium.

Tungsten-Rhenium Thermocouples conform to the limits of error listed in the Table: “Limits of Error for Tungsten-Rhenium Thermocouple Wire combinations.”

Because of the inherent brittleness of unalloyed Tungsten, the Tungsten versus Tungsten-26% Rhenium thermocouples are more difficult to handle than the Tungsten-5% Rhenium versus Tungsten-26% Rhenium combination.

The average EMF of the W-3% Re/W-25% Re is slightly less than that of W/W-26% Re and slightly more than that of W-5% Re/W-26% Re. The ductility of W-3% Re is about equal to that of W-5%Re, but superior to that of unalloyed Tungsten.

All three thermocouple calibrations can be used to 2760°C (5000°F) in hydrogen or inert gas atmospheres and in a vacuum. They undergo rapid deterioration under oxidizing conditions and should not be used in air or atmospheres containing oxygen.

Tungsten-Rhenium thermocouples are supplied in 12-inch lengths which corresponds to each leg for a 24" total length. Longer lead lengths are available, Consult Sales.

Model No.**	Materials	Wire Dia. mm (inches)	Additional Price Per Double Inch.
TOR-003-12 TOR-005-12 TOR-010-12 TOR-015-12 TOR-020-12	G* Tungsten Tungsten 26% Re	0.075 (.003) 0.125 (.005) 0.25 (.010) 0.38 (.015) 0.50 (.020)	$0.50 0.75 2.00 3.00 4.00
T5R-003-12 T5R-005-12 T5R-010-12 T5R-015-12 T5R-020-12	C* Tungsten 5% Re- Tungsten 26% Re	0.075 (.003) 0.125 (.005) 0.25 (.010) 0.38 (.015) 0.50 (.020)	$2.00 2.25 4.00 6.00 8.00
T3R-005-12 T3R-010-12 T3R-015-12 T3R-020-12	D Tungsten 3% Re- Tungsten 25% Re	0.125 (.005) 0.25 (.010) 0.38 (.015) 0.50 (.020)	$2.25 4.00 6.00 8.00

* Most popular of the three Tungsten-Rhenium thermocouples, a large selection of instrumentation is available.
** Tungsten-Rhenium alloy thermocouples are supplied in standard 300 mm (12") lengths, which corresponds to each leg for a 600 mm (24") total length. Change suffix “-12” in model number to indicate additional length required in inches.

If you need more information about our products please contact me.
