Product Details
| Place of Origin | Chongqing, China | Brand Name | pressure transmitter | |
| Model Number | pressure transmitter |
Product Description

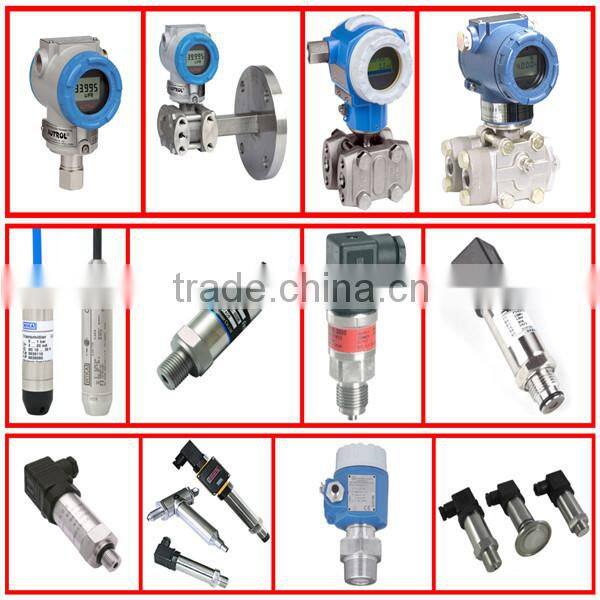

Pressure transmitter
Description
The pressure transmitter with high quality and all stainless steel media isolated Pressure Transmitter intended for use in the measurement of gases and liquids compatible with stainless steel. It is available with an output of 4-20mA; 1-5V,0-5V; 0.5-4.5V;0-10V,2mV/V. For other outputs consult factory. The PT124B-21X can be purchased with a variety of pressure ports. For those applications that require unique pressure connections, calibration, temperature compensation or electrical connections, ZHYQ will design and build to the customers specifications. It is suitable for use in a wide variety of applications. High vibrations and shock, electrical noise and temperature extremes all of which can handle characterize many of these applications. Some applications include Industrial OEM Equipment, Hydraulic Systems, Refrigeration, Offroad and Agriculture Equipment.
Specification
Range | -1bar~0~2000bar |
Accuracy | 0.5%FS |
Nonlinearity | Full span x 0.2% |
Reliability | Full span x 0.05% |
Output | 4-20mA, 1-5V,0.5-4.5V,0-5V; 0-10V, 2mV/V,3.3mV/V |
Input voltage | 24(12~36)VDC (Amplify/Voltage signal), 10(6~12)VDC (mV output) |
Operating temperature | -20~80°C |
Compensated temp range | 0~65°C |
Overload pressure | 150%FS |
Medium material | stainless steel or Hardening Aluminum |
Electric connection | Hirschman(DIN),M12,4pin, Bendix connector, grand cable(Customer design) |
Process connection | G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5 (Customer design) |
Ordering guide
In order to choose the suitable products to meet your reuqiremnt, please confirm the follow items before you place order:
1, Mode: PT124B-21X
2, Pressure range: -1bar-0-6000bar
3, Electrical connector: DIN, 5PIN, 4PIN and direct dow leads available
4, Pressure port: G1/4, G1/2, 1/4NPT, 1/2NPT (optional)
Price, Package and Service
1, Price : FOB SHANGHAI
2, Payment: 100% T/T in advance .
3, Packing : standard export packing , including instructions and certificate
4, Leading time : 7-10 working days.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
7. 7 days free replace & 1 year free repair for quality warranty
