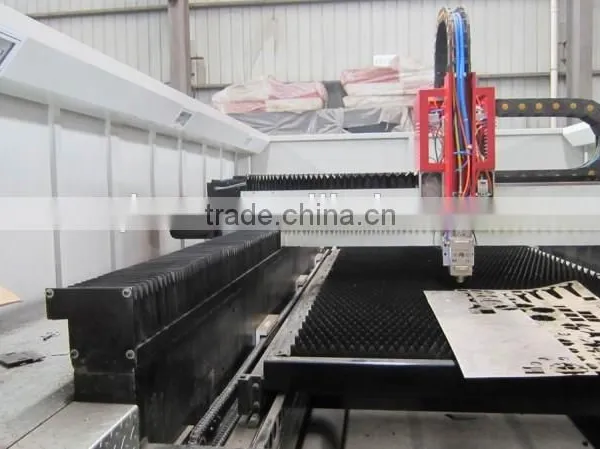

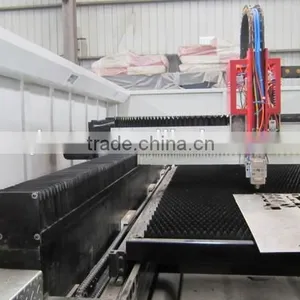

4000*2000 control cabinet fiber laser cutting machine for pipe cutting
Machine features
1. High precision: an precise cutting for various precision part, arts and crafts.
2. Fast speed: 100 times higher than linear cutting
3. Small heat affected zone, good dimension stability. Flat and handsome laser-slotted, without later process
4. High performance/price ratio: the price is only 1/8 of the similar CO2 laser cutting machine and 2/5 of the equivalent NC Punch
5. Low use cost: only USD2 per hour which is 1/8-1/10 of the similar CO2 laser cutting machine (USD22-USD35 per hour)
6. Low follow-up maintenance cost: only 1/10-1/15 of the similar CO2 laser cutting machine and 1/3-1/4 the equivalent NC Punch
7. Steady performance: as a mature laser apparatus, the YAG laser cutting machine is suitable for most metal manufacturing and processing industry
8. Steel plate cutting thickness:0.1mm-8mm
1.Equipped with High power Fiber laser generator and can do cutting of any graphics within the size of 1300*2500mm
(or 4000mm*2000mm 3000*1500mm ). It is suitable for large-scale thin metal sheet cutting and the processing is fast and precise.
2. Stable and good deformation resistance capability. Aging process technology ensures durable in use and
accuracy of the machine.
3. Automatic following focus device realizes dynamic focus continuous cutting on materials with different thickness.
4. The working table is equipped with universal wheel and pneumatic loading device (optional), which saves labor,
avoids metal sheet damage and ensures good cutting quality.
5. Separate digitalized operating table and remote controller is convenient for operation. There are several input modes of
USB flash disk data copy, USB cable data transmission, network connections and other data transmission methods.
6. Standard collocation of automatic nesting software and optional collocation of auto-recognition cutting, save materials and improves working efficiency.
7.The machine can be equipped with integrated rotary device or detached rotary device and can do fixed position punching,
notching and cutting metal pipes.
1. Feature
Advantages of Fiber Metal cutting machines
1.Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2.High cutting speed: cutting speed is more than 20m/min.
3. Stable running: adopting the top world import fiber laser,stable performance, key parts can reach 100.000 hours.
4. High efficiency for photoelectric conversion :compare with CO2 laser cutting machine ,fiber lasers have three times
photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment .Photoelectric conversion rate is up to 25-30%.Low electric power consumption,it is only about 20%-30% of traditional CO2 lasers.
6.Low maintenance: fiber line transmission ,no need reflect lens, save maintenance cost.
7. Easy operations: no need to adjust the optical path.
8.Super flexible optical effects: compact design, compact and easy to flexible manufacturing requirements.
2. Application
Applicable to sheet metal fabrication, high-low voltage electric cabinet, kitchenware, hardware, metal enclosure, elevator panel, textile machinery, food machinery,
gasket, advertising, decoration, metal crafts, lighting lamps, medical instruments, automotive parts, spectacle frame and
other metal cutting fields. Suitable for cutting stainless steel, mild steel, carbon steel, alloy steel, spring steel, copper sheet,
aluminum, galvanized steel sheet, brass, titanium, and metal pipe and tube.
3.Parameters
Laser power |
200w 300w 500w 1000w 2000w 2400w 3000w |
Cutting speed |
20m/min, max speed |
Cutting thickness |
0-20mm, (according to laser power and material) |
Working table |
Saw tooth working table |
Motion system |
Digital offline control system; IMPORT servo motor; ABBA high precision ball screw; linear guide transmitting system |
Cooling System: |
High precision constant temperature water chiller |
Power Supply: |
AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz |
Cooling system |
External constant-temperature water chiller system |
Software |
TianQi Laser CNC cutting and Auto Nesting Software |
Format supported |
PLT, DXF, AI, DST etc |
Suggested auxiliary gas |
Dry filter compressed air , 02, N2 |
Workshop environment |
Temperature 0-40 Centigrade, Humidity 45-85%, good ventilation, no corrosive gas, etc |
Application
YAG laser cutting machine has been widely used in different kinds of manufacturing and processing lines: metal billboard, metal advertising letter, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artwork, metal parts, spectacle frame, etc, which have brought customers a high ratio of interest.
Applicable materials:
Stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum heet, gold, silver, titanium sheet and pipe.
Research and Development
Through continuous research and development, our own research laboratory device has been developed into laser equipment which can work continuously and stably for 24-hour a day. Tianqi laser has developed a series of high-end laser products, and owns several patents.
Service
Tianqi Laser set up a marketing management center, 16 offices across our domestic country and 3 branches worldwide, resident technical engineer provide comprehensive pre-sale, after sales support and service. We provide one year warranty and lifetime maintenance. Also we provide online and telephone service 24 hours a day, when it is necessary, we will send technician to the customer side to solve the problem.
Technical parameter:
Model: |
TQL-LCY620-4115 |
Processing scale(length*width): |
4100mm*1500mm |
Cutting thickness: |
0.1mm-8mm |
Max. output power: |
620W |
Laser wavelength: |
1064nm |
Pulse frequency: |
1--300HZ |
Min. line width: |
0.15mm |
Electrical source: |
380V/50HZ/100A |
X,Y,Z axis geometric positioning accuracy: |
≤±0.08mm/1000mm |
X,Y,Z axis re-orientation accuracy: |
≤±0.04mm |
Machine weight: |
4200kg |
Cooling mode: |
7P water-cooling |
Max. cutting speed: |
35mm/s |
Please let me know the following information:
1. Which kind of material do you want to cut or process?
2. What is the dimension of your metal (including length, width and thickness)?
According to the above information, we will recommend the most suitable machine for your metal.
