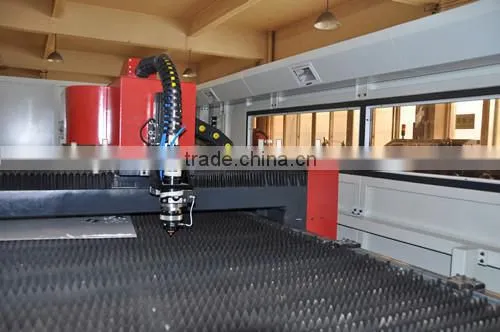

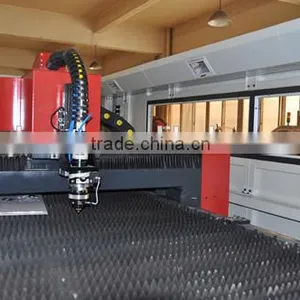

Manufacture fiber laser cutting machine used for different metal sheet cutting
1.Equipped with High power Fiber laser generator and can do cutting of any graphics within the size of 1300*2500mm
(or 4000mm*2000mm 3000*1500mm ). It is suitable for large-scale thin metal sheet cutting and the processing is fast and precise.
2. Stable and good deformation resistance capability. Aging process technology ensures durable in use and
accuracy of the machine.
3. Automatic following focus device realizes dynamic focus continuous cutting on materials with different thickness.
4. The working table is equipped with universal wheel and pneumatic loading device (optional), which saves labor,
avoids metal sheet damage and ensures good cutting quality.
5. Separate digitalized operating table and remote controller is convenient for operation. There are several input modes of
USB flash disk data copy, USB cable data transmission, network connections and other data transmission methods.
6. Standard collocation of automatic nesting software and optional collocation of auto-recognition cutting, save materials and improves working efficiency.
7.The machine can be equipped with integrated rotary device or detached rotary device and can do fixed position punching,
notching and cutting metal pipes.
1. Feature
Advantages of Fiber Metal cutting machines
1.Excellent beam quality: Smaller focus diameter and high work efficiency, high quality.
2.High cutting speed: cutting speed is more than 20m/min.
3. Stable running: adopting the top world import fiber laser,stable performance, key parts can reach 100.000 hours.
4. High efficiency for photoelectric conversion :compare with CO2 laser cutting machine ,fiber lasers have three times
photoelectric conversion efficiency.
5. Low cost: Save energy and protect environment .Photoelectric conversion rate is up to 25-30%.Low electric power consumption,it is only about 20%-30% of traditional CO2 lasers.
6.Low maintenance: fiber line transmission ,no need reflect lens, save maintenance cost.
7. Easy operations: no need to adjust the optical path.
8.Super flexible optical effects: compact design, compact and easy to flexible manufacturing requirements.
2. Application
Applicable to sheet metal fabrication, high-low voltage electric cabinet, kitchenware, hardware, metal enclosure, elevator panel, textile machinery, food machinery,
gasket, advertising, decoration, metal crafts, lighting lamps, medical instruments, automotive parts, spectacle frame and
other metal cutting fields. Suitable for cutting stainless steel, mild steel, carbon steel, alloy steel, spring steel, copper sheet,
aluminum, galvanized steel sheet, brass, titanium, and metal pipe and tube.
3.Parameters
Laser power |
200w 300w 500w 1000w 2000w 2400w 3000w |
Cutting speed |
20m/min, max speed |
Cutting thickness |
0-20mm, (according to laser power and material) |
Working table |
Saw tooth working table |
Motion system |
Digital offline control system; IMPORT servo motor; ABBA high precision ball screw; linear guide transmitting system |
Cooling System: |
High precision constant temperature water chiller |
Power Supply: |
AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz |
Cooling system |
External constant-temperature water chiller system |
Software |
TianQi Laser CNC cutting and Auto Nesting Software |
Format supported |
PLT, DXF, AI, DST etc |
Suggested auxiliary gas |
Dry filter compressed air , 02, N2 |
Workshop environment |
Temperature 0-40 Centigrade, Humidity 45-85%, good ventilation, no corrosive gas, etc |
| Cutting head | Hi precision Precitec cutting head |
| Laser device | USA IPG laser |
| Control software | German Beckhoff |
| Cooling ways | 7P water-cooling system |
| Working table | Cast-solid , Automaitically exchangeable |
| Air Compressor | Low noise, Long working life, power saving |
| Transformer | Stable and reliable , energy conservation |
laser cutting machine
Application:
YAG laser cutting machine has been widely used in manufacture billboard, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artware, etc.
Applicable materials:
stainless steel,carbon steel,alloy steel,spring steel,copper sheet,aluminum heet,gold,silver,titanium sheet and pipe.
Advantages:
1. High precision: it is precise enough to cut for various accessories.
2. Fast speed: 100 times higher than linear cutting.
3. Small heat affected zone, good dimension stability, flat and nice laser slit.
4. High performance/price ratio: the price is only 1/3 of the similar CO2 laser cutting machine and 2/5 of the CNC Punch with equivalent function.
5. Low use cost: only $3 per hour. It is 1/8-1/10 of the similar CO2 laser cutting machine ($26 per hour)
6.Low follow-up maintenance cost: only 1/10~1/15 of the similar CO2 laser cutting machine and 1/3~1/4 of the CNC Punch with equivalent function.
7. Steady performance: YAG laser cutting machine has the most mature and stable technology in laser area, it can promise long term continuous produce.
Technical parameter:
Model: |
TQL-LCY620-2513 |
Processing scale(length*width): |
2500mm*1300mm |
Cutting thickness |
0.15mm-8mm |
Max. output power |
620W |
Laser wavelength: |
1064nm |
Pulse frequency: |
1--300HZ |
Min. linewidth: |
0.15mm |
Electrical source: |
380V/50HZ/100A |
X,Y,Z axis geometric positioning accuracy: |
≤±0.06mm/1000mm |
X,Y,Z axis re-orientation accuracy: |
≤±0.04mm |
Machanical weight: |
3780kg |
Cooling mode: |
7P water-cooling |
Max. cutting speed: |
35mm/s |
SERVICE:
PRE-SALES SERVICE
1,Free sample making
2,Progressing Solution Design
AFTER-SALES SERVICE
1,Machine-installation & debugging
2,Machine-training service
Please let me know such information:
1, what kind of material do you want to process, cutting?
2, what is the dimension of material (length, width and thickness)?
3, are you end-user or reseller in your country, my dear friend?
Based on the above analysis, we will recommend the most suitable machine and best solution for you as soon as possible.
Cutting process:

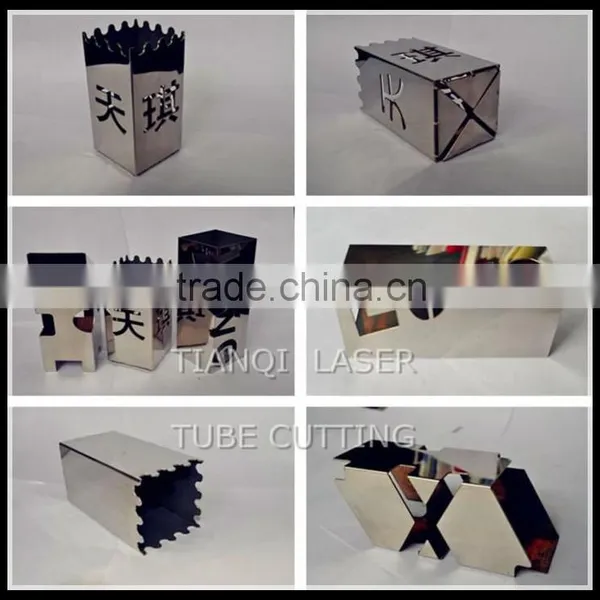

cutting sample:
