Specifications
high temperature electric kilnWorking temp 1500C(Max 1600)

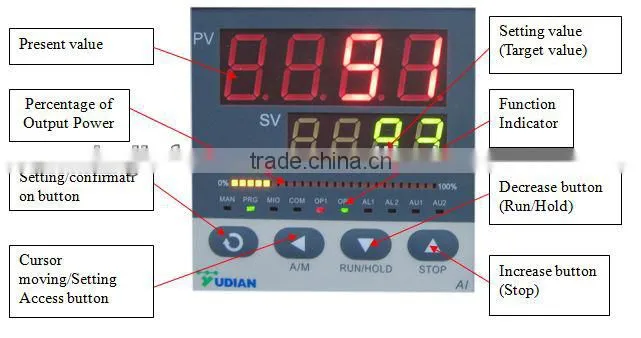

30 segments program PID control
High quality & competitive pri
KJ-1600A high temperature electric kiln
Advantages
1. Big yield capacity and high productivity, especially used for heating treating treatment of samll or medium products.
2. Maximum enegery efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
3. Power control with 30 segments programmable
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Control Rectifier).
Product specification of high temperature electric kiln
Model |
KJ-1200A |
KJ-1400A |
KJ-1600A |
Max temperature |
1200C |
1400C |
1600C |
Working temperature |
1100C |
1300C |
1500C |
Heating rate |
0~20C/min |
0~15C/min |
0~15C/min |
|
Accuracy of temperature control |
+/-1C |
+/-1C |
+/-1C |

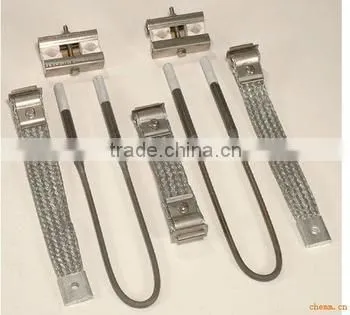

Heating elements |
Electric resistance wire with molybdenum |
SiC rode |
MoSi2 rode |
Refractory material |
1430 type alumina ceramic fiber |
1600 type alumina ceramic fiber |
1800 type alumina ceramic fiber |
Furnace structure |
Double water cooling system |
Double water cooling system |
Double water cooling system |
Thermocouple |
K-type |
S-type |
B-type |
|

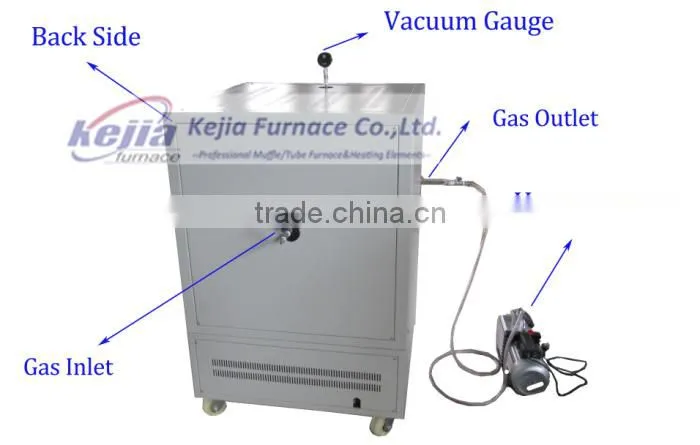

Max.Vacuum level(supporting customized products) |
7X10-3 Pa |
7X10-3 Pa |
7X10-3 Pa |
Normal voltage |
110-415V 50/60Hz |
110-415V 50/60Hz |
110-415V 50/60Hz |
Packaging details |
plastic paper inside, polyfoam filled, wooden box outside |
||
Chamber Size |
150x150x150mm (6"x6"x6") 150x150x200mm (6"x6"x8") 200x200x200mm (8"x8"x8") 200x200x300mm (8"x8"x12") 250x250x300mm (10"x10"x12") 300x300x400mm (12"x12"x16") 350x350x400mm (14"x14"x16") 400x400x400mm (16"x16"x16") 500x500x500mm (20"x20"x20") |
||
Application
high temperature electric kiln can protect materials from oxidation and decarburization with flowing Nitrogen, Argon and other inter gas. It’s an idea furnace for sintering, reducing in inert atmospheresfor labs of university, research institution and industrial companies.
More details
1. Ashing
2. Crystallize
3. Stress Relieving
4. Heat treating or Preheating
5. Gravimetric and Quantitative analysis
6. Annealing or Tempering or Normalizing
7. Quenching or Hardening or Austempering
8. Sintering or Roasting or Forging or Calcining
Photos
Company information
Zhengzhou Kejia Furnace Co., Ltd. is a leading and professional enterprise that specializes in the manufacture of high temperature muffle furnace, tube furnace, vacuum furnace, atmosphere fuenace ,etc. Kejia Furnace is devoted to satisfying customers' needs with quality products and customized services. Relying on a strong R&D team, Kejia Furnace has developed a reputation for excellent performance, competitive prices and timely delivery. We have become a leading manufacturer and exporter of furnaces in China.
Warranty
high temperature electric kiln is warranted to be free from defects in materials or workmanship for 1 years from the date of purchase. Within this period, across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs. Replacement will be shipped to you after photo or other evidence are provided and investigated.
Deliver by air, by express, by sea or shipping timely according to your requirement.
Pls tell us the shiping method you prefer and the destination airport or seaport in advance.
Then we can check the freight for you.
Our service
1. Reply your inquiry at my first convenience
2. Deliver products timely
3. Any problems please contact me, I’ll go through all the questions with you.
4. We will offer the tracking No. for checking the status we ship the doods.
