KJ-1200-1400-1600VF vacuum drying oven
Introduction of vacuum drying oven
Kejia series Vacuum furnace is widely used for heating treatment of metal materials in low vacuum, recursive, protective atmosphere, also can be used for heating treatment of special materials, such as carbonization process of carbon products. The furnace chamber is ceramic fiber with excellent thermal insulation; Vacuum Reservoir with water cooling system.
Features of kejia vacuum drying oven
1.Double layer steel casting with air cooling fans to keep case temperature lower;
2.High purity fiber alumina board chamber for the best energy saving;
3.The temperature is controlled by precision SCR(Silicon Controlled Rectifier) with accuracy +/-1 C and 30 segments programmable control;
4.The fast rate of temperature increasing and decreasing.
5.The furnace chamber is ceramic fiber brick with excellent thermal insulation,vacuum
reservoir with water cooling system;
6.The furnace is equipped with the function of power off automatically when door
furnace opening,function of over temperature alarm,etc.
Technical parameters of vacuum drying oven
| Code | KJ-1200VF | KJ-1400VF | KJ-1600VF |
| Max. Temperature | 1200°C | 1400°C | 1600°C |
| Working Temperature | 1100°C | 1300°C | 1500°C |
| Heating Element | Fe-Cr-Al-Mo wire | SiC heater | MoSi2 heater |
| Heating Rate | ≤20°C/min | ≤15°C/min | ≤15°C/min |
|
Refractory material
|
1430 type alumina ceramic fiber |
1600 type alumina ceramic fiber |
1800 type alumina ceramic fiber |
| Temperature Control | 30 segments programmable,PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Control Rectifier). | ||
| Rated Power | 8KW | ||
| Temperature Accuracy | ±1°C | ||
| Max. Vacuum | 10-3 Pa | ||
| Chamber Size | Customizable | ||

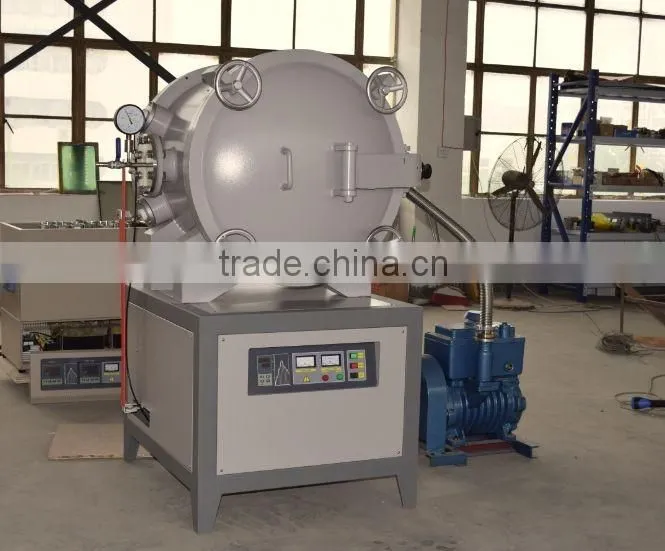

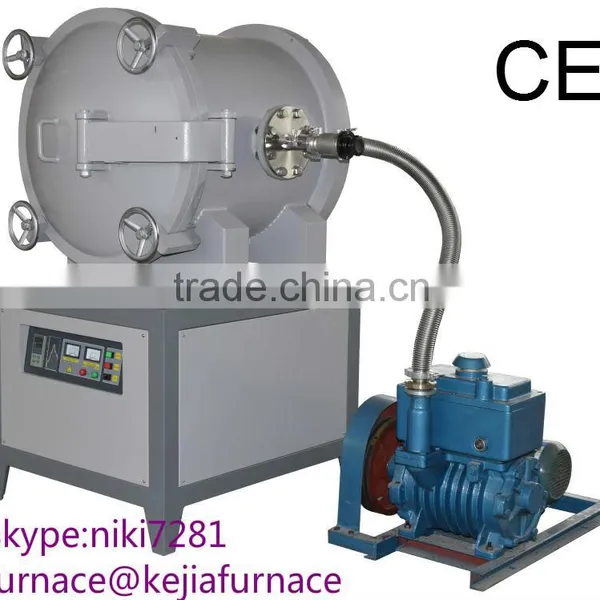

Photos

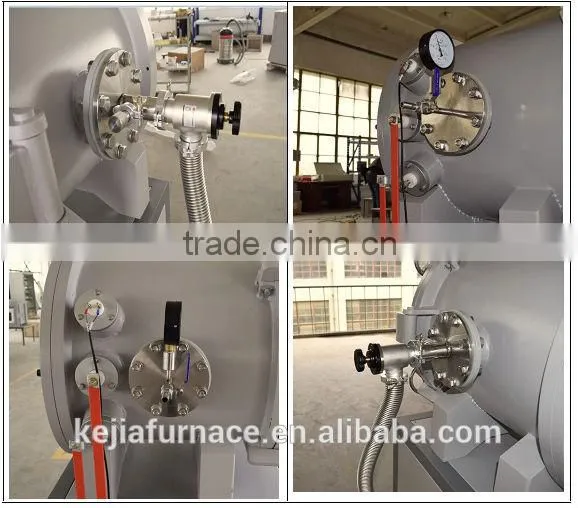

details of the vacuum flange

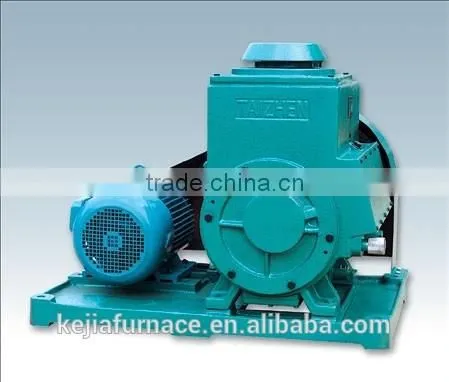

Rotary Vane Pump (10 pa) molecular pump (10-3 pa)
Company information
Zhengzhou Kejia Furnace Co., Ltd. is a leading and professional enterprise that specializes in the manufacture of high temperature muffle furnace, tube furnace, vacuum furnace, atmosphere fuenace ,etc. Kejia Furnace is devoted to satisfying customers' needs with quality products and customized services. Relying on a strong R&D team, Kejia Furnace has developed a reputation for excellent performance, competitive prices and timely delivery. We have become a leading manufacturer and exporter of furnaces in China.
Warranty
vacuum drying oven is warranted to be free from defects in materials or workmanship for 1 years from the date of purchase. Within this period, across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs. Replacement will be shipped to you after photo or other evidence are provided and investigated.
Deliver by air, by express, by sea or shipping timely according to your requirement.
Pls tell us the shiping method you prefer and the destination airport or seaport in advance.
Then we can check the freight for you.
Our service
1. Reply your inquiry at my first convenience
2. Deliver products timely
3. Any problems please contact me, I’ll go through all the questions with you.
4. We will offer the tracking No. for checking the status we ship the doods.
