Gas Controlled Atmosphere Furnace / Gas Vacuum Hardening Furnace

Name: Gas Controlled Atmosphere Furnace / Gas Vacuum Hardening Furnace
Brand: Kejia
SKU: 116526727
Availability: InStock

US$ 3,500 - 20,000 MOQ: 1 Piece

Key Specifications

Brand Name:

Kejia

Place of Origin:

Henan, China

Zhengzhou Kejia Furnace Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Kejia

Place of Origin Henan, China

Specifications

High Temperature Vacuum Furnace
1.energy efficiency
2.Excellent temperature uniformity
3.factory price

gas controlled atmosphere furnace / gas vacuum hardening furnace

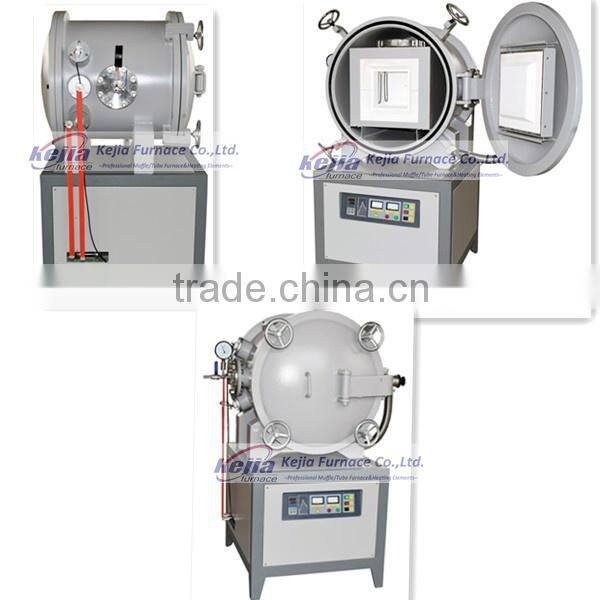

Introduction for Vacuum Furnace

Kejia high temperature vacuum atmosphere furnaces facilitate operation of firing

cycles where atmosphere condition can be altered during operation cycle, from

oxidizing, (such as air to inert atmosphere), or argon/nitrogen to vacuum. This type

of vacuum furnace makes multi-atmosphere process in one cycle possible: binder

burn out in air and parts sintering under vacuum or inert gas atmosphere. These

atmosphere furnaces are designed for accurate air/inert gas flow rate control,

accurate temperature control, excellent temperature uniformity, long lasting

performance and safe operations. This vacuum atmosphere furnace is ideal for

vacuum atmosphere brazing, sintering, surface treatment, thermal heat treatment

and high temperature material process including stainless steel, titanium, aerospace

material, silicon carbide wafer, other metals and ceramics.

vacuum furnace

Features for Vacuum Furnace

1.Excellent temperature uniformity

vacuum furnace

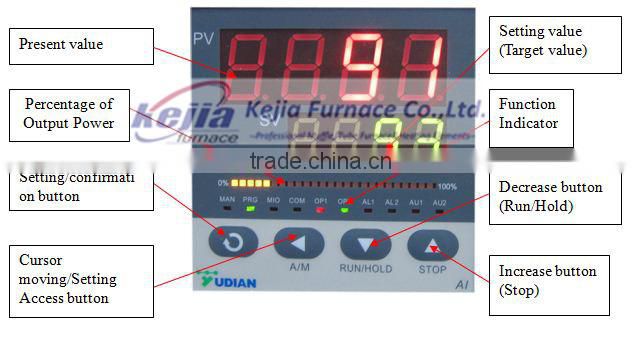

2.51 Segment Easy Use PID Programmable Temperature Controller, allows

the control of heating rates, dwells (time holds) and cooling rates

vacuum furnace

Technical Parameter for Vacuum Furnace

Model	1200XV	1400XV	1700XV
Max temperature	1200C	1400C	1700C
Working temperature	1100C	1300C	1600C
Heating rate	0~20C/min	0~15C/min	0~15C/min
Accuracy of temperature control	+/-1C	+/-1C	+/-1C
Heating elements	Electric resistance wire with molybdenum	SiC rode	MoSi2 rode
Refractory material	1430 type alumina ceramic fiber	1600 type alumina ceramic fiber	1800 type alumina ceramic fiber
Furnace structure	Double water cooling system	Double water cooling system	Double water cooling system
Thermocouple	K	S	B
Max.Vacuum level(supporting customized products)	7X10-3 Pa	7X10-3 Pa	7X10-3 Pa
Normal voltage	110-415V 50/60Hz	110-415V 50/60Hz	110-415V 50/60Hz
Chamber Size	150x150x150mm (6"x6"x6") 150x150x200mm (6"x6"x8") 200x200x200mm (8"x8"x8") 200x200x300mm (8"x8"x12") 250x250x300mm (10"x10"x12") 300x300x400mm (12"x12"x16") 350x350x400mm (14"x14"x16") 400x400x400mm (16"x16"x16") 500x500x500mm (20"x20"x20")
