Home > Industrial Equipment & Components > Boiler & Furnace > Furnace > Atmosphere Electric Vacuum Furnace for Hardening Metal

Atmosphere Electric Vacuum Furnace for Hardening Metal

Name: Atmosphere Electric Vacuum Furnace for Hardening Metal
Brand: Kejia
SKU: 116526817
Availability: InStock

Atmosphere Electric Vacuum Furnace for Hardening Metal thumbnail-1

Atmosphere Electric Vacuum Furnace for Hardening Metal photo-1

US$ 2,100 - 43,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Resistance Furnace

Usage:

Heat Treatment Furnace

Contact Supplier Request Quote Chat Now

Zhengzhou Kejia Furnace Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhengzhou Qingdao etc.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Resistance Furnace

Usage Heat Treatment Furnace

Place of Origin Henan, China

Brand Name Kejia

Model Number KJ-1200VF/1400VF/1600VFelectric vacuum furnace

Voltage as your requirements

Power(W) 16KW

Dimension(L*W*H) 1970x1360x1800mm

Weight 860KG

Certification CE/ISO

Warranty one year

After-sales Service Provided No overseas service provided

Electric vacuum furnace/vacuum sintering furnace

Introduction for Electric Vacuum Furnace

electric vacuum furnace

Kejia high temperature vacuum atmosphere furnaces facilitate operation of firing

cycles where atmosphere condition can be altered during operation cycle, from

oxidizing, (such as air to inert atmosphere), or argon/nitrogen to vacuum. This type

of vacuum furnace makes multi-atmosphere process in one cycle possible: binder

burn out in air and parts sintering under vacuum or inert gas atmosphere. These

atmosphere furnaces are designed for accurate air/inert gas flow rate control,

accurate temperature control, excellent temperature uniformity, long lasting

performance and safe operations. This vacuum atmosphere furnace is ideal for

vacuum atmosphere brazing, sintering, surface treatment, thermal heat treatment

and high temperature material process including stainless steel, titanium, aerospace

material, silicon carbide wafer, other metals and ceramics.

vacuum furnace

electric vacuum furnace

Features for Electric Vacuum Furnace

electric vacuum furnace

1) Small deformation for workpiece

2) Bright surface color without oxidation

3) high vacuum degree up to 7x10-3Pa or even higher

4) Less heat inertia

5) Easy operating

6) Quick cooling

vacuum furnace

Technical Parameter for Electric Vacuum Furnace

Model	1200XV	1400XV	1700XV
Max temperature	1200C	1400C	1700C
Working temperature	1100C	1300C	1600C
Heating rate	0~20C/min	0~15C/min	0~15C/min
Accuracy of temperature control	+/-1C	+/-1C	+/-1C
Heating elements	Electric resistance wire with molybdenum	SiC rode	MoSi2 rode
Refractory material	1430 type alumina ceramic fiber	1600 type alumina ceramic fiber	1800 type alumina ceramic fiber
Furnace structure	Double water cooling system	Double water cooling system	Double water cooling system
Thermocouple	K	S	B
Max.Vacuum level(supporting customized products)	7X10-3 Pa	7X10-3 Pa	7X10-3 Pa
Normal voltage	110-415V 50/60Hz	110-415V 50/60Hz	110-415V 50/60Hz
Chamber Size	150x150x150mm (6"x6"x6") 150x150x200mm (6"x6"x8") 200x200x200mm (8"x8"x8") 200x200x300mm (8"x8"x12") 250x250x300mm (10"x10"x12") 300x300x400mm (12"x12"x16") 350x350x400mm (14"x14"x16") 400x400x400mm (16"x16"x16") 500x500x500mm (20"x20"x20")

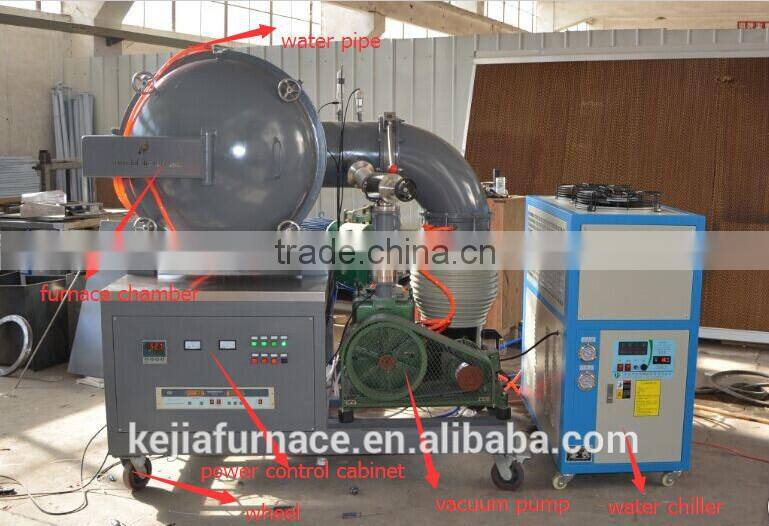

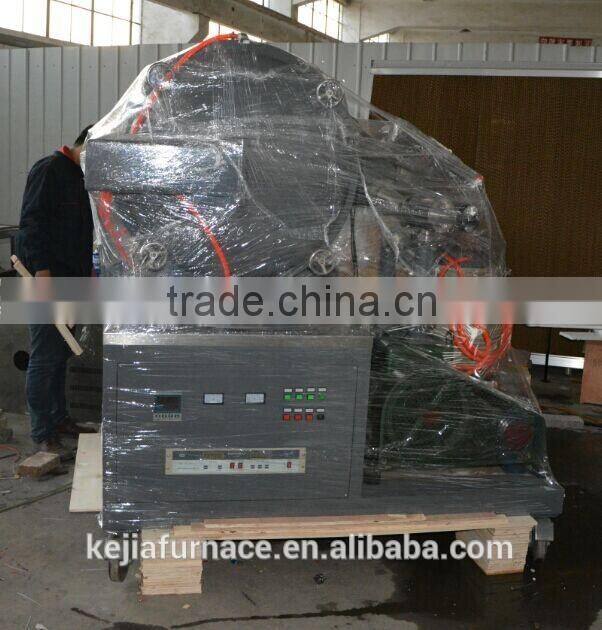

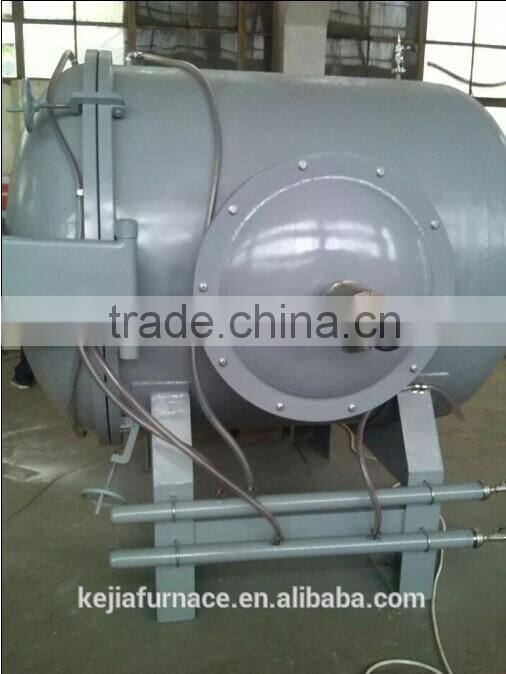

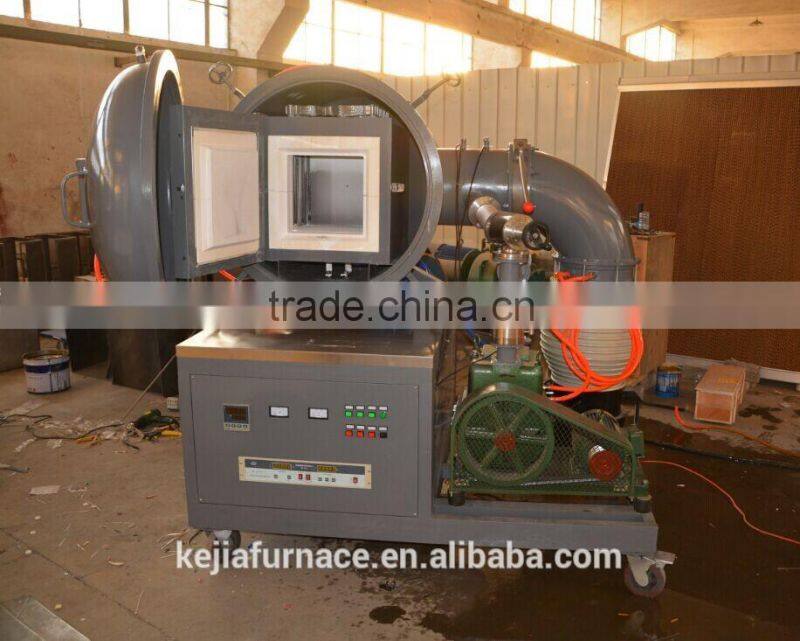

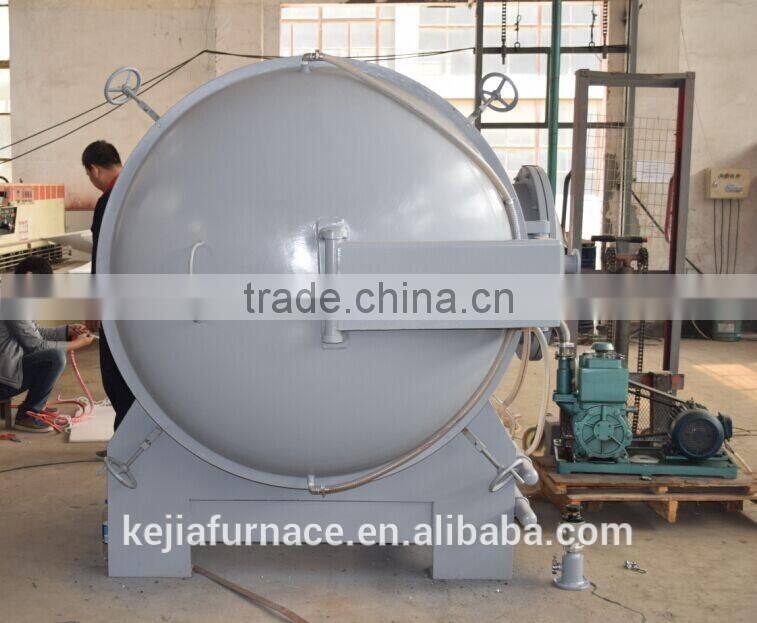

Photos of electric vacuum furnace

Service:

1,reply your inquiry at the first seconds

2,answer your question sincerely

3,to satisfy your requirement

4,deliver products timely

5,We will offer the tracking No.for checking the status we ship the goods.

FAQ:

1. Are you a manufacturer or trade company ?

Yes,you can assured that we are a producer with full experience doing business in domestic and oversea.

2. We are not professional for operation and installation of your machine?

While it is not a stumbling block,our machine is easy to operate,no need to professional training,and the instruction manual and vedio sent to you are enough.What’s more,we have professional engineers and they can solve all questions.

3. How about packaging ?………….if machine damaged,what should I do ?

Usually machine is packed with wooden case and standard export carton,plywood carton or as your requirement.Damage haven’t happened before,if happen,we will arrange replacement.

4. We haven’t do business before,how can I trust your company and machine ?

We have been GOLD supplier for three years with no complaints on Alibaba.and our machine have exported to Eath Asia,South Asia,the middle East Asia,Africa etc. areas and have a good feedback.
