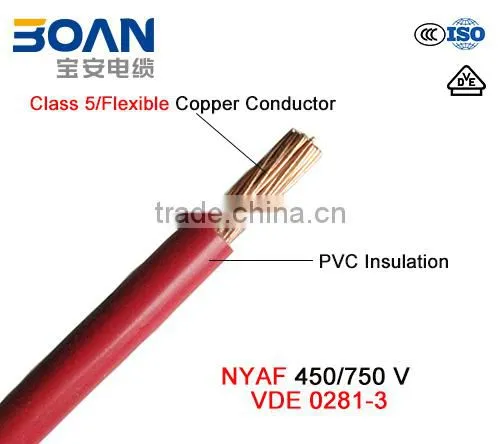

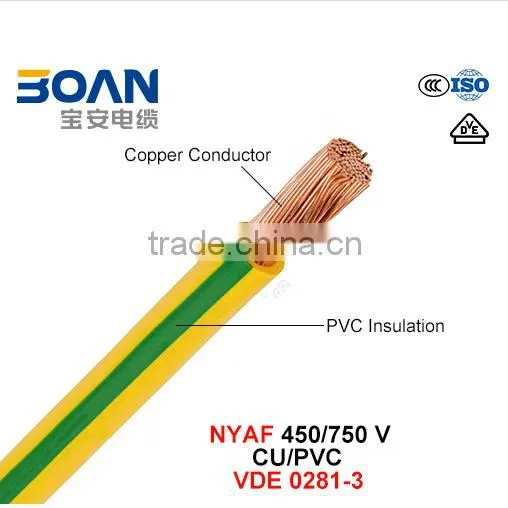

Help CenterNyaf Electric Wire 450/750V Class 5 Cu/PVC (VDE 0281-3)
Related Products
-
H07z-R Electric Wire 450/750V Cu/Lszh LS0H CableUS$ 0.2 - 2MOQ: 500 Inches -
309-Y Electric Wire 300/500V Flexible Cu/PVC/PVC (BS 6500)US$ 0.2 - 2MOQ: 500 Meters
-
H05VV-F Electric Cable Wire 300/500V Flexible Cu/PVC/PVC (HD 21.5)US$ 0.1 - 1MOQ: 500 Meters
-
H07V-R Copper/PVC Electric Cable in House WiringUS$ 0.1 - 1MOQ: 500 Meters
-
318-Y Electric Wire 300/500v Flexible Cu/PVC/PVC BS 6500US$ 0.5 - 1MOQ: 500 Inches
PVC insulated copper wires are covering series of wire products, its working voltage is from 450/750V and tis working temperature is different according to different insulation materials, mainly 70 and 90 degrees temperature, etc.
According to the conductor type, including solid conductor PVC insulated electrical wire, standed PVC insulated wire, Flexible PVC insulated wire with different colors.
According to its shape, including flat wire, round wires, etc. With different colors
According to its core number, including single core wires, multi-core wire. Etc. With different colors.
| Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
| mm² | mm | kg/Km |
| 0.75 | 2.3 | 10.6 |
| 1.00 | 2.5 | 13.7 |
| 1.5 | 3.1 | 20 |
| 2.5 | 3.6 | 31 |
| 4.0 | 4.3 | 46 |
| 6.0 | 5.5 | 75 |
| 10.0 | 6.8 | 125 |
| 16.0 | 8.6 | 199 |
| 25.0 | 10.0 | 299 |
| 35.0 | 11.5 | 421 |
| 50.0 | 13.8 | 539 |
| 70.0 | 15.6 | 730 |
| 95.0 | 17.5 | 973 |
We are glad to offer free samples for testing, please feel free to talk with us.
1. Are you a manufacturer?
Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.
2. What are your main products?
Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.
3. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.
4. How can I get samples?
Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.
5.What is your waranty terms?
The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
