Flat TPS Cable, PVC Power Cable, 450/750 V, Cu/PVC/PVC Flat Cable (AS/NZS 5000.2)
US$ 0.3 - 5
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Boan
Model Number:
Flat TPS Cable
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
H07V-U Electric Cable Wire 450/750V Sloid Cu/PVC HD 21.3US$ 0.5 - 2MOQ: 500 Meters -
H05V2V2-F Electric Wire 300/500V Flexible Cu/PVC/PVC (HD 21.5)US$ 0.1 - 1MOQ: 500 Meters
-
Nya Electric Cable Wire 450/750V Cu/PVC (VDE 0281-3)US$ 0.1 - 1MOQ: 500 Meters
-
2491X Electric Wire 450/750V Flexible Cu/PVC BS 6004US$ 0.1 - 1MOQ: 500 Meters
-
Nyaf Electric Wire 450/750V Class 5 Cu/PVC (VDE 0281-3)US$ 0.1 - 1MOQ: 500 Meters
Place of Origin
Jiangsu, China
Brand Name
Boan
Model Number
Flat TPS Cable
Type
Insulated
Application
Other, Installation
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
PVC
Product Description

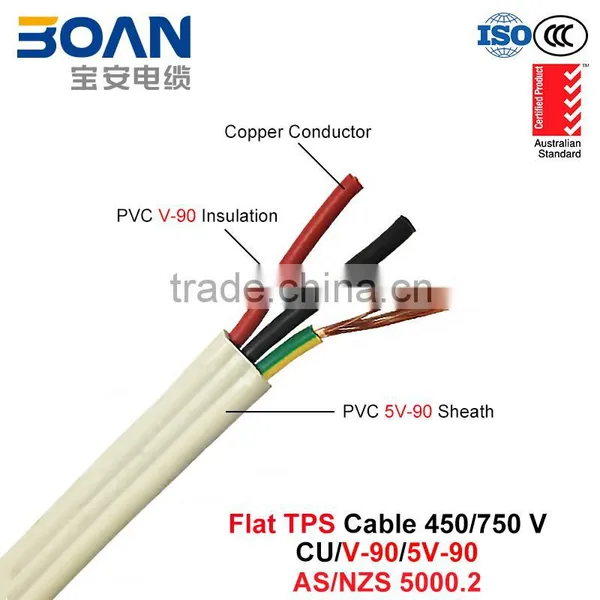

Flat TPS Cable, 450/750 V, Cu/PVC/PVC Flat Cable(AS/NZS 5000.2)
Application
Easi-peel sheath for general wiring, unenclosed, enclosed in conduit, in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage.
Suitable for lighting and applications not requiring earth.
Technical Data
STANDARD: AS/NZS 5000.2
VOLTAGE: 450/750V
CONDUCTOR: Copper
INSULATION: PVC, V-90
Red, Black
SHEATH: PVC, 3V-90
NORMAL OPERATING: TEMP.75 °C
| Flat TPS 450/750 V 2/C | |||
| Size | Conductor Structure | Overall Diameter | Cable Weight |
| mm2 | (No./mm) | Major x Minor | kg/km |
| mm | |||
| 1 | 1/1.13 | 6.7 x 4.3 | 55 |
| 1.5 | 7/0.50 | 7.4 x 4.7 | 70 |
| 2.5 | 7/0.67 | 9.0 x 5.5 | 105 |
| 4 | 7/0.85 | 10.6 x 6.5 | 165 |
| 6 | 7/1.04 | 11.8 x 7.1 | 215 |
| 10 | 7/1.35 | 14.4 x 8.5 | 350 |
| 16 | 7/1.70 | 16.7 x 9.7 | 435 |
| Flat TPS 450/750 V 2/C+E | |||
| 1 | 1/1.13 | 4.6 x 9.4 | 90 |
| 1.5 | 7/0.50 | 4.7 x 10.2 | 110 |
| 1.5 | 1/1.38 | 4.7 x 9.9 | 115 |
| 2.5 | 1/1.78 | 5.5 x 12.1 | 175 |
| 2.5 | 7/0.67 | 5.5 x 12.4 | 165 |
| 4 | 7/0.85 | 6.5 x 14.0 | 200 |
| 6 | 7/1.04 | 7.1 x 15.2 | 285 |
| 10 | 7/1.35 | 8.5 x 18.6 | 425 |
| 16 | 7/1.70 | 9.7 x 21.4 | 610 |
| Flat TPS 450/750 V 3/C | |||
| 1 | 1/1.13 | 9.1 x 4.3 | 75 |
| 1.5 | 7/0.50 | 10.2 x 4.7 | 100 |
| 2.5 | 7/0.67 | 12.4 x 5.5 | 160 |
| 4 | 7/0.85 | 14.7 x 6.5 | 245 |
| Flat TPS Cable 450/750 V 3/C+E | |||
| 1 | 1/1.13 | 11.5 x 4.3 | 95 |
| 1.5 | 7/0.50 | 12.9 x 4.7 | 125 |
| 2.5 | 7/0.67 | 15.9 x 5.5 | 200 |
| 4 | 7/0.85 | 18.1 x 6.5 | 280 |
| 6 | 7/1.04 | 20.0 x 7.1 | 365 |
| 10 | 7/1.35 | 24.5 x 8.5 | 545 |
| 16 | 7/1.70 | 28.7 x 9.9 | 830 |
| Flat TPS 450/750 V 4/C | |||
| 1 | 1/1.13 | 11.5 x 4.3 | 95 |
| 1.5 | 7/0.50 | 12.9 x 4.7 | 125 |
| 2.5 | 7/0.67 | 15.9 x 5.5 | 220 |
| 4 | 7/0.85 | 18.9 x 6.5 | 320 |
