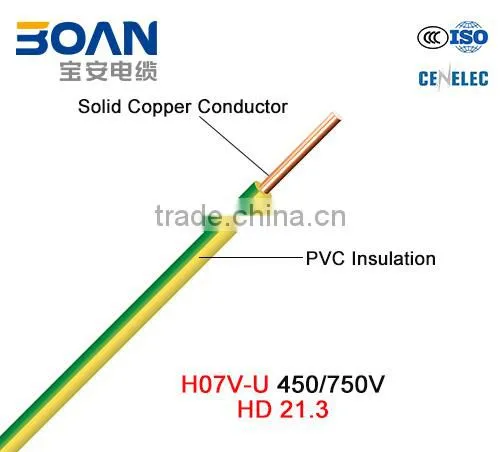

Help CenterH07V-U Electric Cable Wire 450/750V Sloid Cu/PVC HD 21.3
Related Products
-
H05V2V2-F Electric Wire 300/500V Flexible Cu/PVC/PVC (HD 21.5)US$ 0.1 - 1MOQ: 500 Meters -
Nya Electric Cable Wire 450/750V Cu/PVC (VDE 0281-3)US$ 0.1 - 1MOQ: 500 Meters
-
2491X Electric Wire 450/750V Flexible Cu/PVC BS 6004US$ 0.1 - 1MOQ: 500 Meters
-
Nyaf Electric Wire 450/750V Class 5 Cu/PVC (VDE 0281-3)US$ 0.1 - 1MOQ: 500 Meters
-
H07z-R Electric Wire 450/750V Cu/Lszh LS0H CableUS$ 0.2 - 2MOQ: 500 Inches
Construction / Materials
Recommended application
| Nominal cross section | No. of individual wires | Diameter of conductor nom. | Resistance at 20 °C max. | Wall thickness of insulation | Outer diameter nom. | Weight approx. |
| mm2 | mm | Ω/km | mm | mm | kg/km | |
| H05V-U | ||||||
| 0.5 | 1 | 0.8 | 36.0 | 0.6 | 2.0 | 8.5 |
| 0.75 | 1 | 1.0 | 24.5 | 0.6 | 2.2 | 11.5 |
| 1 | 1 | 1.2 | 18.1 | 0.6 | 2.4 | 14.0 |
| H07V-U | ||||||
| 1.5 | 1 | 1.4 | 12.1 | 0.7 | 2.9 | 21 |
| 2.5 | 1 | 1.8 | 7.41 | 0.8 | 3.5 | 32 |
| 4 | 1 | 2.3 | 4.61 | 0.8 | 4.0 | 48 |
| 6 | 1 | 2.8 | 3.08 | 0.8 | 4.5 | 68 |
We are glad to offer free samples for testing, please feel free to talk with us.
1. Are you a manufacturer?
Yes, we are a manufacturer. Jiangsu Baoan Cable Co., Ltd. Is factory. Mainly responsible for the import and export business.
2. What are your main products?
Our main products are ACSR, AAC, PVC Cable, XLPE Cable, Building Wire, Control Cable ect.
3. Is the quality of your products guaranteed?
Yes,the quality of our products is highly guaranteed. Our workshops are equipped with advanced machines and test equipment, and our workers are highly experienced and committed. We strictly follow the international standards and customers' requirements. The samples during production of your orders are available on demand. We will do the inhouse inspection for every batch of products. You can also send your inspection team to our site.
4. How can I get samples?
Please tell us the detailed information of products you need. Then we will check our stock. If we don't have the exact model you need, please consider whether the similar model is OK for you.
5.What is your waranty terms?
The waranty period of all of our products is one year after they arrived at the destination port. Disclaimer:the waranty terms don't cover the failures caused by violence handling,installation and operation.
